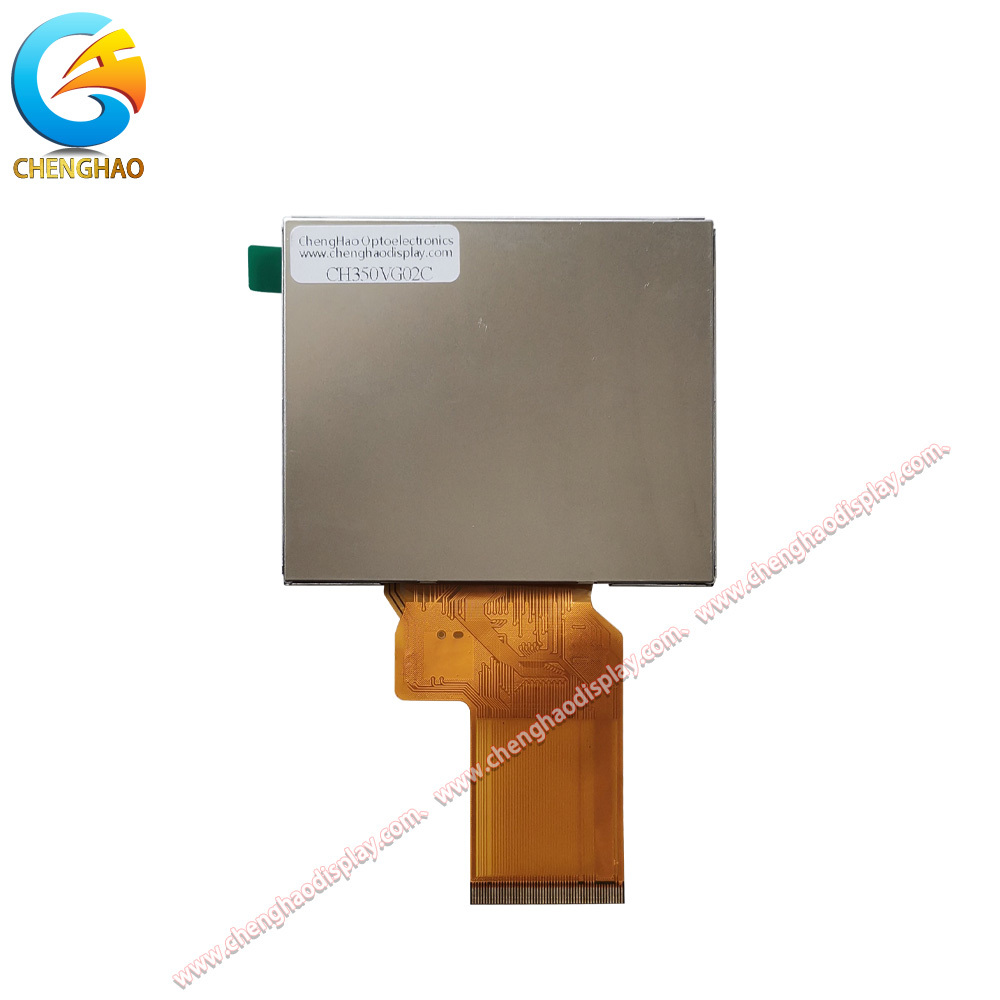

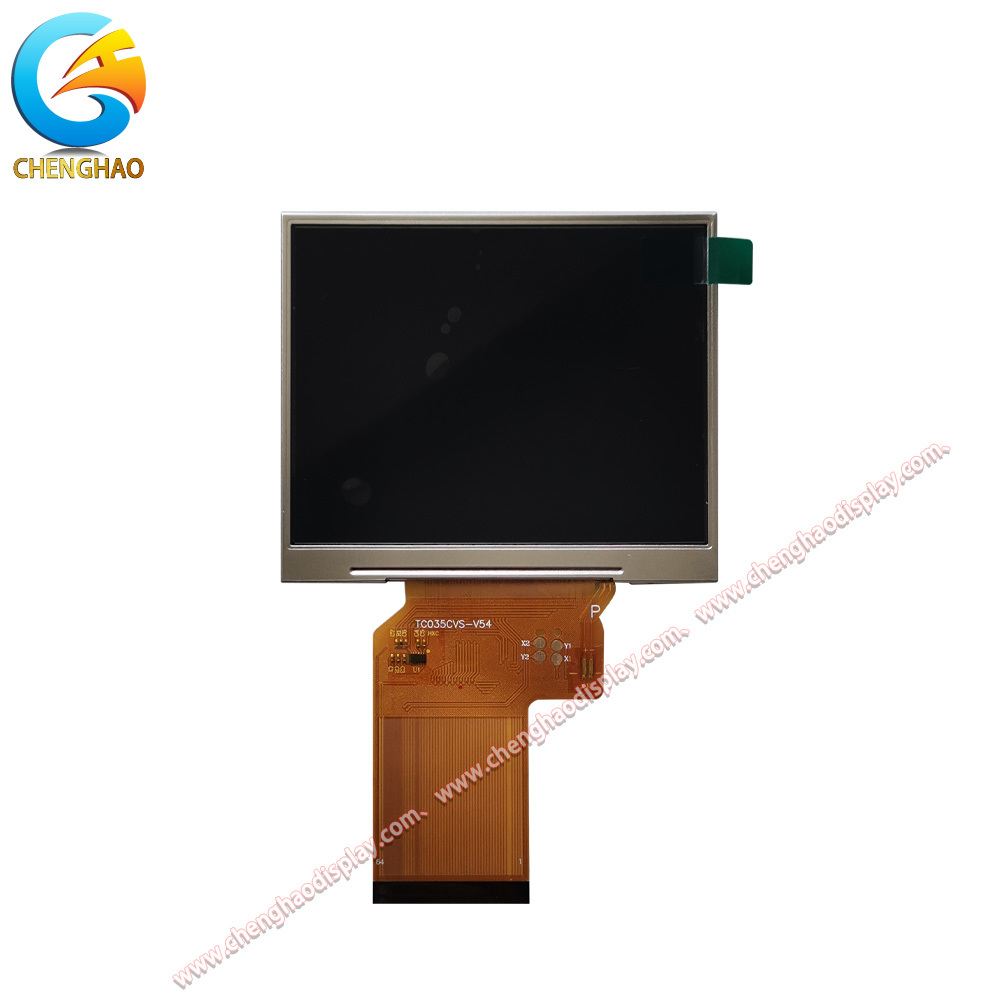

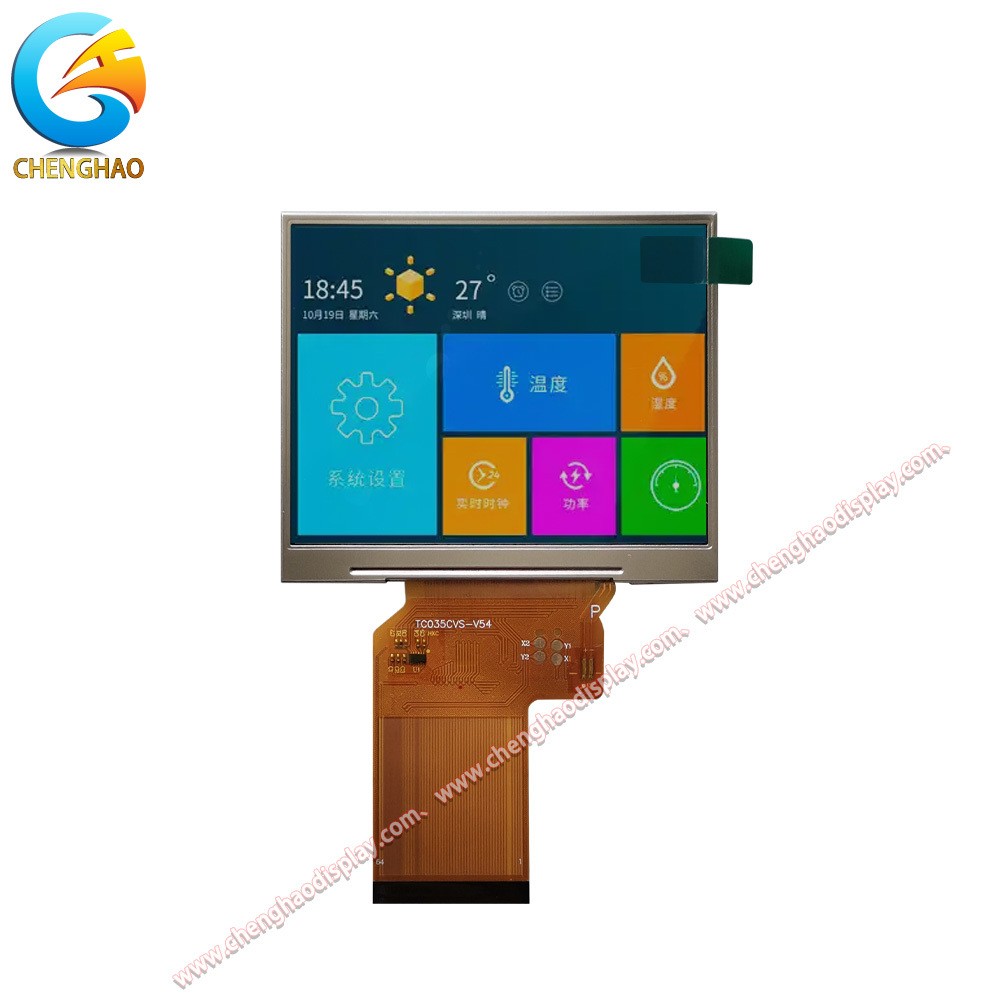

3.5 Inch IPS TFT LCD Display Module 640x480 SPI High Brightness for Industrial HMI

Product Description

This 3.5 inch IPS TFT LCD display module delivers 640 x 480 resolution with an SPI interface. It provides a typical brightness of 1000 cd/m2 for sunlight readable performance, an all view direction of 80/80/80/80, and a wide operating temperature from -20 to +70 degrees Celsius. The module adopts an IPS transmissive normally black display mode and uses a 54 pin FPC with no touch configuration. Storage temperature ranges from -30 to +80 degrees Celsius. The compact 76.9 by 63.9 mm outline fits industrial HMI panels, outdoor kiosk terminals, and instrumentation displays where stable readability and reliable long term supply are essential. Custom cover glass options and AG surface treatment are available on request for customer projects.

Product Features

• High brightness of 1000 cd/m2 delivers sunlight readable performance for outdoor kiosk and HMI use.
• IPS transmissive normally black mode with 80/80/80/80 viewing direction keeps image quality consistent from every angle.
• Wide operating temperature from -20 to +70 degrees Celsius ensures reliable operation in harsh environments.
• Compact 3.5 inch outline with a 54 pin SPI interface simplifies integration into space constrained control terminals.

Product Drawing

Detailed Specifications

Customized Introduction

Chenghao provides customized display module services for TFT LCD modules, mono LCD displays, color OLED modules, and mono OLED modules. Customization covers FPC layout and pin configuration, interface selection including SPI, MCU, RGB, MIPI, LVDS, EDP and HDMI, brightness levels from standard 200 to 300 cd/m2 up to high brightness above 500 cd/m2, capacitive touch, resistive touch, or no touch options, anti glare surface treatment, and glass cover design with customized thickness, shape, color, and silk printing. This 3.5 inch IPS module can be adapted with custom cover glass and AG treatment, and similar customization is available for customer projects with short lead time and stable mass production quality.

Application Cases

• Outdoor kiosk terminals: The 1000 cd/m2 brightness keeps the interface readable under direct sunlight.
• Industrial HMI panels: The wide viewing direction and temperature range support reliable operation on factory floors.
• Instrumentation displays: The SPI interface and compact outline simplify integration into measurement and control equipment.
