2.8inch IPS Lcd Display 240x320 SPI MCU RGB Interface Color Lcd Module

Product Description:

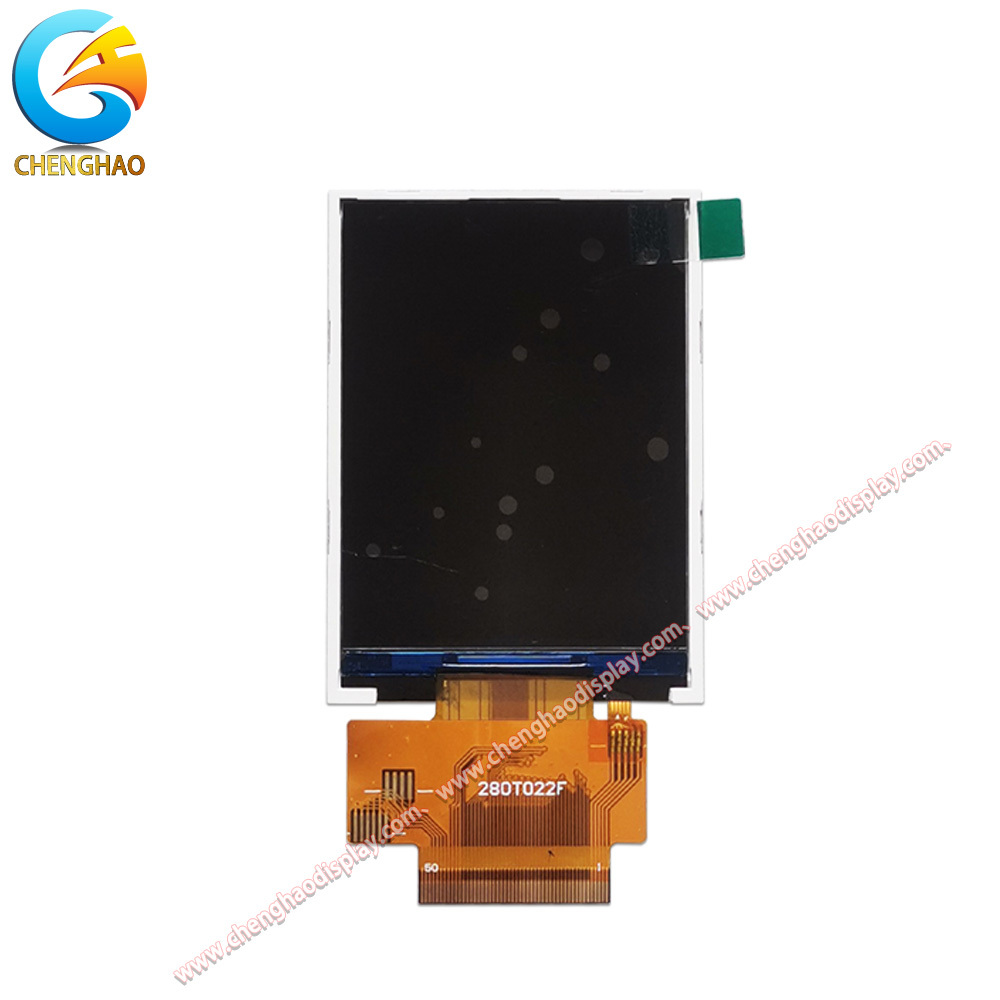

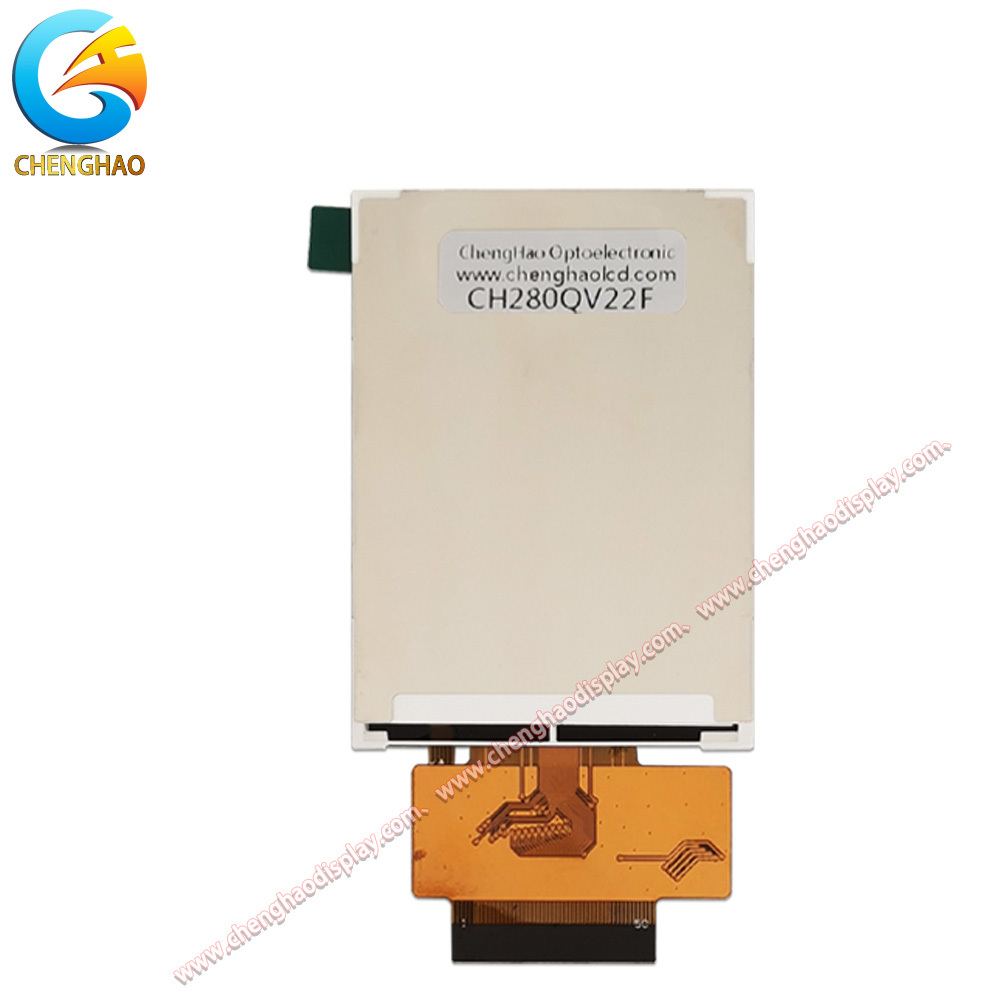

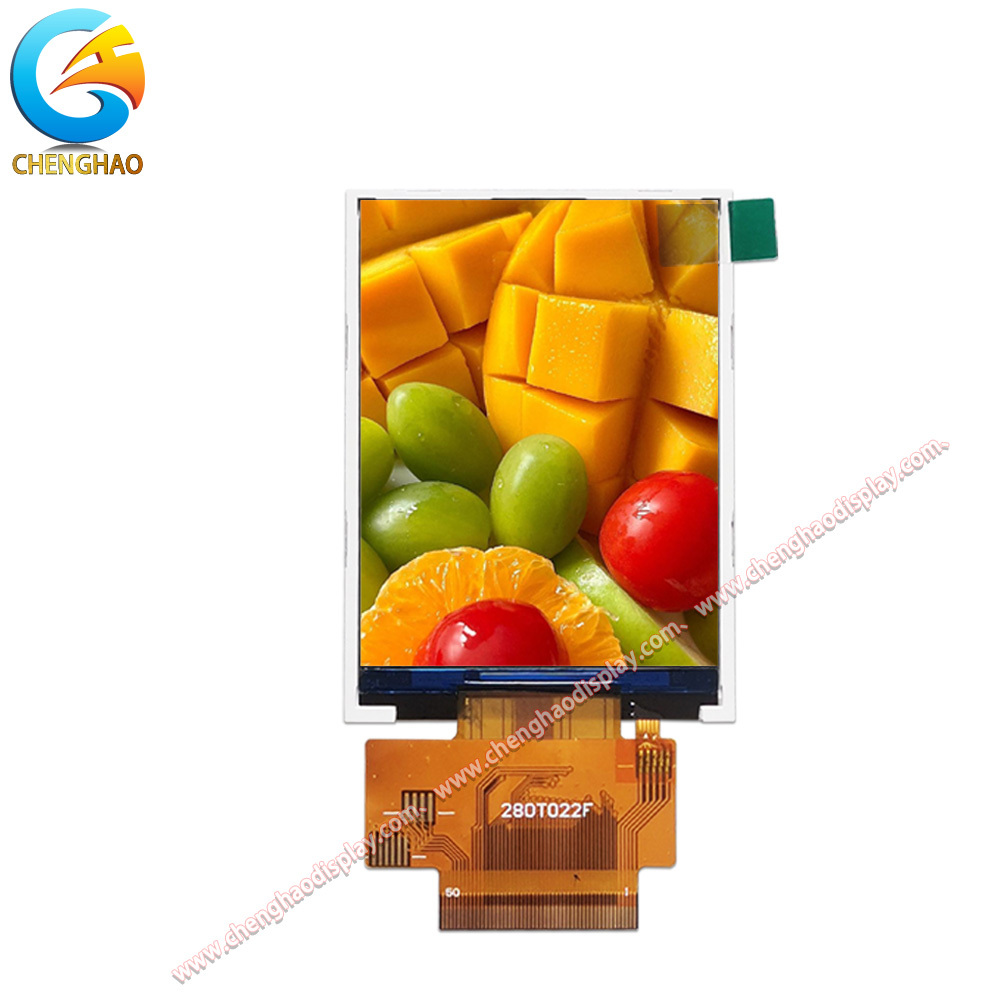

The CH280QV22F is a high-performance 2.8-inch TFT LCD display module designed for a variety of embedded applications. With a resolution of 240x320 pixels, the module provides clear and detailed image display, suitable for devices that require high visual quality. It uses IPS (In-Plane Switching) technology to ensure wide viewing angle color performance, allowing users to get a consistent visual experience at different angles. The display module measures 50mm x 69.2mm x 2.4mm and has a compact design, making it easy to integrate into a variety of devices. The CH280QV22F has a brightness of up to 300 cd/m², suitable for use in different indoor environments to ensure the readability of information. Its operating temperature range is -20℃ to +70℃, and its storage temperature can reach -30℃ to +80℃, allowing it to operate stably under various environmental conditions.

The CH280QV22F supports multiple interface types, including SPI, MCU, and RGB, to facilitate connection with different controllers. This flexibility enables the module to be widely used in many fields such as industrial control, medical equipment, smart home and IoT devices. Whether it is displaying real-time data in industrial automation systems or providing user interaction interfaces in smart home products, CH280QV22F can meet the needs of different applications. In addition, Chenghao Optoelectronic also provides customers with customized services, which can adjust FPC shape, backlight brightness and interface type according to specific needs. This customization capability enables CH280QV22F to better adapt to customers' specific application scenarios and provide users with greater flexibility and convenience. In short, CH280QV22F has become an indispensable display solution in various industries with its excellent performance and diverse application potential.

Features:

• Display technology: CH280QV22F adopts IPS (In-Plane Switching) technology, providing wide viewing angles and excellent color reproduction, ensuring a clear visual experience from different angles.
• Resolution: The module has a resolution of 240x320 pixels, capable of displaying delicate images and texts, suitable for a variety of application scenarios.
• Brightness: The brightness is up to 300 cd/m², ensuring good readability under various indoor lighting conditions, suitable for indoor and outdoor use.
• Operating temperature range: CH280QV22F has an operating temperature range of -20℃ to +70℃, enabling stable operation in a variety of environmental conditions, suitable for industrial and outdoor applications.
• Storage temperature range: The storage temperature can reach -30℃ to +80℃, ensuring that it is not affected by temperature changes during storage, suitable for long-term storage.
• Interface type: Supports multiple interface types, including SPI, MCU and RGB, providing flexible connection options and convenient compatibility with different controllers.
• Module size: The display module measures 50mm x 69.2mm x 2.4mm, with a compact design that facilitates integration into a variety of devices, especially for applications with limited space.
• Customization options: Chenghao Optoelectronic offers a variety of customization services, including FPC shape, backlight brightness, and touch panel design, to meet customers' specific needs and application scenarios.

Technical Parameters:

Applications:

The CH280QV22F display module is widely used in multiple industries due to its excellent performance and versatility. First, in the field of industrial control, the module can display the device status and operation interface in real time, helping operators monitor and manage production processes. Its high temperature resistance and wide operating temperature range make it suitable for use in harsh industrial environments.

Second, in medical equipment, the CH280QV22F can be used in monitors, diagnostic equipment, etc., providing clear visual information to ensure that doctors and caregivers can quickly obtain important data.

In the field of smart home, the module can be used as a display screen for smart home control panels to display information such as temperature, humidity and security status to enhance user experience.

In addition, the CH280QV22F is also suitable for IoT devices, displaying real-time data in smart sensors and controllers, and supporting the interconnection of smart homes and industrial automation.

Finally, in consumer electronics products such as portable game consoles and smart watches, the CH280QV22F provides a user-friendly operation interface, enhancing the interactivity and visual appeal of the product.

In short, CH280QV22F has become an indispensable display solution in many industries with its high resolution, wide viewing angle and multiple interface options.

Support and Services:

The CH280QV22F display module not only excels in technical performance, but also provides a series of comprehensive support and services to ensure customer satisfaction and convenience during use. First of all, Chenghao Optoelectronic provides a 13-month product warranty service for all customers who purchase the product to ensure that any problems encountered during use can be solved in a timely manner.

In terms of technical support, the company's professional technical team is always ready to provide customers with remote online support to help solve technical problems encountered during product testing or use. Whether it is installation guidance or troubleshooting, customers can get timely help to ensure the normal operation of the equipment.

In addition, Chenghao Optoelectronic promises to conduct strict quality inspections and tests on all products before shipment to ensure that each CH280QV22F module meets high standards of quality requirements. The company also provides relevant certification documents such as CE and RoHS to meet customers' needs for product compliance.

In order to improve customer satisfaction, Chenghao Optoelectronic has also established long-term cooperative relationships with a number of express logistics companies, which can provide customers with efficient logistics services and enjoy discounts in bulk orders.

In short, the support and service system of CH280QV22F is designed to provide customers with comprehensive protection to ensure that they can get the best experience and support when using the product.

FAQ:

Q: What is the brand name of this TFT LCD Display?

A: The brand name is Chenghao Optoelectronic.

Q: What is the model number of this TFT LCD Display?

A: The model number is CH280QV22F.

Q: What certifications does this TFT LCD Display have?

A: It has certifications including CE, ISO9001, RoHS, and SGS.

Q: What is the minimum order quantity for this TFT LCD Display?

A: The minimum order quantity is 100 pieces.

Q: What are the packaging details for this TFT LCD Display?

A: All the products are packed in the right way to keep them safe. For small sizes, we use tray + carton, and for bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.

Q: What is the delivery time for this TFT LCD Display?

A: The delivery time is typically 3 to 7 days.

Q: What are the payment terms accepted for this TFT LCD Display?

A: The accepted payment terms are T/T, AliPay, and PayPal.

Q: What is the supply ability of this TFT LCD Display?

A: The supply ability is 50,000,000 pieces per month.
