240x320 IPS Lcd Display 2.8” 50 Pins Multi-interface Small Tft Screen Panel

Product Description:

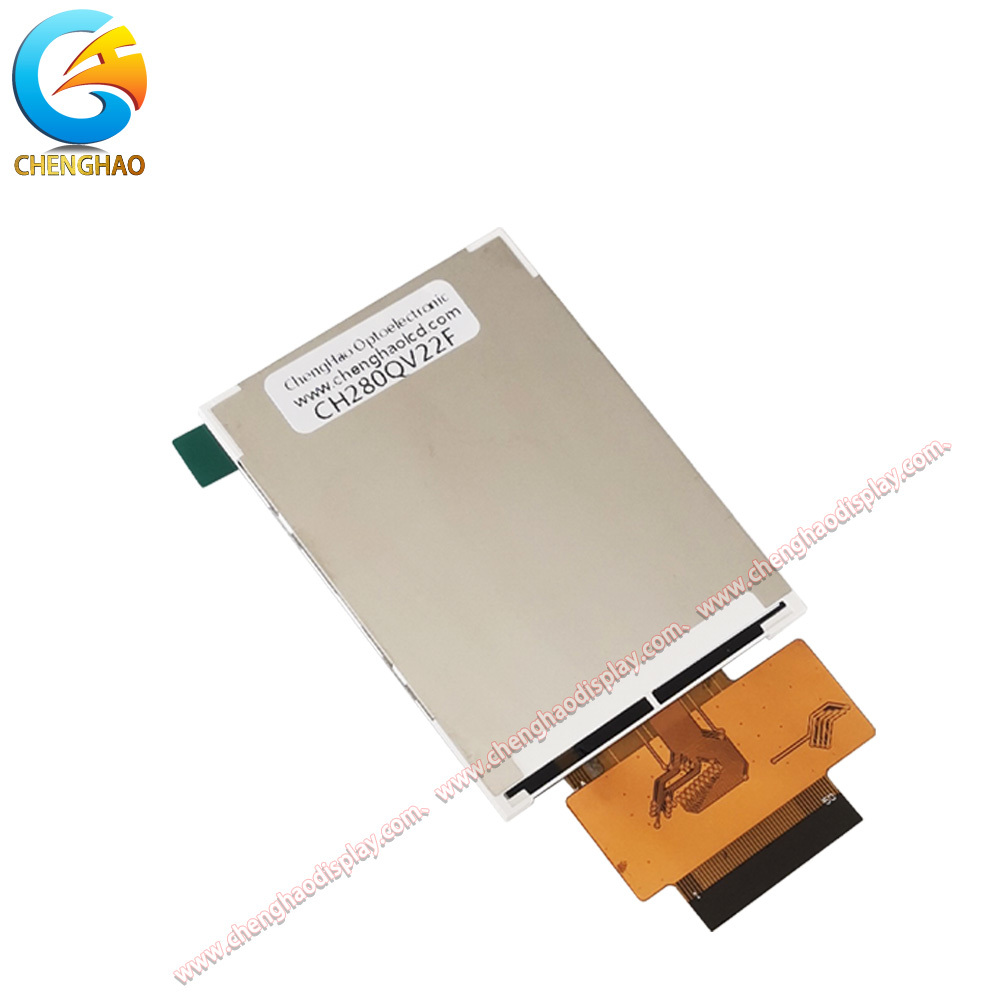

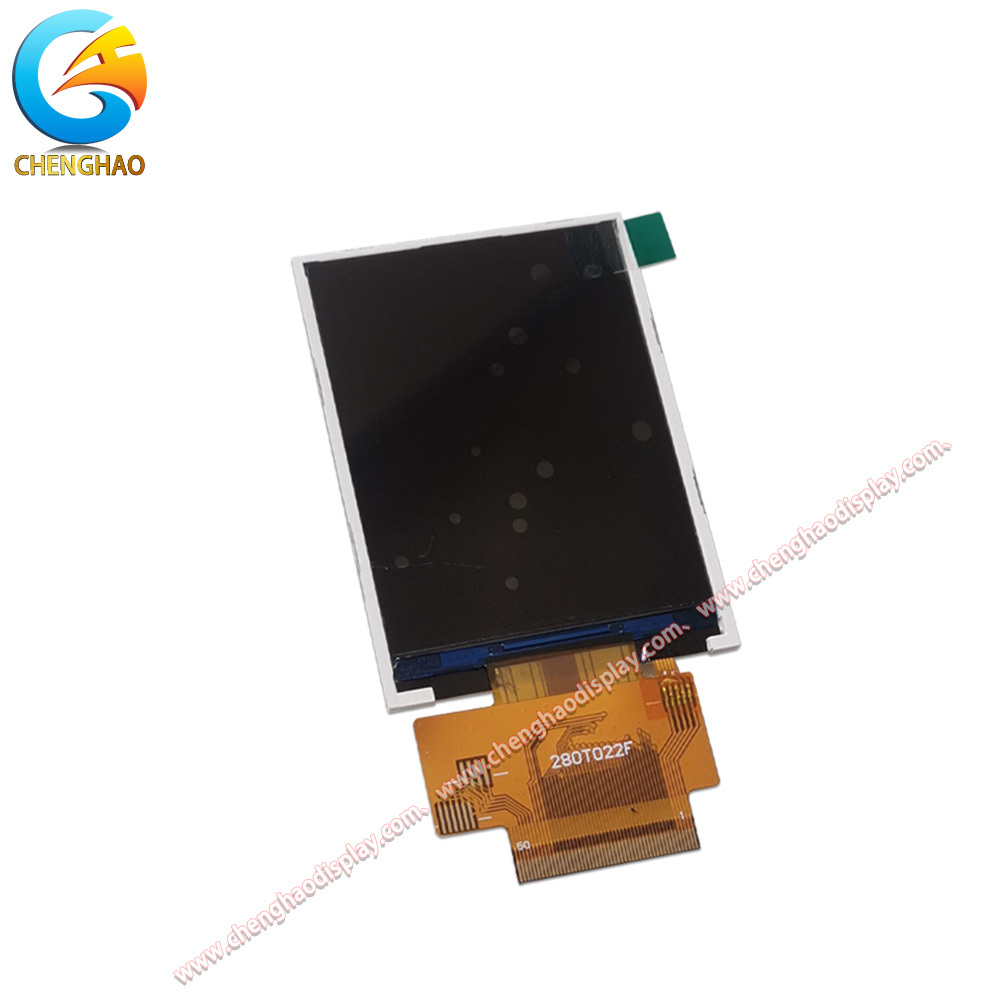

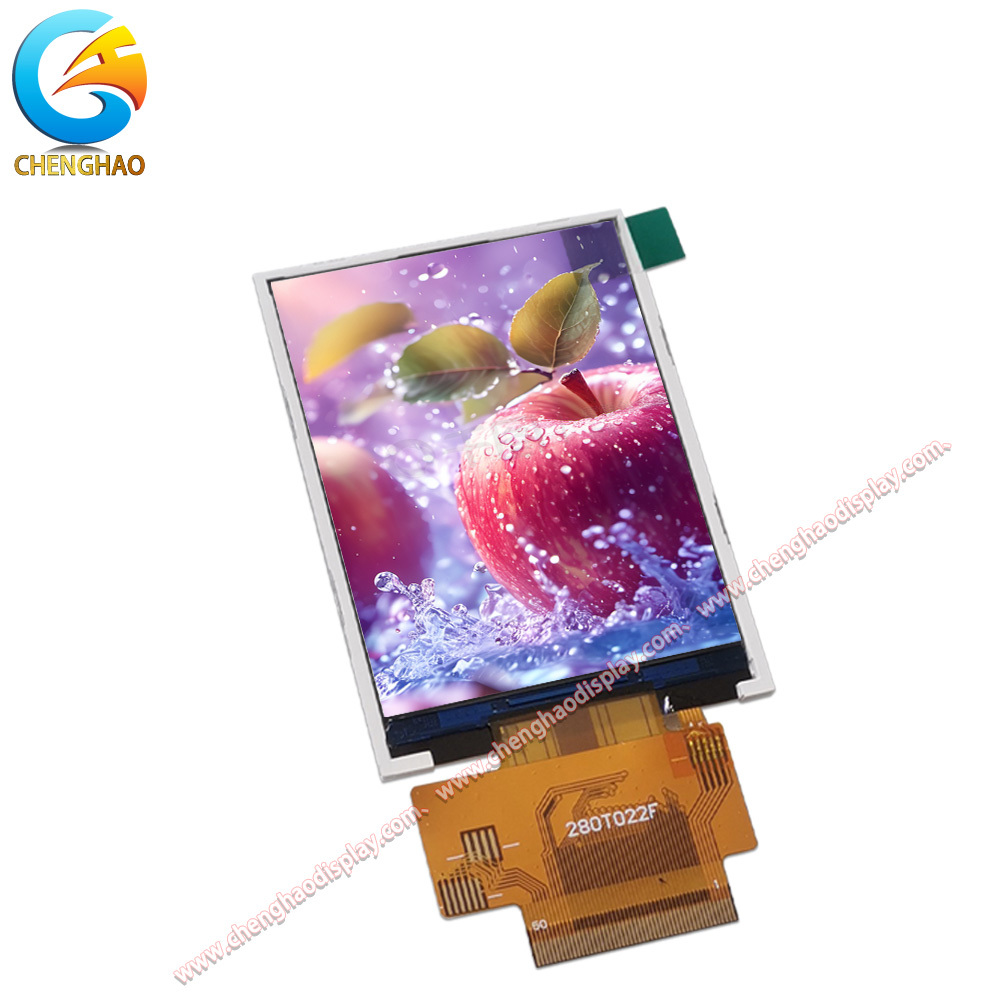

The CH280QV22F is a high-performance 2.8-inch TFT LCD display module with a resolution of 240x320, which can provide clear and delicate image display. The module adopts IPS technology and has excellent viewing angles, ensuring consistent color performance from all directions. Its brightness can reach 300 cd/m², which is suitable for use under various lighting conditions and ensures the comfort of user experience.

The display module has a size of 50mm x 69.2mm x 2.4mm, which is suitable for integration in compact devices. It supports SPI, MCU and RGB interfaces, which is convenient for connection with various controllers. The operating temperature range of the CH280QV22F is -20℃ to +70℃, and the storage temperature can reach -30℃ to +80℃, which enables it to operate stably under various environmental conditions.

In addition, Chenghao Optoelectronic provides customized services, which can modify the FPC shape, adjust the backlight brightness or design personalized touch panels according to customer needs to meet the needs of different application fields, such as industrial control, smart home and medical equipment, etc.

Features:

• Display Mode: CH280QV22F uses IPS (In-Plane Switching) technology, providing excellent color performance and wide viewing angle, ensuring clear visibility from all directions.
• Resolution: The module has a resolution of 240x320, which can display delicate image details and is suitable for a variety of application scenarios.
• Brightness: The module has a brightness of 300 cd/m², which can maintain good readability under different lighting conditions.
• Interface Type: Supports multiple interfaces, including SPI, MCU and RGB, which facilitates compatibility with different controllers.
• Operating Temperature Range: CH280QV22F has an operating temperature range of -20℃ to +70℃, suitable for use in a variety of environmental conditions.
• Storage Temperature Range: The storage temperature can reach -30℃ to +80℃, ensuring that the module is not affected by temperature during storage.
• Module Size: The display module has a size of 50mm x 69.2mm x 2.4mm, with a compact design suitable for embedded devices.
• Customization options: Chenghao Optoelectronic provides customization services, which can adjust FPC shape, backlight brightness, etc. according to customer needs to meet specific application requirements

Technical Parameters:

Applications:

The CH280QV22F is a versatile 2.8-inch TFT LCD display module that is widely used in multiple industries to meet the needs of different fields. Its high resolution and excellent color performance make it an ideal choice, especially in the following fields:

Industrial Control: In industrial automation and control systems, the CH280QV22F can be used to display device status, operation interface, and real-time data monitoring. Its high temperature resistance and wide operating temperature range (-20℃ to +70℃) enable it to operate stably in harsh industrial environments.

Medical Equipment: This display module is suitable for medical instruments such as monitors, diagnostic equipment, and portable medical devices. The clear display effect and high brightness ensure that doctors and caregivers can read important information quickly and accurately.

Smart Home: In smart home devices, the CH280QV22F can be used as a user interface to display home control information such as temperature, humidity, and security status. Its compact design makes it suitable for integration into various home products, such as smart speakers and home automation control panels.

Instrumentation: This module is also widely used in various types of instrumentation, such as weather stations, environmental monitoring equipment, and laboratory instruments. Its high resolution and wide viewing angle characteristics make data display more intuitive.

IoT devices: With the development of IoT technology, CH280QV22F can be used in various smart devices to provide real-time data display and user interaction interface. Its multiple interface types (SPI, MCU, RGB) enable it to easily connect with other IoT components.

In-vehicle applications: In automotive electronics, CH280QV22F can be used in in-vehicle displays to display navigation information, entertainment system interfaces, and vehicle status. Its high brightness and wide temperature range ensure readability under different driving conditions.

Consumer electronics: This module is also suitable for various consumer electronics products, such as portable game consoles, smart watches, and other small electronic devices, providing a user-friendly operating interface and rich visual experience.

In short, CH280QV22F has become an indispensable display solution in various industries with its excellent performance and diverse application areas.

Customization:

The CH280QV22F display module offers a variety of customization options to meet customers' specific needs and application scenarios. The following are the main customization contents of this product:

FPC shape and structure: According to the customer's equipment requirements, the flexible printed circuit board (FPC) of the CH280QV22F can be redesigned to ensure that it perfectly fits the installation environment. This flexibility enables the module to be used in various space-constrained devices.

Backlight brightness adjustment: Customers can choose different backlight brightness according to the actual use environment. The backlight brightness of the CH280QV22F can reach up to 300 cd/m², which is suitable for use in different indoor lighting conditions to ensure that the display content is clearly visible.

Interface type definition: The module supports multiple interface types, including SPI, MCU, and RGB. Customers can choose the appropriate interface type according to the needs of their control system to achieve the best compatibility and performance.

Touch panel design: For applications that require touch interaction, the CH280QV22F can be equipped with a customized touch panel. Customers can choose capacitive or resistive touch solutions to meet different usage needs and user experience.

Through these customization options, CH280QV22F can not only meet the needs of various industries, but also provide customers with personalized solutions to ensure its best performance in specific applications.

FAQ:

Q: What is the brand name of this TFT LCD Display?

A: The brand name of this TFT LCD Display is Chenghao Optoelectronic.

Q: What is the model number of this TFT LCD Display?

A: The model number of this TFT LCD Display is CH280QV22F.

Q: What certifications does this TFT LCD Display have?

A: This TFT LCD Display is certified with CE, ISO9001, Rose, and SGS.

Q: What is the minimum order quantity for this TFT LCD Display?

A: The minimum order quantity for this TFT LCD Display is 100 pieces.

Q: What are the packaging details for this TFT LCD Display?

A: All the products are packed in the right way to keep them safe. For small sizes of products, we use tray + carton, and for bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.
