1920x1080 FHD TFT Screen Display 13.3 Inch EDP Interface For Car Central Control

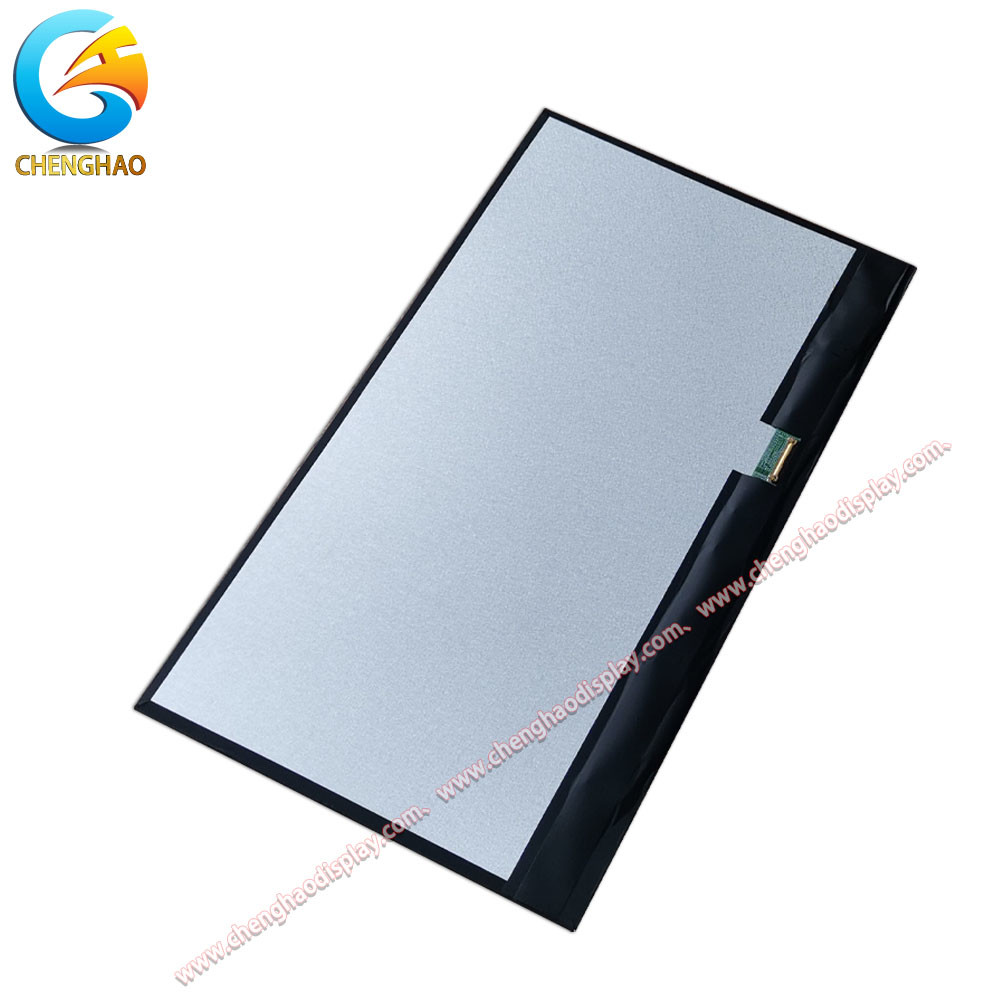

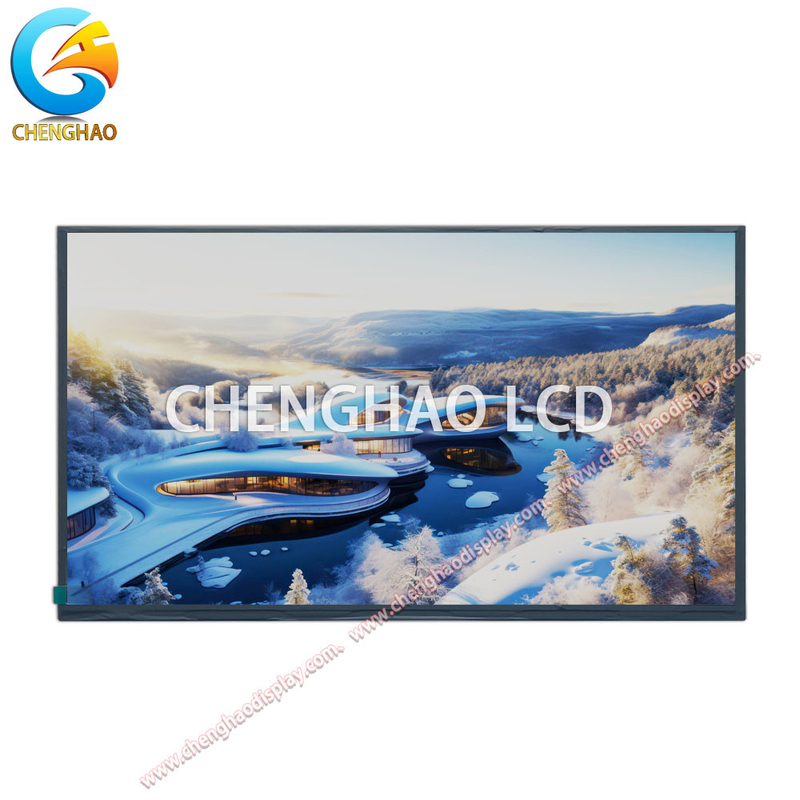

The ChengHao Display model CH133FH01A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). It uses amorphous silicon TFT as a switching device. The model consists of a TFT LCD panel, a driving IC, a back-light, and Connector that work together to provide a seamless display experience.
This display module is designed to deliver crisp and vivid visual experiences. With a diagonal measurement of 13.3 inches, it can project 16M colors and 1920*1080 pixels of full-color images by R.G.B. signal input. The IPS display technology ensures that the content is easy to view at practically any angle.
The ChengHao Display model CH133FH01A boasts high-temperature endurance capabilities, making it a durable display for industrial and commercial applications. It can operate normally in temperatures ranging from -20°C to +70°C and can be stored normally in temperatures ranging from -30°C to +80°C. In addition, the maximum brightness of the screen can reach 330 cd/m2, which can provide clear visibility in indoor environments. Of course, the screen brightness can be customized.
The display supports EDP interface and compliance with RoHS & Halogen free standards.



ChengHao Optoelectronic's CH133FH01A  is a customized 1920x1080 full high definition liquid crystal display (LCD) screen. This display module has the following features:


• Free Viewing Direction

The use of In-Plane Switching (IPS) display technology supports an 89/89/89/89 viewing angle in CH133FH01A. This means that users can easily read the screen from various viewing angles without worrying about blurred vision.


• Support for Full High Definition

The TFT LCD panel in CH133FH01A supports a resolution of 1920 by 1080, which provides users with a clear view while reading the screen.


• Support for Wide Temperature Environment

The CH133FH01A model has a wide temperature tolerance design, enabling it to operate smoothly in temperatures ranging from -20 to +70 degrees Celsius. This feature makes the display module highly adaptable to extreme environmental conditions throughout the year, which is vital in industries that require such devices.





• Extended Service Life

The backlight component of a liquid crystal display (LCD) is critical to its lifespan. The CH133FH01A has a backlight component with a service life of up to 50,000 hours, which can substantially improve the display's durability.


• Bright Colors

The CH133FH01A can display up to 16M colors through R.G.B. signal input, which can produce more realistic images and videos.


• Support for EDP Interface

The Enhanced Display Port (EDP) interface has several advantages over other interfaces, such as high bandwidth, stability, low power consumption, and anti-interference. CH133FH01A uses this interface to communicate and interconnect with external gadgets, which significantly enhances its overall performance in industrial applications.

The 13.3 inch TFT LCD Display Module is a reliable visual display unit for various devices and systems that require high-quality video output. It is designed to provide detailed and vibrant images, making it an ideal module for a wide range of industrial, medical, and consumer applications.


Display Mode: IPS/Transmissive/Normally Black
The module offers versatile display modes to meet the specific needs of different applications.
The IPS (In-Plane Switching) mode provides wider viewing angles and better color accuracy, making it an ideal choice for multimedia and medical applications.
Number of Dots: 1920*1080
The module boasts a resolution of 1920*1080 pixels, providing clear and sharp images and videos.

Viewing Direction: 89/89/89/89
The module offers a wide viewing angle of 89 degrees in all directions, making it easy to see the display from any position.

Luminance: 330 cd/m2
The module has a high luminance level of 330 cd/m2, ensuring that the display remains visible even in bright environments.

Contrast: 800
The module offers a high contrast ratio of 800, enhancing the visual experience and making colors more vibrant and vivid.

Color: 16M
The module supports 16 million colors, enabling it to produce lifelike and detailed images and videos.

Pin Number: 30 pins
The module is equipped with 30 pins, providing a stable and reliable connection to the device or system.

Operating Temperature: -20 ~ +70 ℃
The module can operate in temperatures ranging from -20 to +70 degrees Celsius, ensuring that it can work in a variety of environments and conditions.

Storage Temperature: -30 ~ +80 ℃
The module can be stored in temperatures ranging from -30 to +80 degrees Celsius, ensuring that it remains functional even when not in use.
