320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | No Moq | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | TT or Others |
| Supply Ability : | 20000000 pcs/month |
| Place of Origin: | China，Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE 、RoHS、FCC | Model Number: | CH101WX05A-CTD |
|
Detail Information |
|||
| Product Name: | Thin Film Transistor Module | Display Type: | 10.1”TFT+CTP |
|---|---|---|---|
| CTP IC: | GT911 | Contrast Ratio: | 800:1 |
| Brightness: | 700 Cd/m2 (optional) | Operating Temperature: | -20 ~ +70 ℃ |
| Module Outline Size: | 246.16*159*5.8 Mm | Viewing Angle: | 80/80/80/80 |
| LCM Connector: | FH26-31S-0.3SHW | ||
| High Light: | 10.1 Inch Thin Film Transistor Screen,1280*800 Resolution IPS LCD Display,Thin Film Transistor IPS LCD Display |
||
Product Description

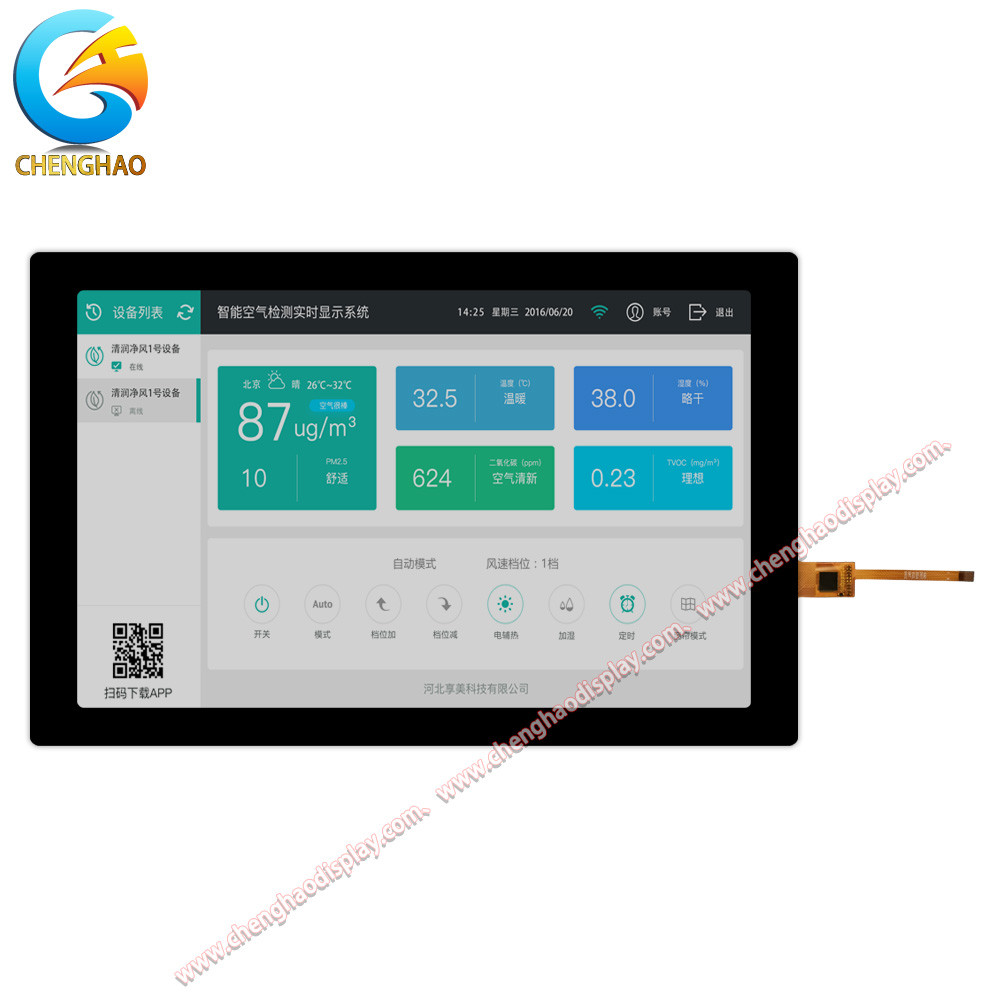

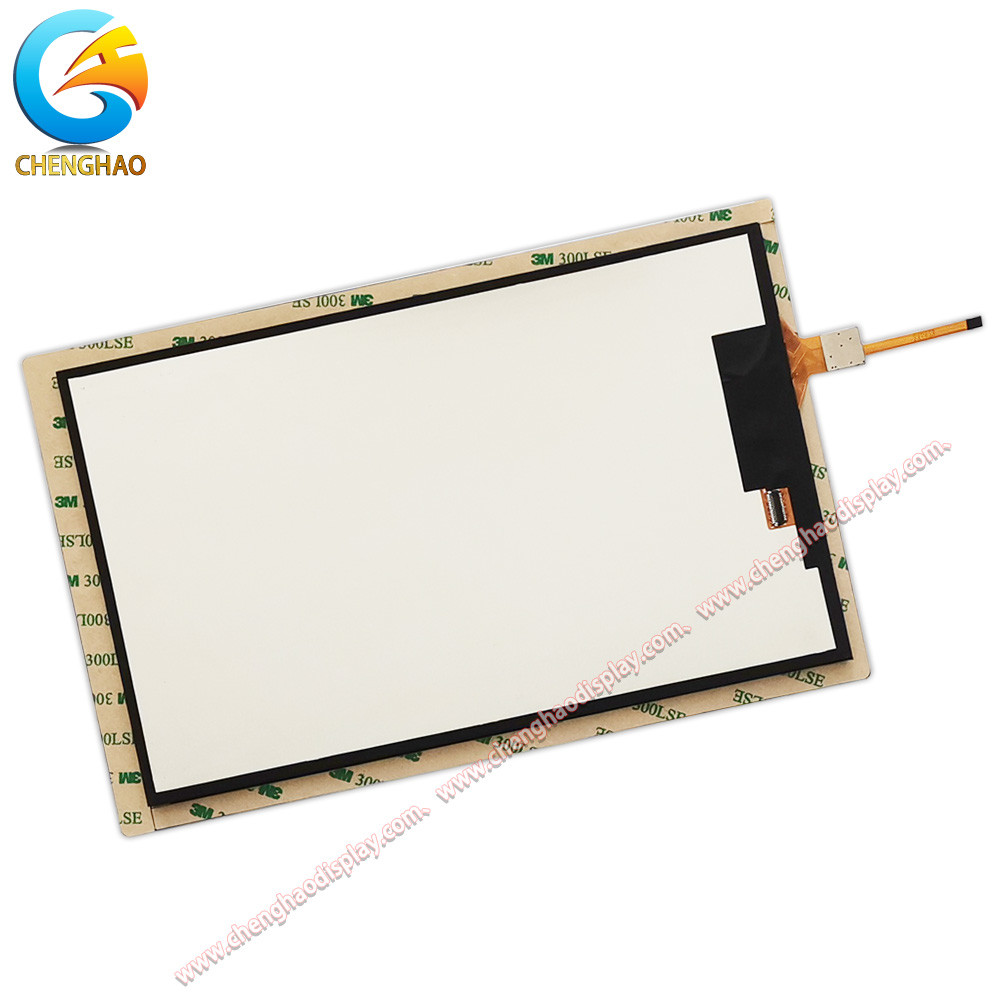

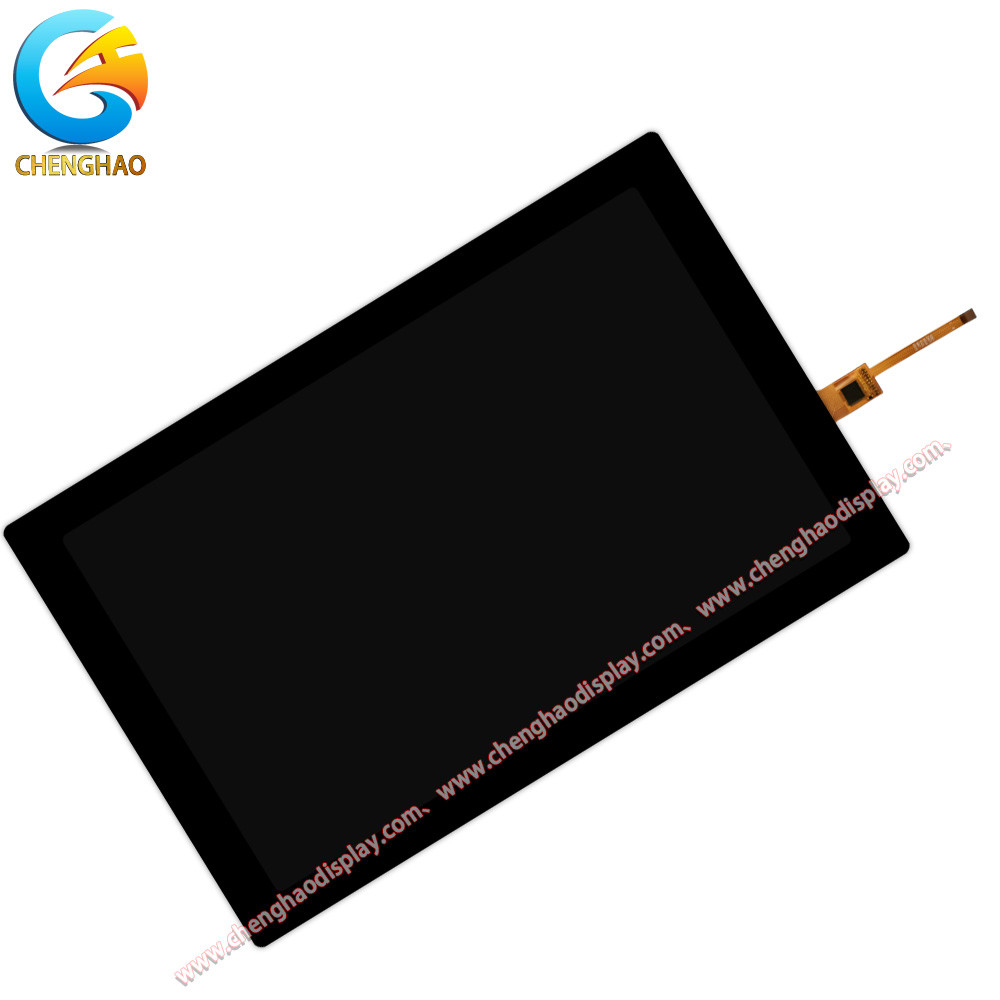

Our Thin Film Transistor Module is a touch tft displays that features a TFT Liquid Crystal Capacitive Screen with a high contrast ratio of 800:1. Its module outline size is 246.16*159*5.8 mm, and it operates at a temperature range of -20 ~ +70 ℃. The Touch Panel Type is Capacitive, and it is covered by a 12-month warranty.
Chenghao Optoelectronic provides Thin Film Transistor Module (Model Number: CH101WX05A-CTD) with no minimum order quantity (Moq) requirement and different certifications like CE, RoHS, and FCC. This product is manufactured in Shenzhen, China, and packaged with tray + carton or foam slot + carton to ensure safe delivery. It can be used as a touch TFT, a TFT Liquid Crystal Capacitive Screen, or a touch LCD screen display. It has an LCM Connector of FH26-31S-0.3SHW and a brightness of 700 Cd/m2 (optional). The screen size is 10.1 Inch and the touch panel type is capacitive. It also has a touch panel interface of I2C. Delivery time is usually 3~7 Days and payment terms include TT or other options. The supply ability is up to 20000000 pcs/month.
| Module No | CH101WX05A-CTD |
| Resolution | 1280x800 dots |
| Viewing Angle | 80/80/80/80 |
| Luminance | 700 cd/m2 (Optional) |
| Touch Panel Interface | Capacitive |
| TP Interface | I2C |
Chenghao Optoelectronic, as a professional LCD manufacturer, can provide customers with customized services. Our engineers can redesign the display solution based on CH101WX05A-CTD Thin Film Transistor Module according to the actual needs of the customer's project and send the prototype to the customer. For example, for CH101WX05A-CTD, we can modify its FPC appearance (such as structure and shape), interface type ( We can provide SPI, MCU, RGB, MIPI, LVDS, HDMI and other interfaces), backlight brightness (we support brightness adjustment from 200 to 2800 nits), replace or disassemble the touch (CTP or RTP or No TP), add anti-glare, etc.; Of course, we can also design a completely new display solution and prototype it according to the customer's needs.
Keywords: touch tft, tft touch screen display, touch tft lcd, tft lcd capacitive
1. All of our shipping boxes meet the export hardness standards
2. All of our boxes will be padded with foam inside to prevent screen damage
3. Our product packaging adopts a large box with small boxes
4. The weight of each box does not exceed 3.5 kilograms, and the dimensions may vary depending on the standard. We will use pallets or wooden frames for the goods
The above packaging methods are all to prevent damage to the display module during transportation, and we can also package the goods according to the customer's wishes.
A1: The brand name is Chenghao Optoelectronic.
A2: The model number is CH101WX05A-CTD.
A3: It is made in China, Shenzhen.
A4: Certifications available include CE, RoHS, and FCC.
A5: There is no minimum order quantity.
