320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 1 Pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 7-15 working days | Supply Ability : | 300Kpcs/month |
| Place of Origin: | China,Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE、RoHS | Model Number: | CH200QV18B |
|
Detail Information |
|||
| Connector: | 50 Pins FPC | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Module Size: | 34.6(W)×47.8(H)×2.0(T) Mm | Driver IC: | ST7789 |
| Resolution: | 240*320 | Operating Temperature: | -20 ~ +70 |
| Display Type: | IPS TFT LCD | Size: | 2 Inch |
| Backlight Brightness: | 1000 Nits | ||
| High Light: | wide angle ips lcd panel,2 inch ips lcd panel,1000 nits display lcd ips |
||
Product Description

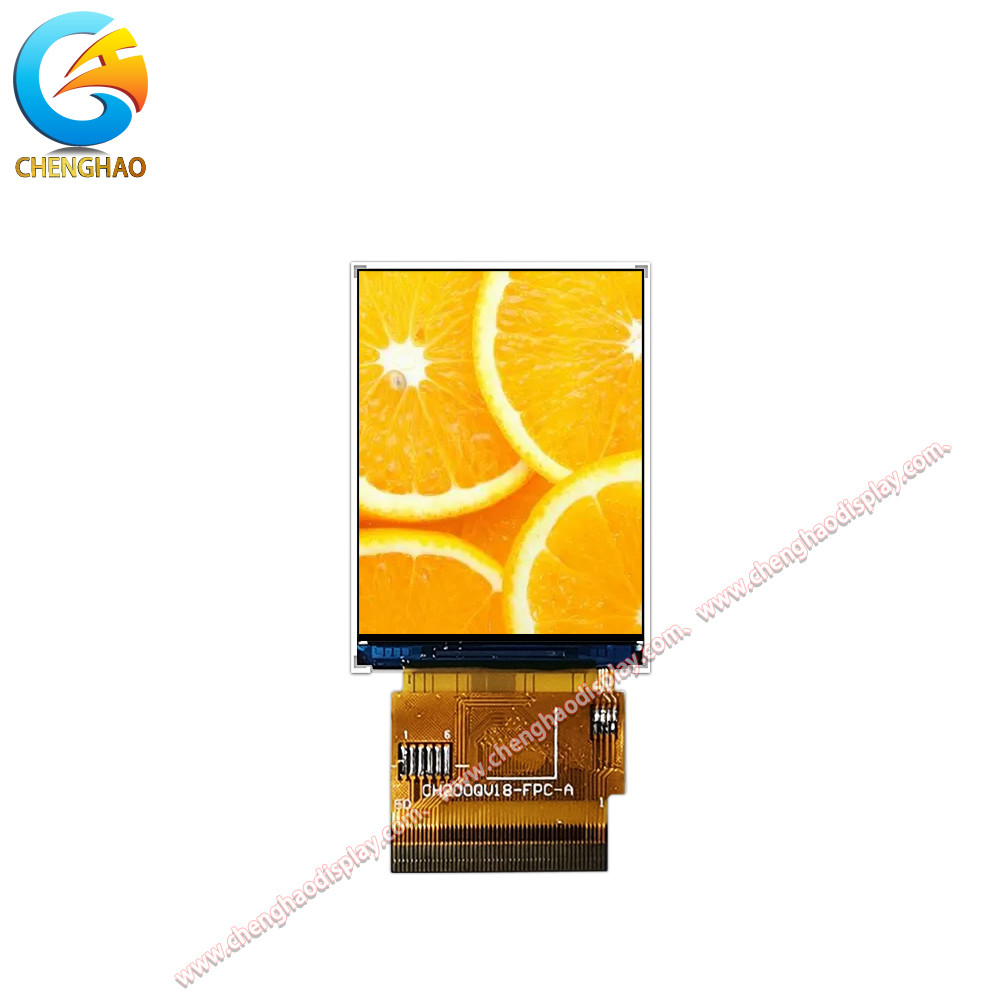

This CH200QV18B IPS LCD Display is a small and reliable LCD panel that has a viewing area of 31.2 (W) x 41.4 (H) Mm. The display is driven by ST7789 driver IC and has a display area of 2.0 inches. With a brightness of 1000 Cd/m2, this small LCD panel is perfect for your project. Moreover, the aspect ratio of 4:3 makes it suitable for a variety of applications. If you are looking for a small LCD screen or a small LCD display, this IPS LCD Display is an ideal choice for you.
| Parameter | Value |
|---|---|
| Brightness | 1000 Cd/m2 |
| Driver IC | ST7789 |
| Connector | 50 Pins FPC |

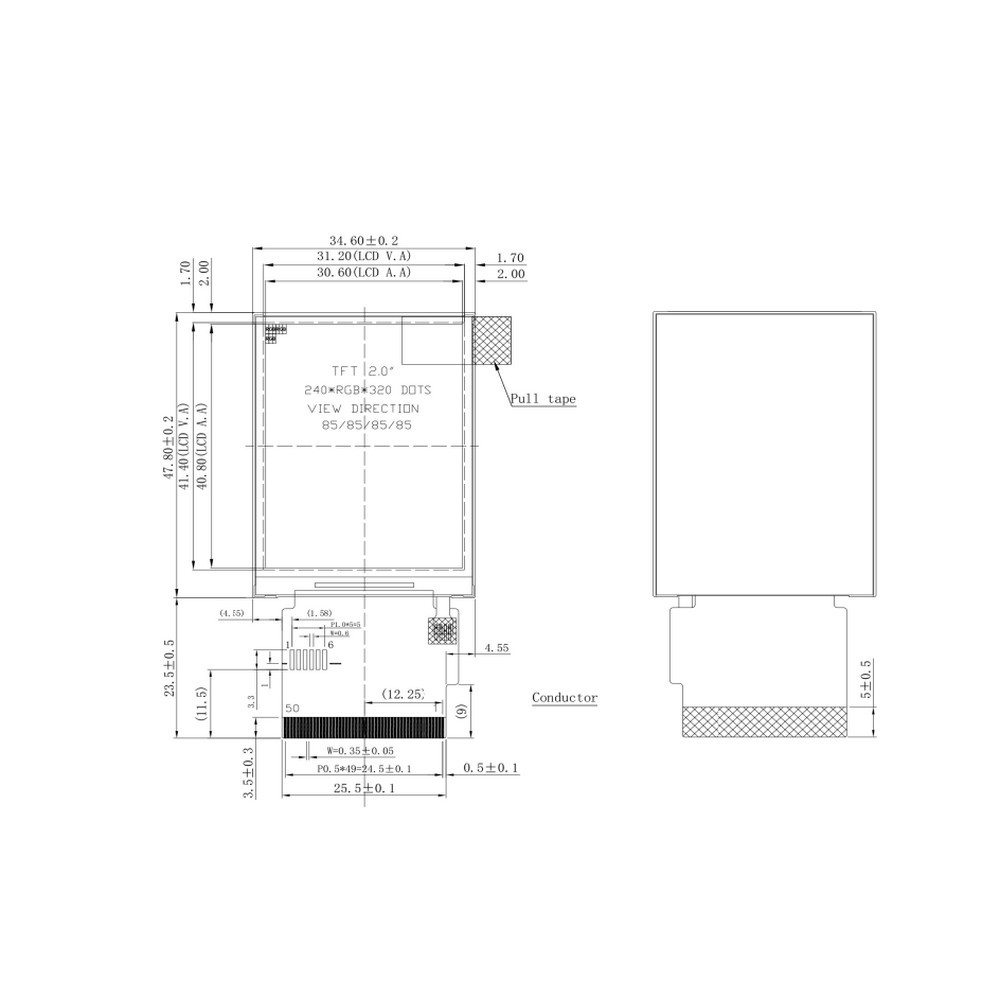

| Viewing Area | 31.2(W)x41.4(H) Mm |
| Aspect Ratio | 4:3 |
| Resolution | 240*320 |
| Storage Temperature | -30 ~ +80 |
| Contrast Ratio | 800:1 |
| Module size | 34.6(W)×47.8(H)×2.0(T) Mm |
| Display mode | Normally Black/Transmission |
The CH200QV18B IPS LCD display with Brand Name Chenghao Optoelectronic Model Number CH200QV18B is made in China,Shenzhen and has CE and RoHS certification. With minimum order quantity 1 Pcs, it is packed in right way to keep it safe with tray + carton for small sizes of products and foam slot + carton for bigger sizes. It also can design packages according to customers' requirements. The delivery time is 7-15 working days and the supply ability is 300Kpcs/month. The active area is 30.6 (W) × 40.8 (H) Mm while the back-light is 5 white LED in parallel and contrast ratio is 800:1. The viewing angle is 85/85/85/85 and the viewing area is 31.2 (W) x 41.4 (H) Mm. This product is perfect for st7789 tft, st7789 LCD display and color TFT display.
Technical support and service for IPS LCD Display:
CH200QV18B IPS LCD Display products are packaged in a cardboard box or wooden box with a foam or bubble wrap inside. The box is labeled with the product name, serial number, manufacturer, and other relevant information for easy identification. The box is sealed with packing tape and has a shipping label with tracking information.
The packing box is then put in a corrugated box for shipping. The corrugated box is also labeled with the product name, serial number, manufacturer, and other relevant information. The box is sealed with packing tape and has a shipping label with tracking information.
The product is shipped via a reliable and secure courier service with tracking information provided for easy monitoring. The delivery time depends on the courier service and the destination.
