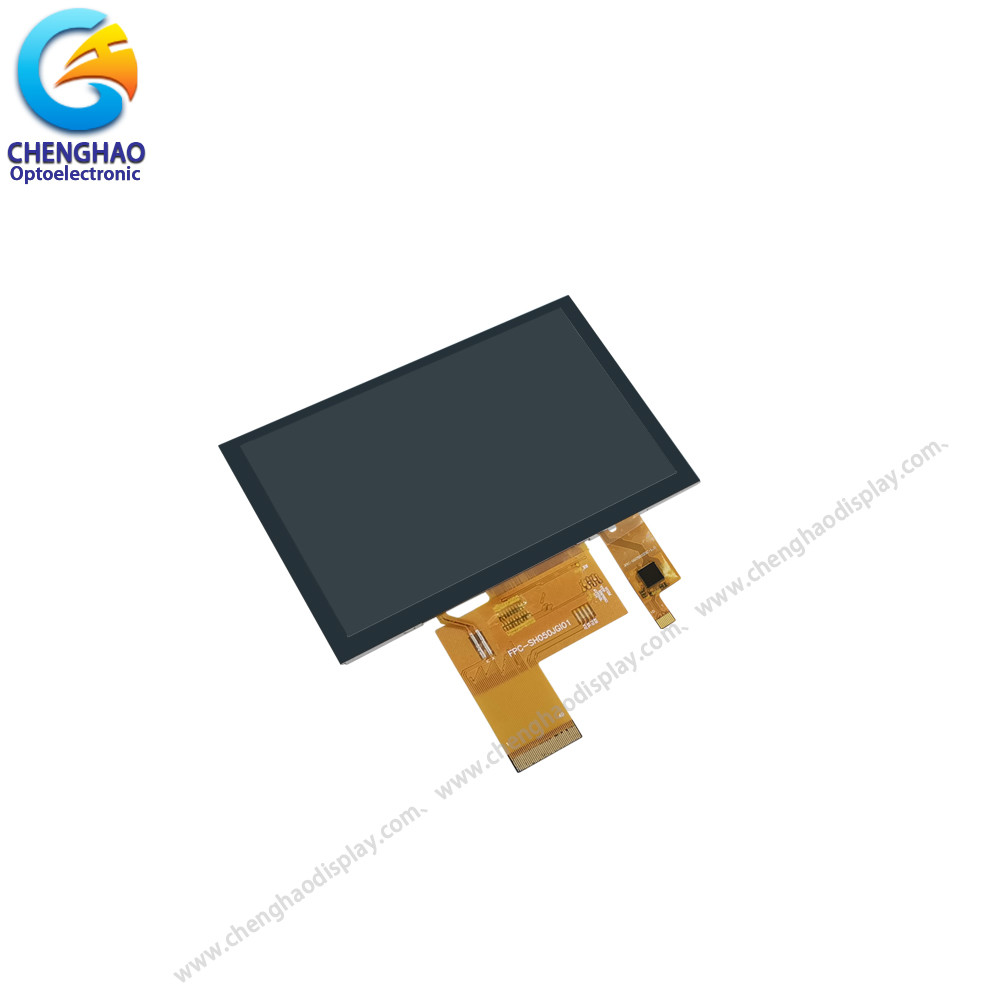

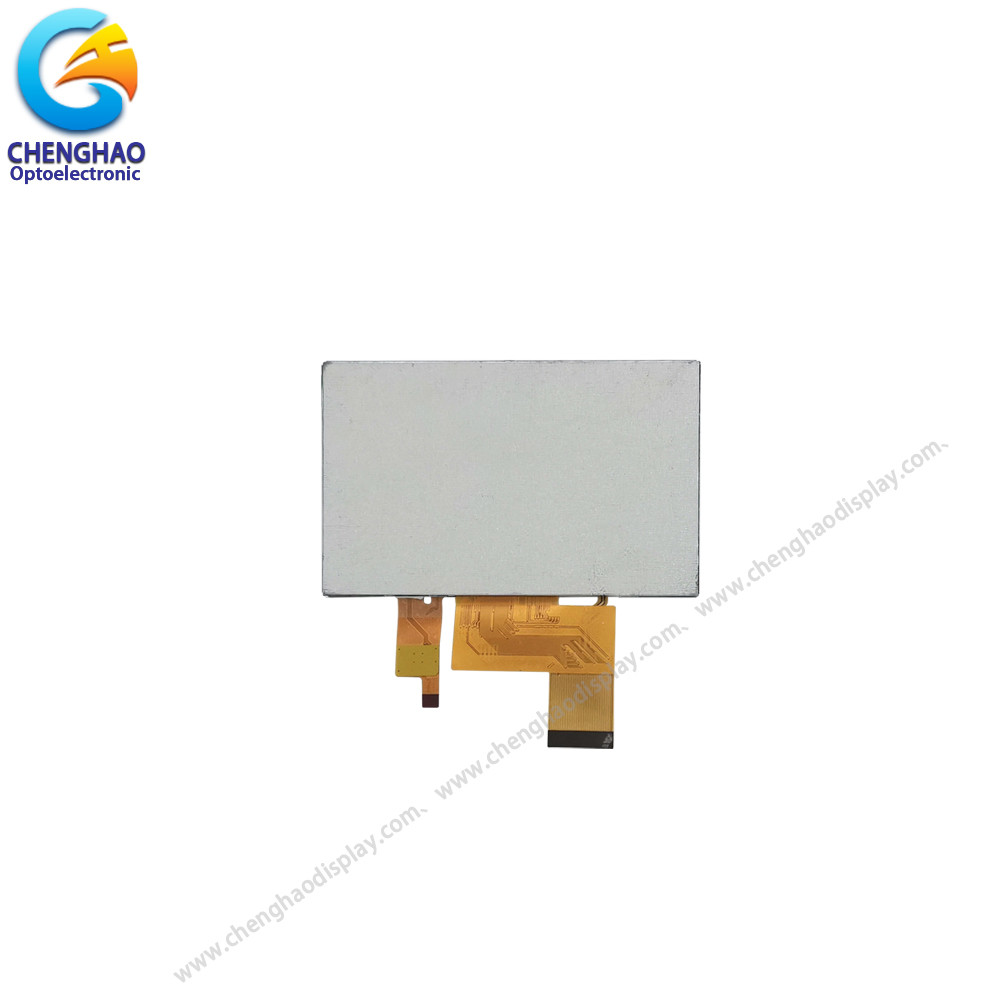

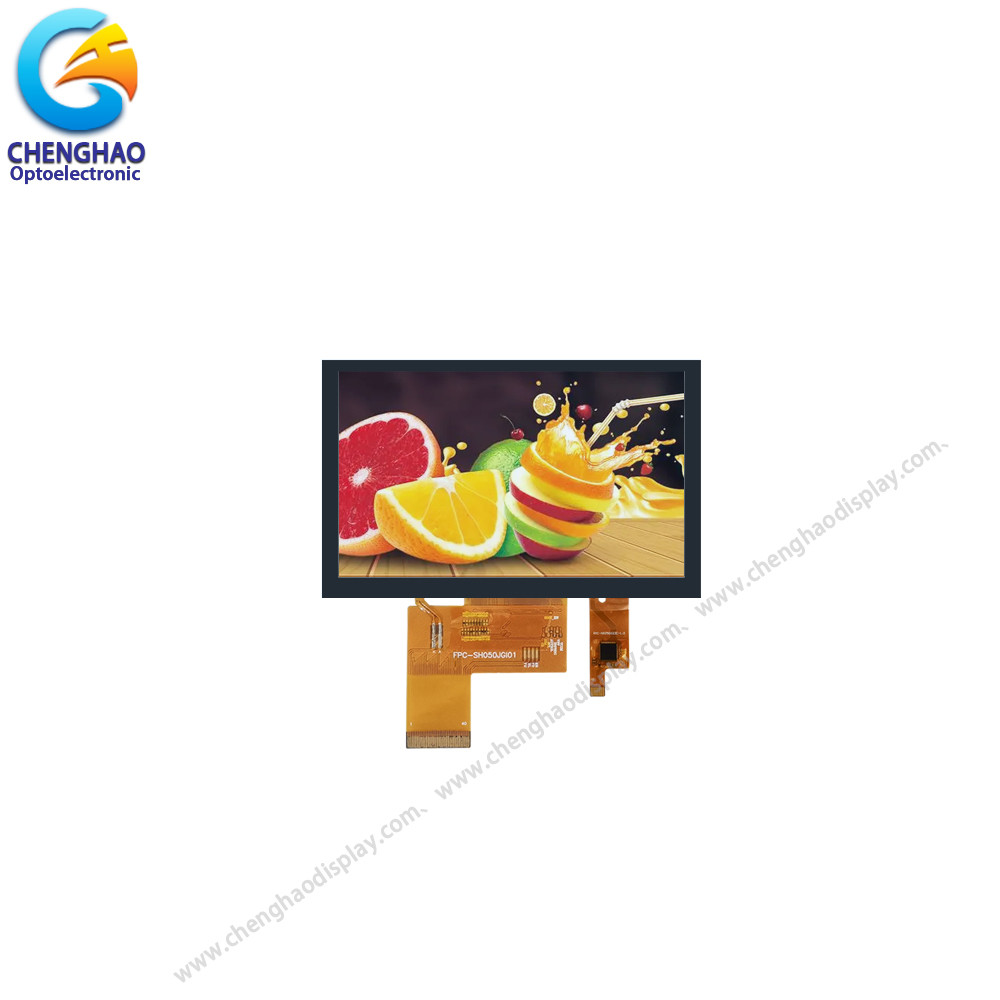

800*480dots IPS TFT LCD Display 5.0 Inch Capacitive Touch Screen

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH5000WV05E-CT

Detail Information

Product Name: Tft Lcd Screen Module Dot Arrangement: 800*480
Viewing Direction: 80/80/80/80 Display Mode: IPS/Transmissive/Normally Black
Active Area: 110.88(W)×62.832(H) Mm Luminance: 600 Cd/m2
Pin Number: 40pin
High Light:

800*480dots IPS TFT LCD Display

,

5.0inch IPS TFT LCD Display

,

40pin LCD Capacitive Touch Screen

Product Description

800*480dots IPS TFT LCD Display 5.0 Inch Capacitive Touch Screen



Sunlight Readable Ips Tft Lcd Display 800*480 5.0 Inch Capacitive Touch Screen



Specification of 5 inch tft lcd display



Product model CH500WV05E-CT
LCD type 5” TFT, IPS
Supply ability 300K pcs/month
Manufacturer location Shenzhen, China
Warranty 1 year



Description of tft touch display



The CH500WV05E-CT is a high-quality, 5” TFT LCD display module manufactured by Chenghao Lcd, a company located in Shenzhen, China. The module incorporates IPS technology and features a 800x480 resolution, providing high-quality and sharp images. It is a versatile display module that can be widely used in various devices that require color views such as smart coffee machines.



Quick details of custom lcd module



Module Name: High Brightness Screen
Module No.:CH500WV05E-CT
LCD Type: 5” TFT, IPS
Viewing Direction: 80/80/80/80 (All viewing angles)
Active Area: 108(W)×64.8(H)mm
Resolution: 800 x 480dots
Module Size: 120.7(W)×75.8(H)×4.35(T) mm
FPC Pin Number: 40 pins
Backlight Color: White
Backlight: 18 White LEDs in serial
Luminance: 600 cd/m2 High Brightness(optional)
Display Type: IPS/Transmissive / Normally Black
Operating Temperature: -20 ~ +70 ℃ (wide temperature)
Storage Temperature: -30 ~ +80 ℃
Life Time: 20,000 hours



Advantages of ips lcd screen



High-quality display module with a high brightness of 600 cd/m2 for easy viewing in any lighting condition.
Wide viewing angle to provide a clear view from almost any angle.
Versatile product that can be used in various devices such as smart coffee machines.
The module is designed with a wide temperature range (-20 ~ +70 ℃) to operate in different environments.
The product comes with RoHS, CE, and FCC certificates, ensuring that it meets strict quality standards.
The manufacturer offers one-stop liquid crystal display solutions, which is useful for customers who need customization services.



800*480dots IPS TFT LCD Display 5.0 Inch Capacitive Touch Screen 0






Why choose us?



Chenghao Lcd is a company with industry and trade integration, providing high-quality products and excellent customer service.
The manufacturer offers OEM and ODM services, providing customers with one-stop liquid crystal display solutions.
Chenghao Lcd can produce up to 300,000 pieces per month, ensuring a steady supply of products.
The manufacturer offers remote online technical support, providing customers with prompt and effective after-sales service.
The product comes with a one-year warranty, ensuring that customers have peace of mind when using the product.


FAQ

Q: What is the maximum luminance of the CH500WV05E-CT?
A: The maximum luminance of the product is 600 cd/m2.

Q: What is the backlight color of the CH500WV05E-CT?
A: The backlight color of the product is white.

Q: What temperature range can the CH500WV05E-CT operate in?
A: The product can operate in a wide temperature range of -20 ~ +70 ℃.

Q: Does the CH500WV05E-CT come with any certificates?
A: Yes, the product has RoHS, CE, and FCC certificates.

Q: What is the warranty period for the CH500WV05E-CT?
A: The product has a one-year warranty period.

Q: What is the MOQ for the CH500WV05E-CT?
A: The MOQ for the product is 1 piece.

Q: What is the delivery period for the CH500WV05E-CT?
A: The delivery period for the product is 7-15 working days.

Q: How do I pay for my order?
A: Payment for orders can be made via T/T.
