24 Bit Rgb Lcd Display 5 Inch 480*800 40pin IPS LCD Display With TP

Product Description

24 Bit Rgb Lcd Display 5 Inch 480*800 40pin IPS LCD Display With TP

1. Specification

2. Description

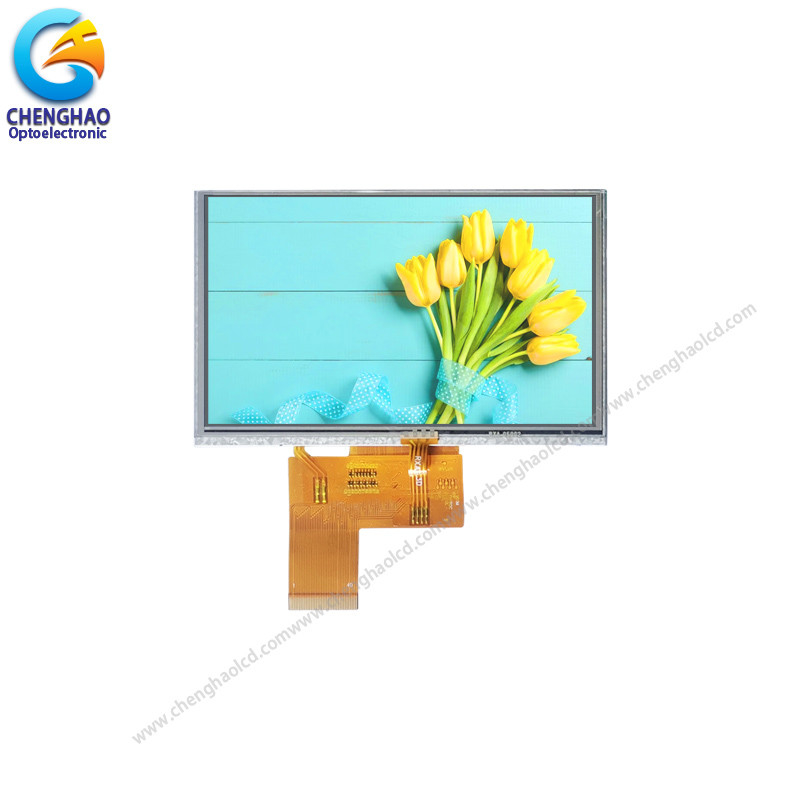

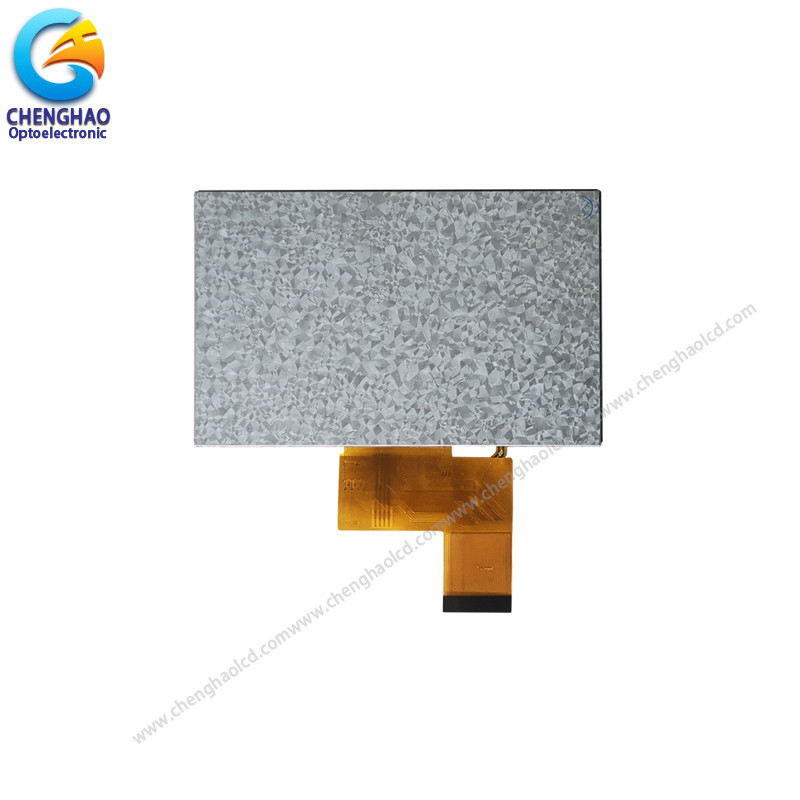

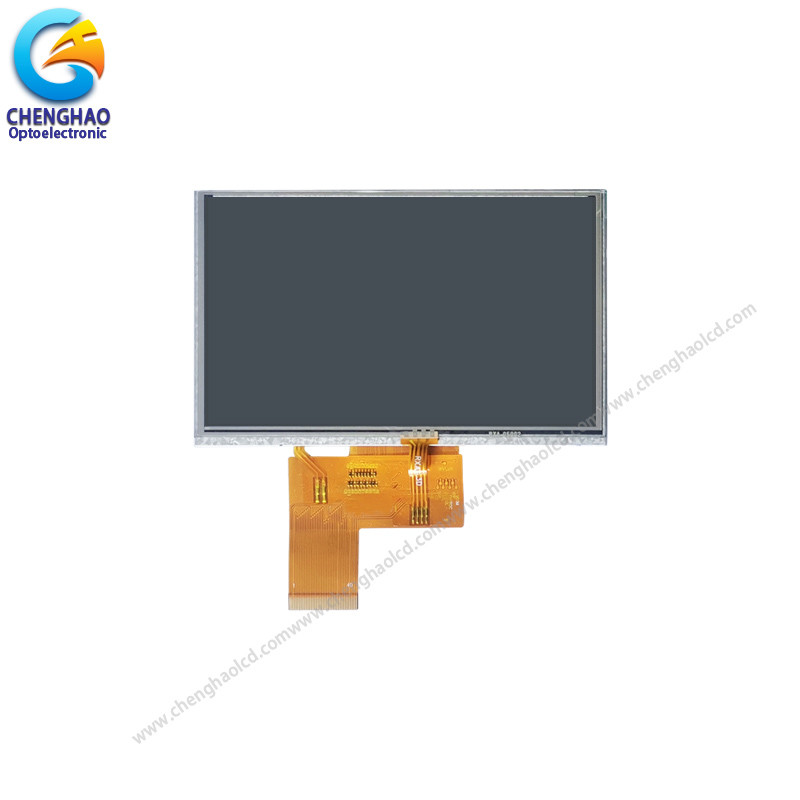

ChengHao Display model CH500WV05A-T is a 5 inch lcd display with touch screen, using 24-bit Parallel RGB Interface, the screen brightness is 250 cd/m2. There is a 800×3(RGB)×480 color display area of this lcd display tft, which can display 16M colors and supports IPS full viewing angle (80/80/80/80). The lcd 5inch display is equipped with a resistive touch panel, supports usb interface, the normal operating temperature is -20~+70℃ , and the average service life exceeds 20000H.
CH500WV05A-T is an lcd 5 inch 800x480 installed in the credit card machine. It has completed CE and RoHS certification, and can provide buyers with more than one year of warranty service. By the way, as a customized LCD screen, CH500WV05A-T can modify some components or functions according to the customer's wishes, such as interface customization, FPC design, touch function removal, brightness modification, etc.

3. Drawings

Notes:
(1) Display Type : 5”TFT+TP
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ***
(4) Polarizer Mode : ****
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

4. Quick Detail

LCM Name: 24 Bit Rgb Lcd Display 5 Inch 480*800 40pin IPS LCD Display With TP
LCM type: 5.0”
Dot arrangement:800×3(RGB)×480 dots
Color Pixel Arrangement: RGB vertical stripe
Display Mode:IPS / Transmissive / Normally Black
Viewing Direction: 80/80/80/80
Module size: 120.7(W)×76.3(H)×4.2(T) mm
Active area: 108(W)×64.8(H) mm
Dot pitch: 0.135(W)×0.135(H) mm
Interface: 24-bit Parallel RGB Interface
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Weight: TBD g
