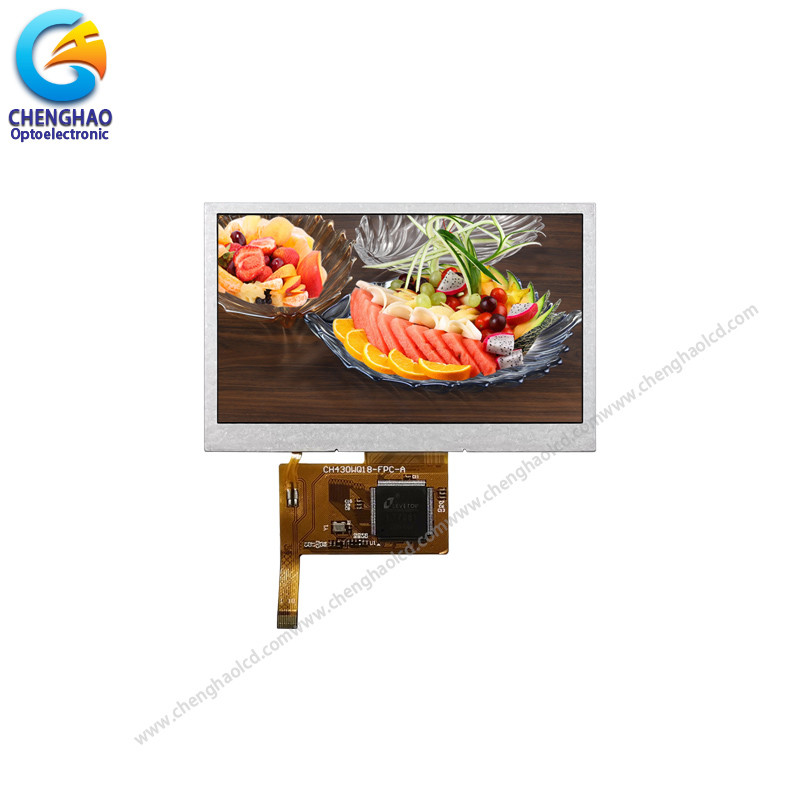

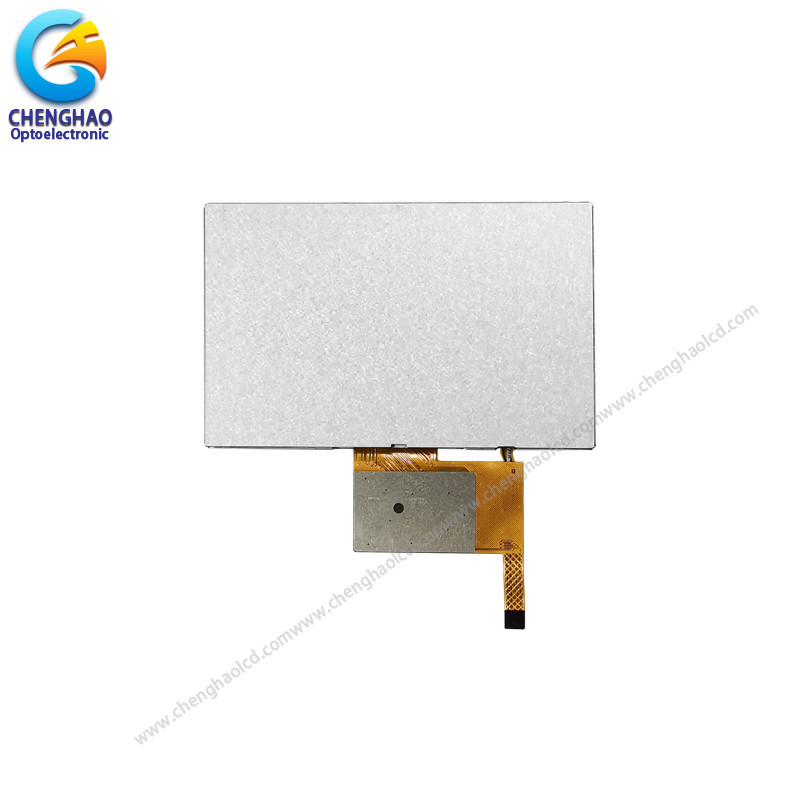

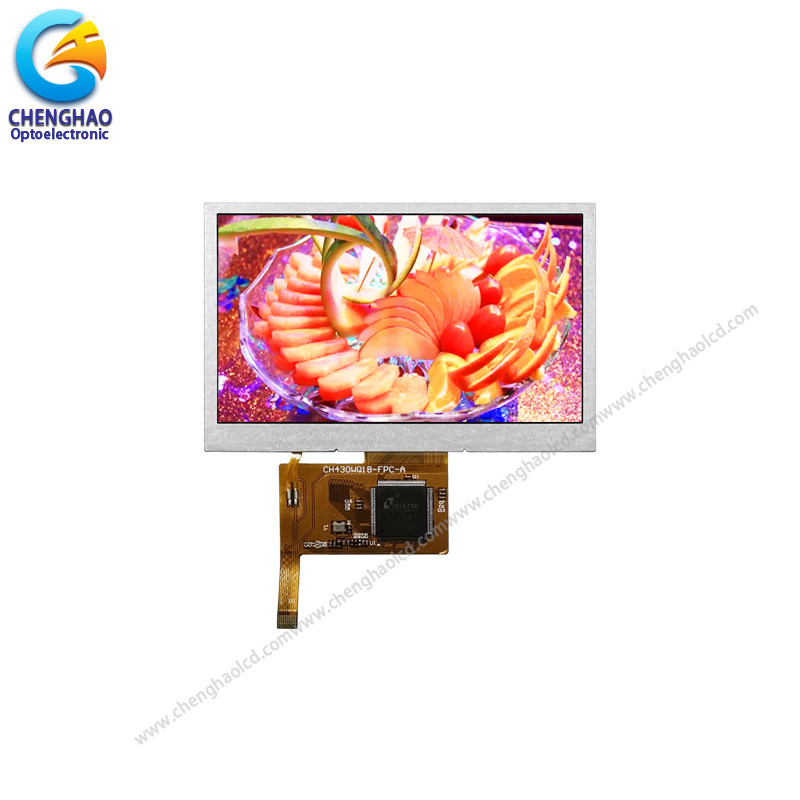

Hight Brightness IPS LCD Display 4.3 Inch 480x272 WQVGA 10pin SPI TFT LCD Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WQ18A

Detail Information

Product Name: WQVGA Hight Brightness IPS LCD Display LCD Type: 4.3"TFT
Dot Arrangement: 480(RGB)×272 Color Filter Array: RGB Vertical Stripe
Viewing Direction: 80/80/80/80 Interface: SPI
Operating Temperature: -20 ~ +70 ℃ Storage Temperature: -30 ~ +80 ℃
High Light:

Hight Brightness IPS LCD Display

,

IPS LCD Display 480x272

,

SPI Interface TFT LCD Display

Product Description

WQVGA Hight Brightness IPS LCD Display 4.3 Inch 480*272 10pin SPI TFT Display



1. Specification



Display Type
4.3’’ TFT
Display model
IPS / Transmissive / Normally Black
Display Resolution
480(RGB)×272
Contrast 800:1
Overall Size
105.5(W)×67.2(H)×3.0(T) mm
Active Area (A.A)
95.04(W)×53.856(H) mm
Luminace  1000 cd/m²



2. Description



Chenghao Optoelectronic CH430WQ18A is a sunlight readable color tft display, using SPI interface, when Vf=24.8v, If=40mA, the screen brightness is 1000 cd/m2, it can be installed in various outdoor equipment. There is a 4.3 inch dot matrix area of this hight brightness tft display, which can display 480x272 pixel color screen and 16M colors. This tft display adopts IPS display mode, supports 80/80/80/80 full viewing angle, and can operate normally for more than 20000 H in the temperature environment of -20~+70°C. In addition, this 4.3 inch tft display can be modified and customized according to customer requirements. The customizable content includes screen brightness, interface definition, touch function, FPC shape and screen anti-glare, etc.
CH430WQ08A is a color tft display installed on access control equipment. It has passed FCC, CE, RoHS certification, and provides more than one year of warranty service. If you want to get more information about this color tft display, welcome to contact us by email or online customer service.Chenghao Optoelectronic CH430WQ18A is a sunlight readable color tft display, using SPI interface, when Vf=24.8v, If=40mA, the screen brightness is 1000 cd/m2, it can be installed in various outdoor equipment. There is a 4.3 inch dot matrix area of this hight brightness tft display, which can display 480x272 pixel color screen and 16M colors. This tft display adopts IPS display mode, supports 80/80/80/80 full viewing angle, and can operate normally for more than 20000 H in the temperature environment of -20~+70°C. In addition, this 4.3 inch tft display can be modified and customized according to customer requirements. The customizable content includes screen brightness, interface definition, touch function, FPC shape and screen anti-glare, etc.
CH430WQ08A is a color tft display installed on access control equipment. It has passed FCC, CE, RoHS certification, and provides more than one year of warranty service. If you want to get more information about this color tft display, welcome to contact us by email or online customer service.





3. Drawings

Notes:
(1) Display Type :  4.3’’ TFT

(2) Viewing Direction : 80/80/80/80

(3) Operating Temp : -20~70 ℃
(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS



Hight Brightness IPS LCD Display 4.3 Inch 480x272 WQVGA 10pin SPI TFT LCD Display 0





4. Qucik Detail



Product Name:WQVGA Hight Brightness IPS LCD Display 4.3 Inch 480*272 10pin SPI TFT Display
Model No:CH430WQ18A
LCD type:4.3’’ TFT
Dot arrangement:480(RGB)×272 dots
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction:80/80/80/80
TFT Driver IC:***
Color:16M
Contrast:800
Module size:105.5(W)×67.2(H)×3.0(T) mm
TFT Active area:95.04(W)×53.856(H) mm
Dot pitch:0.198 (W)×0.198 (H) mm
TFT Interface:SPI
FPC Pin Number:10
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃
Back Light:16 pcs White LED


5. Application





Hight Brightness IPS LCD Display 4.3 Inch 480x272 WQVGA 10pin SPI TFT LCD Display 1



6. FAQ



A Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.

Q: What is your warranty?
A: We provide one year warranty.

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.
