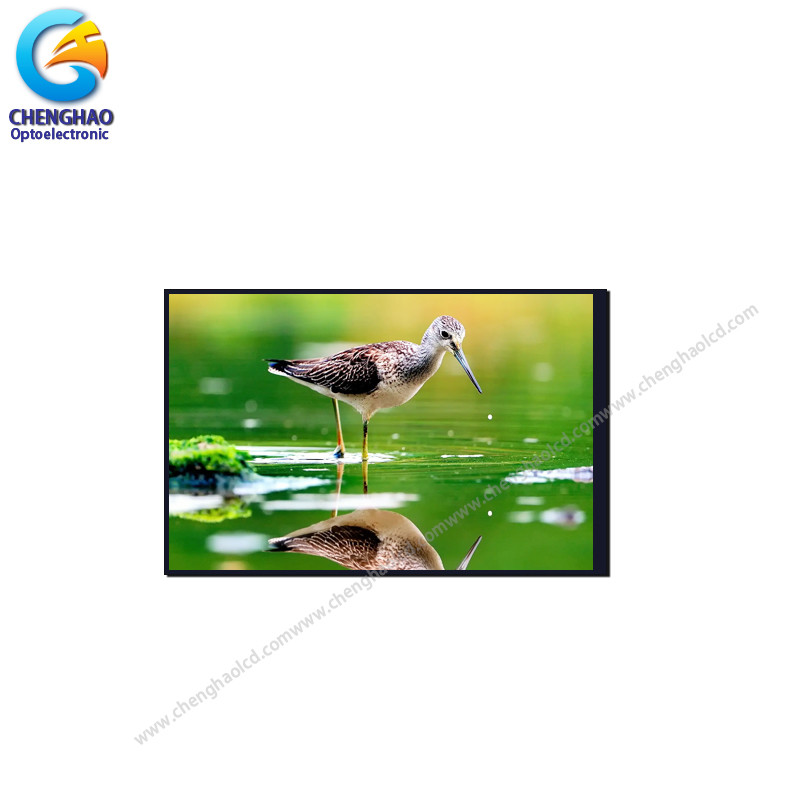

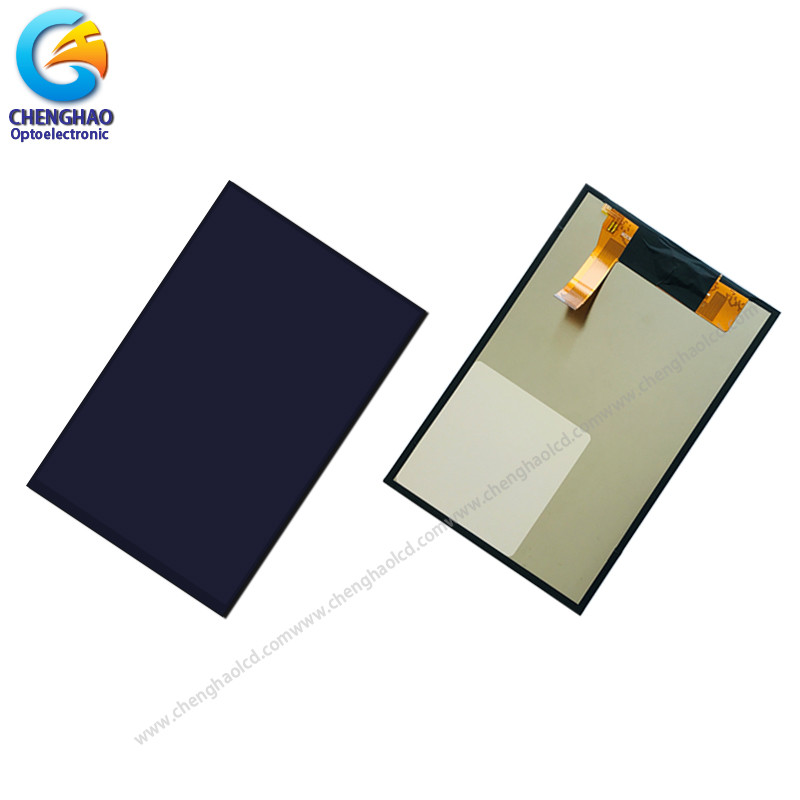

8 Inch FHD Color Screen MIPI 1200x1920 39pin IPS LCD Display

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH800FH03A

Detail Information

Product Name: 8 Inch FHD Color Screen Lcd Type: 8" TFT Lcd
Resolution: 1200*1920 Interface: MIPI
Luminance: 350 Cd/m2 Backlight Type: White LED
Viewing Direction: All Pin Number: 39
High Light:

Color LCD Screen 350 cd/m2


MIPI Color LCD Screen


39pin IPS LCD Display

Product Description

8 Inch FHD Color Screen MIPI 1200x1920 39pin IPS LCD Display


1. Specification


Module type 8"TFT
Display Mode IPS / Transmissive / Normally Black
Number of Dots 1200*3(RGB)*1920
Viewing Direction 80/80/80/80
Module size 114.7(W)*184.2(H)*2.5(T)mm
TFT Active area 107.64(W)*172.224(H)mm
TFT Dot pitch 0.0897(W)*0.0897(H)mm
Interface 4-lane MIPI
Backlight Type White LED
Luminace 350cd/m2


2. Description


Chenghao Optoelectronic CH800FH03A is an 8 inch FHD color screen used in smart refrigerators with a resolution of 1200*3(RGB)*1920, which can display 16M color HD video images. In order to allow users to read the screen more easily and flexibly, this FHD color screen adopts IPS display technology, which enables its viewing angle to reach 80/80/80/80, which means that no matter what viewing angle is used to view the screen, users can Read the content on the screen clearly.
CH800FH03A is a high-performance FHD color screen. It uses 4 lane mipi to communicate and interconnect with other components. Its working temperature is -20~+70 ℃, and its service life is more than 20k Hr. In addition, this 8 inch FHD color screen has passed CE and RoHs certification.
If this 8 inch FHD color screen cannot fully meet your project needs, we can modify and customize CH800FH03A according to your requirements. The customizable contents include FPC shape structure, backlight brightness, lcd interface customization, installation of touch panel, etc.


8 Inch FHD Color Screen  MIPI 1200x1920 39pin IPS LCD Display 0


3. Drawings


(1) Display Type : 8.0 inch tft lcd
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC : ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



8 Inch FHD Color Screen  MIPI 1200x1920 39pin IPS LCD Display 1




4. Quick Detail

LCM number : CH800FH03A
Resolution : 1200*1920
Dot pitch : 0.0897(W)*0.0897(H)mm
Outline dimension : 114.7(W)*184.2(H)*2.5(T) mm
Active Area : 107.64(W)*172.224(H) mm
View angle| : R/L/U/D 80/80/80/80(Deg)
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : 4 lane MIPI
Brightness : 350(cd/m2)
Tft driver IC : ****
Contrast ratio : 800
Backlight Type : LED
Response time : ******(ms)
Display mode : IPS, Normally Black, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 16.7M
Backlight lifetime : 20k hrs(Min.)
With/without Touch Panel:Without



5. Application



8 Inch FHD Color Screen  MIPI 1200x1920 39pin IPS LCD Display 2



6. FAQ


Q1: Do you testing the products before shipment?
A: we tested every prodcuts quality before send out .
Q2: What is your payment methods ?
A: T/T,Paypal,West Union and so on .
Q3:What's the lead time?Sample order is available?
A: lead time : 7-15 working days. We don’t have MOQ, Sample order is ok.
Q4:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings design , we can also build the molds.
Q5. What is your terms of packing?
A: Generally, we pack our goods in standard package , also if you have legally registered patent, we can pack the goods in your branded boxes.
