All Viewing Direction IPS LCD Display 4 lines 8bit SPI Interface 1.54'' Small LCD Screen

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH154HV05A-CT

Detail Information

Product Name: IPS LCD Display CTP Type: Glass +ITO Film+FPC+Adhesive
CTP Driver IC: FT6236 Module Size: 40.2(W)×40.5(H)×4.1(T) Mm
Active Area: 27.744(W)×27.744(H) Mm Dot Pitch: 0.0867(W)×0. 0867(H) Mm
Interface: 4-lines_8bit SPI
High Light:

8bit SPI IPS LCD Display


SPI Interface Small LCD Screen


1.54'' Small LCD Screen

Product Description

All Viewing Direction IPS LCD Display 1.54”Very Small Lcd Screen


1. Specification


LCD type 1.54’’TFT --
Dot arrangement 320(RGB)× 320 dots
Driver IC ST7796 --
Module size
Active area
Dot pitch
0.0867(W)×0. 0867(H)
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 3 White LED In Paralle --
Weight TBD g



2. Description


Chenghao mini touch screen (CH154HV0A-CT) is a small size capacitive touch screen, using 4-lines_8bit SPI interface, which can display 65K/262K colors. There is a 1.54 inch color display area of this mini touch screen, which can display 320(RGB)×320 resolution video pictures.

Because this mini touch screen uses IPS liquid crystal display technology, it has a full viewing angle of 80/80/80/80, which means that this display allows users to view the screen with extreme viewing angles close to 80/80/80/80. At the same time, the CH154HV05A-CT is also a wide temperature display screen, which can work in an environment where the temperature is in the range of -20~+70 ℃.

If you need to customize the 1.54 inch color LCD screen, we can also do it. You can get more information by consulting online customer service.



3. Drawings


(1) Display Type :  1.54 inch TFT+CTP
(2) Viewing Direction : All Viewing Angle
(3) Lcd Drive IC : ST7796
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

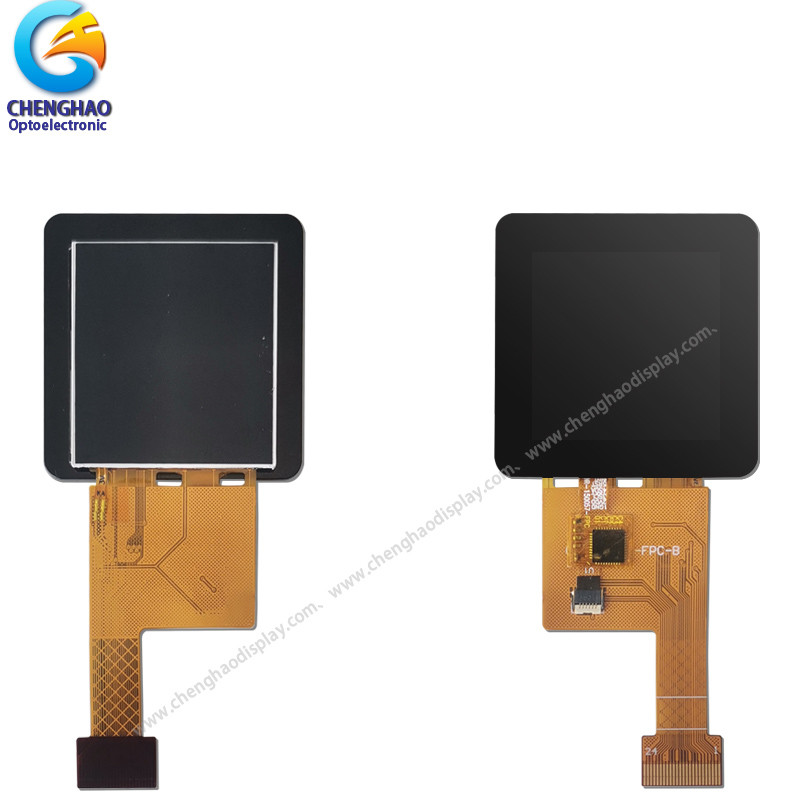

All Viewing Direction IPS LCD Display 4 lines 8bit SPI Interface 1.54''  Small LCD Screen 0



4. Quick Detail


* LCM name: All Viewing Direction IPS LCD Display

* Model: CH154HV05A-CT
* Lcm Size.:  1.54 inch
* With touch panel or not: with
* Touch type: CTP
* Display Type: 1.54” TFT+CTP
* Display colors: 262K/65K
* Number of Dots: 320*320 dots
* TFT Dot Pitch : 0.0867(W)×0. 0867(H) mm
* Viewing Angle: 80/80/80/80
* Driver IC: ST7796
* Display mode: IPS/ Transmission/ Normally Black
* Module size: 40.2(W)×40.5(H)×4.1(T) mm
* TFT Active Area: 27.744(W)×27.744(H) mm
* Luminance: 400 cd/m2
* Contrast: 800
* TFT Interface Type: 4-lines_8bit SPI

* CTP Interface Type: I2C

* Pin Number: 24 pins
* Backlight type and color: LED backlight/white
   Backlight: 3 LED parallel


5. Application

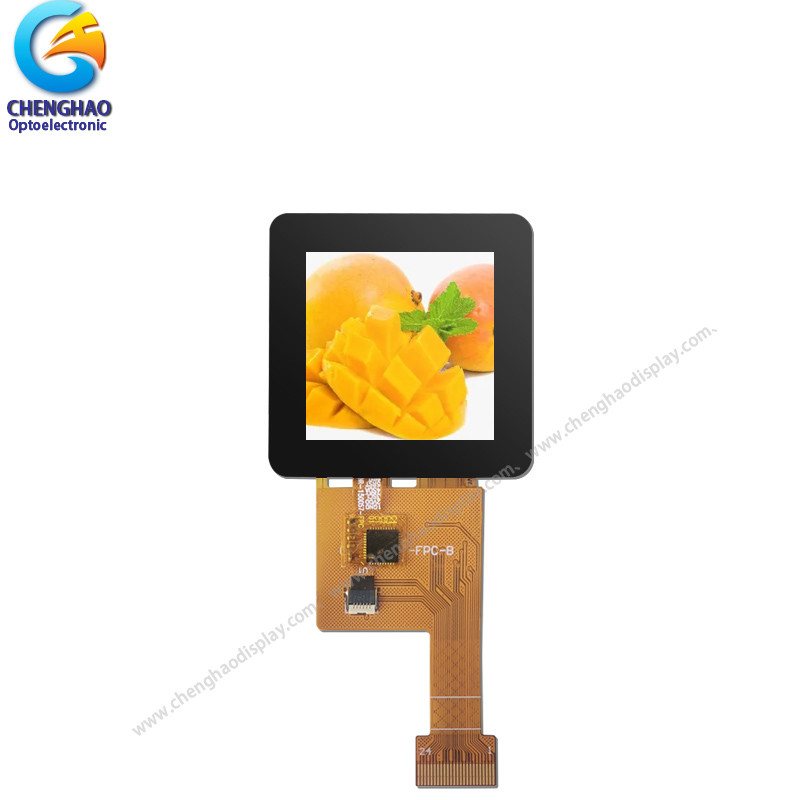

All Viewing Direction IPS LCD Display 4 lines 8bit SPI Interface 1.54''  Small LCD Screen 1
