HVGA Mini LCD Display Module All Viewing Angle 3.5 Inch 320x480 Dots IPS LCD Display

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350HV47A

Detail Information

Product Name: HVGA Mini Lcd Display Module Resolution: 320x480 Dots
Lcd Type: 3.5 Inch IPS TFT Life Time: 20K Hr
Luminance: 350 Cd/m2 Back Light: 6 White LED In Serial
Weight: TBD G
High Light:

HVGA Mini Lcd Display Module

,

SPI Mini Lcd Display Module

,

320x480 dots IPS Lcd Display

Product Description

HVGA Mini Lcd Display Module All Viewing Angle IPS Lcd Display



1. Specification



MODEL NO. CH350HV47A
Module type 7" IPS TFT
Resolution 320*480 dots
Module size
53.16(W)×81.74(H)×2.17(T) mm
TFT Active area
48.96(W)×73.44(H) mm
TFT Dot pitch
0.153(W)×0.153(H) mm
Interface
4line 8bit SPI
Backlight Type
6 White LED in serial
Luminace 350 nits





2. Description



Chenghao 320×480 tft lcd is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It mainly contains an lcd panel, a driver IC, a backlight and an FPC.

This lcd panel is of tft type and uses IPS display technology that allows users to read the screen at a viewing angle close to 80/80/80/80. Meanwhile, there is a 3.5 inch color display area of this lcd panel, which can display 320x480 pixel video images.

ST7796s is used as the driver IC of this 320x480 tft lcd, which is installed on the glass panel, supports 4line 8bit SPI interface, and can display 16M colors.

If this 320x480 tft lcd can not fully meet your requirements, we can also modify some parameters for you, the modified content includes touch function installation, FPC design, interface definition, backlight brightness modification, screen surface treatment, etc.



3. Drawings



Notes:
(1) Display Type : IPS TFT
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC :  ST7796S
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

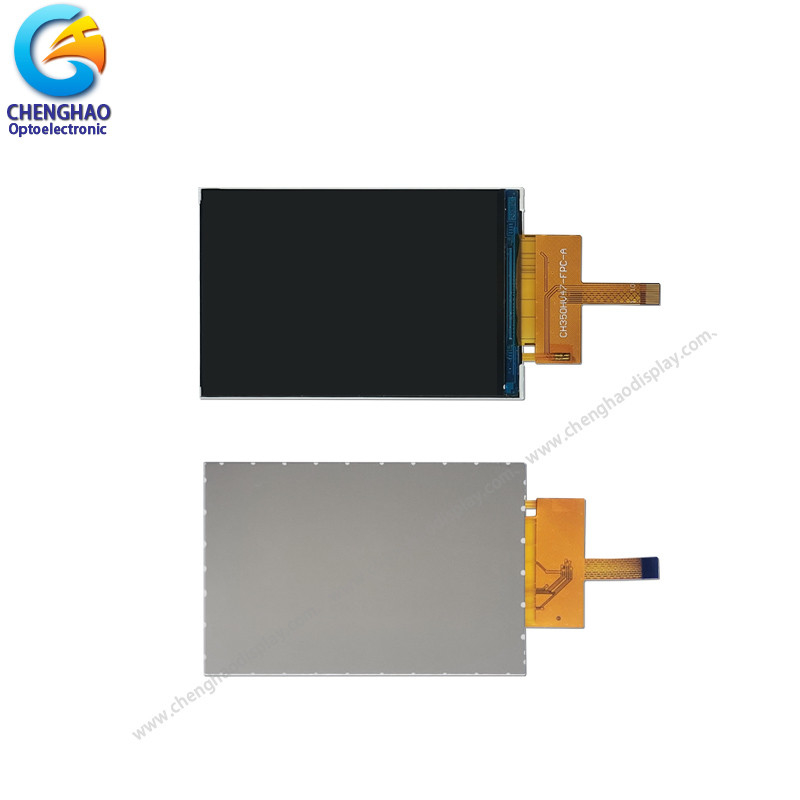

HVGA Mini LCD Display Module All Viewing Angle 3.5 Inch 320x480 Dots IPS LCD Display 0







4. Quick Detail



* LCM name: HVGA Mini Lcd Display Module

* Model: CH350HV47A
* Lcm Size.: 3.5 inch
* Display Type:  3.5"TFT
* Display colors: 262K/65K
* TFT Dot Pitch : 0.153(W)×0.153(H) mm

* Viewing Angle:  All Viewing Angle

* Driver IC: ST7796S
* Display mode: IPS/transmissive/ Normally black
* Module size: 53.16(W)×81.74(H)×2.17(T) mm

* TFT Active Area: 48.96(W)×73.44(H) mm

* Luminance: 350 cd/m2

* Contrast: 800

* TFT Interface Type: 4 line 8bit SPI

* Pin Number:  10 pin
* Backlight type : White LED
   Backlight:  6 LED



5. Application

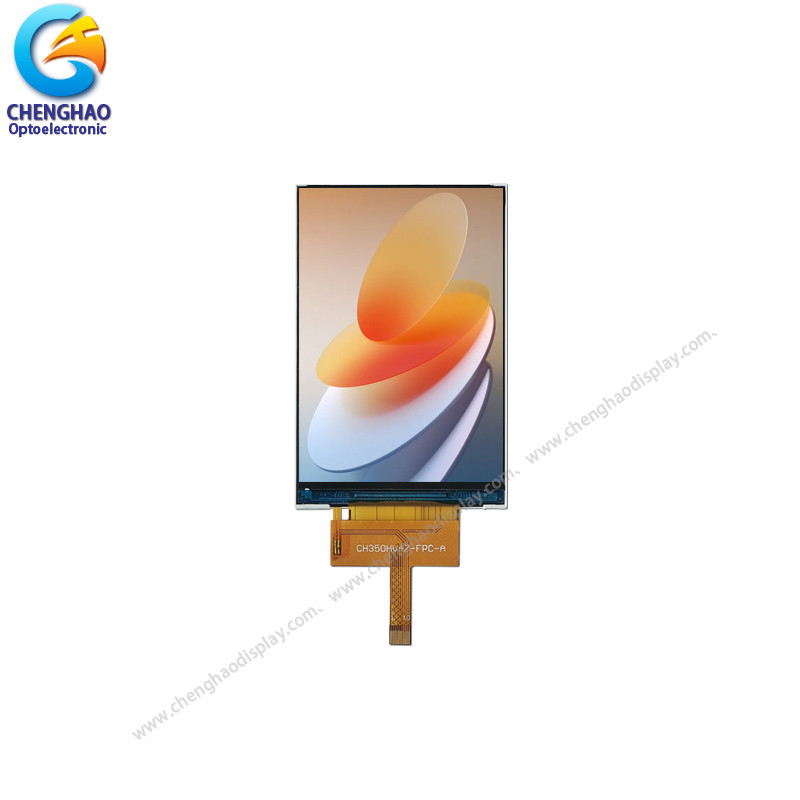

HVGA Mini LCD Display Module All Viewing Angle 3.5 Inch 320x480 Dots IPS LCD Display 1
