Waterproof 7.0 Inch IPS Panel Display 1024x600 Resolution All Viewing Direction

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WS12A

Detail Information

Product Name: Waterproof 7.0 Inch Ips Panel Display Module Type: 7"TFT
Display Mode: IPS / Transmissive / Normally Black Number Of Dots: 1024*3(RGB)*600
Viewing Direction: 80/80/80/80 Module Size: 164.9(W)*100.0(H)*3.5(T)mm
TFT Active Area: 154.2144(W)*85.92(H)mm
High Light:

Waterproof Ips Panel Display

,

400cd/m2 Ips Panel Display

,

RGB IPS LCD Display

Product Description

Waterproof 7.0 Inch Ips Panel Display 1024x600 Resolution All Viewing Direction



1. Specification



MODEL NO. CH700WS12A
Module type 7"TFT
Display Mode IPS / Transmissive / Normally Black
Number of Dots 1024*3(RGB)*600
Viewing Direction 80/80/80/80
Module size 164.9(W)*100.0(H)*3.5(T)mm
TFT Active area 154.2144(W)*85.92(H)mm
TFT Dot pitch 0.1506(W)*0.1432(H)mm
Interface RGB
Backlight Type White LED
Luminace 400cd/m2



2. Description



ChengHao Display model CH700WS12A is a 7.0 inch HD ips display with 24-bit Parallel RGB Interface. This high-definition IPS display is mainly composed of a tft lcd panel, a driver IC, a backlight and an FPC.

There is a 1024×600 Resolution color display area (landscape) of this HD IPS display, which can display 16M colors and allow users to read the screen with ultra-wide viewing angles (80/80/80/80). 24-bit Parallel RGB Interface is supported.

This high-definition IPS Display is a customized industrial-grade LCD display, which can be modified and customized for FPC, backlight and other components according to customer requirements.



3. Drawings



Notes:
(1) Display Type : 7.0" TFT
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC : ####
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

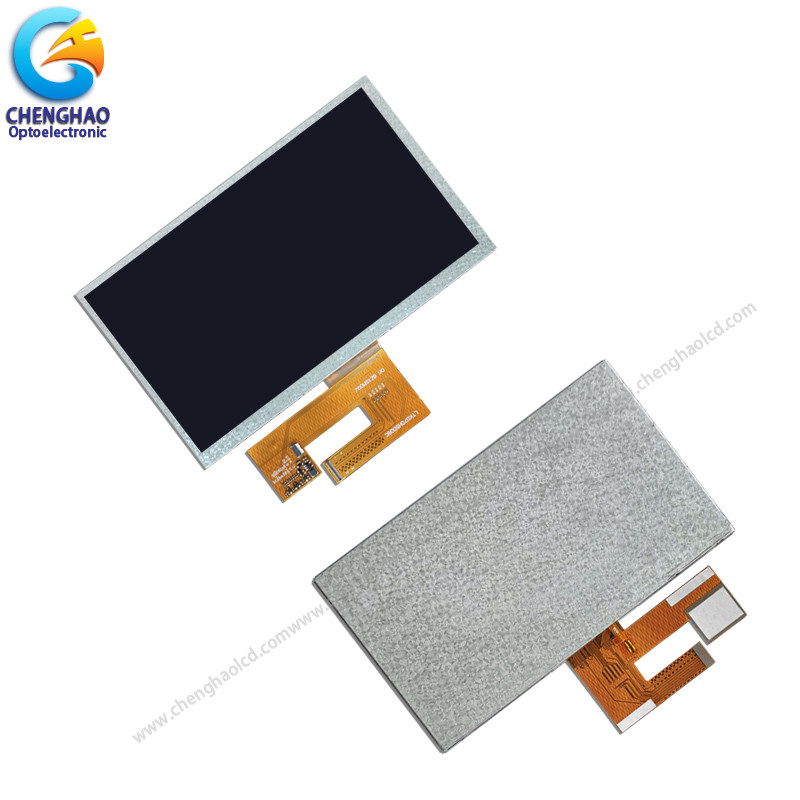

Waterproof 7.0 Inch IPS Panel Display 1024x600 Resolution All Viewing Direction 0





4. Quick Detail


Product Name: 7.0 Inch Ips Panel Display
Model No:CH700WS12A
With or Without TP: Without
LCD type: 7”TFT
Dot arrangement: 1024x600
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction: 80/80/80/80
TFT Driver IC: ******
Color: 16.7M
Contrast: 800:1
Module size: 164.9(W)*100.0(H)*3.5(T)mm
TFT Active area: 154.2144(W)*85.92(H)mm
Dot pitch: 0.1506(W)*0.1432(H)mm
TFT Interface: 24-bit Parallel RGB
FPC Pin Number:50 pin
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃
Back Light: 30 White LED
Weight: TBD g



5. Application

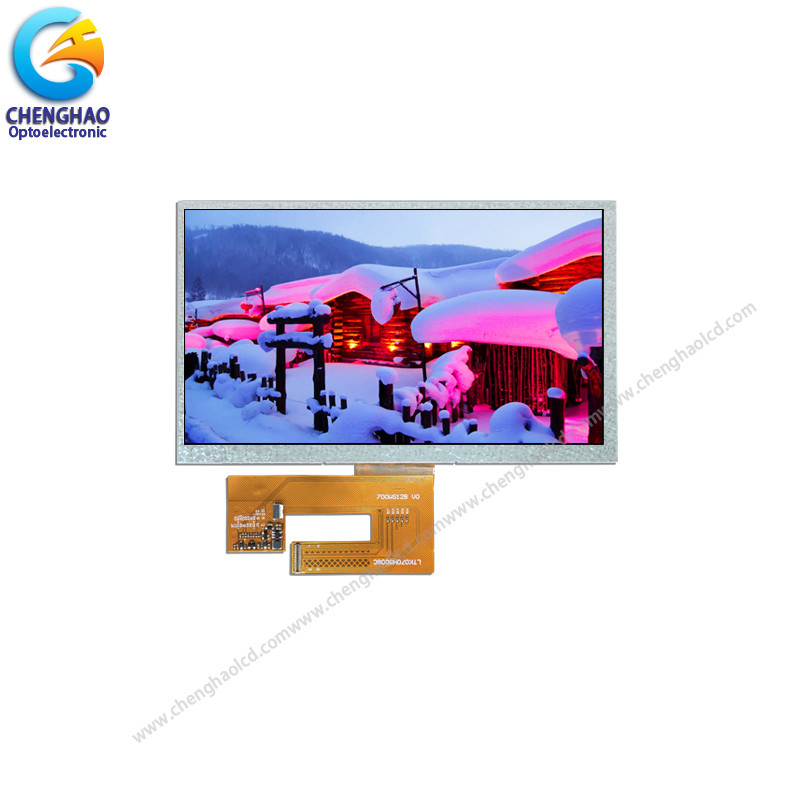

Waterproof 7.0 Inch IPS Panel Display 1024x600 Resolution All Viewing Direction 1





6. FAQ



Q1: Are you manufacturer ?

A: Yes, we are manufacturer.



Q2: How long is your delivery time?

A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.



Q3: If the products can't work after receiving it,what should I do?

A: We will replace new items for you at once and then we make the judgement for the issue.



Q4: Do you accept OEM design?

A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.



Q5: Do you accept pay 30% in advance?

A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.



Q6: What payment terms you accept?

A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
