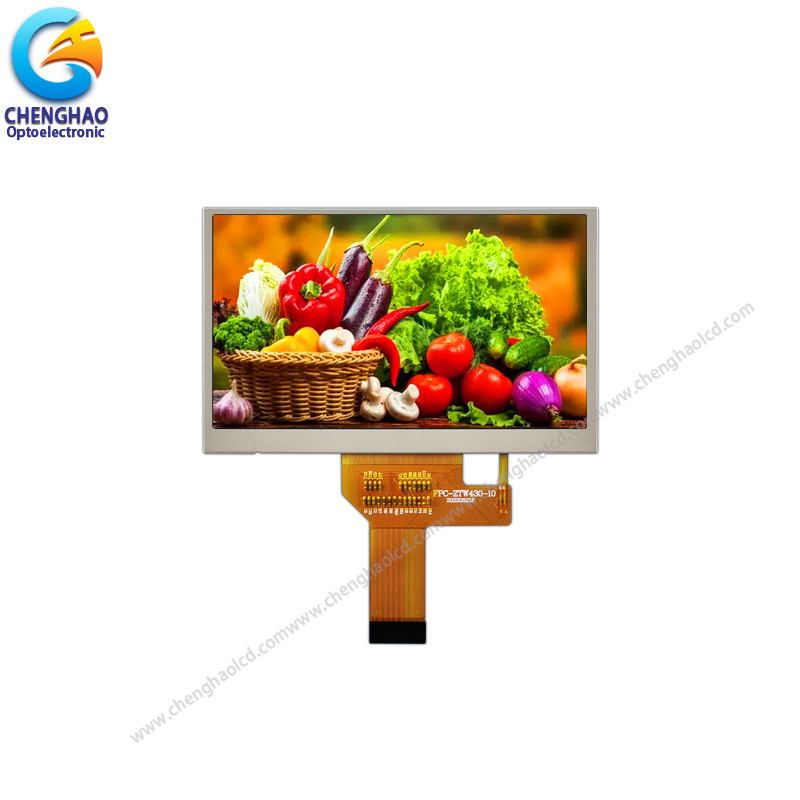

Sunlight Readable TFT LCD Module 4.3 Inch 1280x720 HD Full Color TFT Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430HD01A

Detail Information

Product Name: Sunlight Readable Tft Lcd Module Number Of Dots: 1280*3(RGB)*720
Size/Inch: 4.3 Inch Back Light: >1000 Cd/m2
Interface: LVDS Color: 16M
Contrast: 800 Display Mode: IPS/transmissive/ Normally Black
High Light:

1000 cd/m2 TFT LCD module

,

TFT LCD module 4.3 inch

,

TFT Sunlight Readable LCD module

Product Description

Sunlight Readable Tft Lcd Module 4.3inch 1280*720 HD Full Color Tft Display



1. Specification



Part No. CH430HD01A
Size 4.3 inch
Resolution 1280xRGBx720   dots
Outline Dimension
106.7(W ) x66.1(H) x2.8(T) mm
Active Area
97.536(W) x54.864(H) mm
Interface LVDS
IC ******
FPC 30pin
Working temperature -20°C ~ 70°C
Storage temperature -20°C ~ 70°C
Delivery Time 10 days



2. Description



Chenghao Optoelectronic CH430HD01 is a 4.3 inch HD tft display module that supports IPS full viewing angle and can display 1280x720 Resolution images. Since 12 pcs white led is used as the light source, the backlight Luminance of the HD tft screen can reach more than 1000 cd/m, so it can be read in sunlight.

LVDS interface is supported...

If this HD LCD screen can't meet your project requirements, we also have many display solutions similar to CH430HD01A for you to choose. Of course, we can also provide customized services for your project. You can directly contact online customer service or send us an email to get in touch with us.



3. Drawings

Notes:
(1) Display Type : 4.3" IPS TFT

(2) Viewing Direction : All Viewing Angle
(4) Polarizer Mode : Transmissive/ Negative

(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



Sunlight Readable TFT LCD Module 4.3 Inch 1280x720 HD Full Color TFT Display 0





4. Qucik Detail



LCM number : CH430HD01A
Resolution : 1280x720 dot
Dot pitch : ###
Outline dimension : 106.7(W ) x66.1(H) x2.8(T) mm
Active Area : 97.536(W) x54.864(H) mm
View angle: All
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : LVDS
Brightness  : >1000 cd/m2
Tft driver IC : ###
Contrast ratio : 800:1
Backlight Type : white led
Display mode :  transmission/ Normally Black
Operate temperature : -20~ +70(°C)
Storage temperature  : -30~ +80(°C)
Display Colors : 16M
Backlight lifetime : 20k hrs(Min.)



5. Application



Sunlight Readable TFT LCD Module 4.3 Inch 1280x720 HD Full Color TFT Display 1





6. Our Service



1.We provide one-year product after-sales guarantee service to all customers who purchase our products.

2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.

3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.

4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.



5. Replacement within 30 days after the shipment of products from us due to products' problems.



6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.



7. All goods will be inspected and tested before shipment.



8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.
