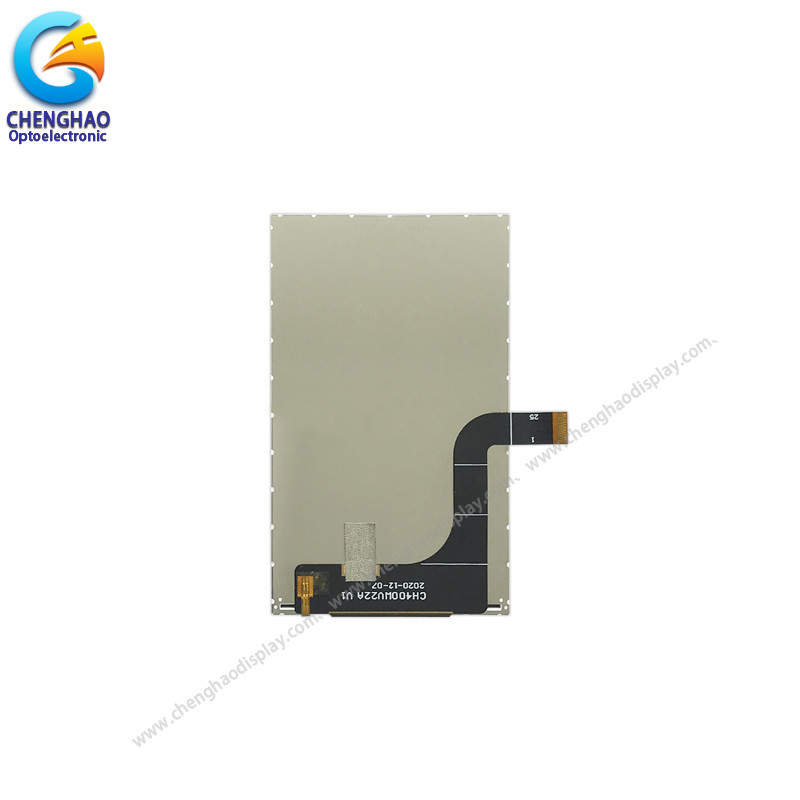

WVGA Sunlight Readable IPS TFT Display 3.97 Inch 800x480 Resolution

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV22A

Detail Information

Product Name: WVGA Sunlight Readable IPS Tft Display LCD Type: 3.97”TFT
Dot Arrangement: 480(RGB)×800 Color Filter Array: RGB Vertical Stripe
Display Mode: IPS / Transmissive / Normally Black Viewing Direction: ALL
TFT Driver IC: ********
High Light:

Sunlight Readable IPS TFT Display

,

IPS TFT Display 3.97 Inch

,

WVGA Sunlight Readable LCD Display

Product Description

WVGA Sunlight Readable IPS Tft Display 3.97 Inch 480x800 Resolution



1. Specification

Part No. CH400WV22A
Size 3.97 inch
Resolution 800x480(WVGA)
Outline Dimension
57.14(W)×96.85(H)×1.83(T) mm
Active Area
51.84(W)×86.4(H) mm
Interface MIPI
IC ******
FPC 25pin
Working temperature -20°C ~ 70°C
Storage temperature -20°C ~ 70°C
Delivery Time 10 days



2. Description



ChengHao Display model CH400WV22A is a small size (vertical screen) TFT LCD module that supports 2-lane_MIPI DSI interface and can display 16M colors. The small tft display module has a 3.97 inch 480x800 resolution color display area and supports IPS full viewing angle. The brightness of the Back light and the number of pins of the FPC are 450 cd/m2 and 25pin respectively, which can be modified and customized according to customer requirements.

If the 3.97 ips tft display can not meet your needs, we can also provide you with more similar solutions, you can ask us through online customer service or email.



3. Drawings

Notes:
(1) Display Type : 3.97inch TFT

(2) Viewing Direction : 80/80/80/80
(4) Polarizer Mode : Transmissive/Positive

(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



WVGA Sunlight Readable IPS TFT Display 3.97 Inch 800x480 Resolution 0



4. Qucik Detail



LCM number : CH400WV22A
Resolution :  800*480 dot
Dot pitch : 0.108(W)×0.108(H) mm
Outline dimension : 57.14(W)×96.85(H)×1.83(T) mm
Active Area : 51.84(W)×86.4(H) mm
View angle:All
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : 2-lane_MIPI DSI
Brightness  :  450 cd/m2
Tft driver IC : ******
Contrast ratio : 800
Backlight Type : white led
Display mode :  transmission/ Normally Black
Operate temperature : -20~ +70(°C)
Storage temperature  : -30~ +80(°C)
Display Colors : 16M
Backlight lifetime : 20k hrs(Min.)



5. Application



WVGA Sunlight Readable IPS TFT Display 3.97 Inch 800x480 Resolution 1









6. Our Service



Shipping Policy:

1- Regularly, we shipped via Fedex/Dhl/UPS , express way (2-7 working days arrival), suitable for small order.

2- Sea shipping way, (25-40 days arrival), low cost, port to port, usually for large quantity order.



Custom/OEM:

Custom service is ok.



Sample Policy:

1- Usually we offer random sample for free but with your sample shipping freight charge paid.

2- We offer 1-2 pcs each sample randomly, if for more pcs, we will try send to you, if not and you must



request more pcs, we will charge same sample fees for make more pcs samples to you.



Easy order process:

Please kindly confirm us about product name, images, colors and quantity before you make the order .
