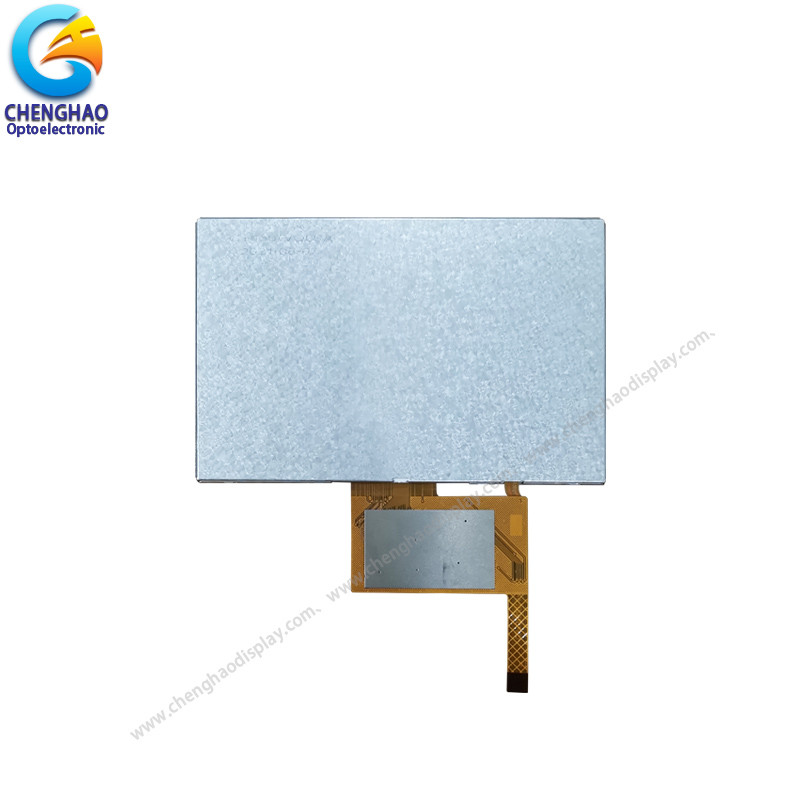

480*272 Dot Matrix Lcd Display Module 4.3inch SPI Screen With IPS All Viewing Angle

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WQ16A

Detail Information

Product Name: 4.3inch SPI Screen Dot Arrangement: 480x272
Size / Inch: 4.3 Inch Outline Dimension: 105.5(W)*67.2(H)*3.0(T)mm
Backlight Type: White LED Viewing Angle: All
High Light:

Lcd Display Module 480x272 Dot

,

REACH compliant S{T Lcd Display

,

480x272 4.3inch SPI Screen

Product Description

480*272 dot matrix lcd display module 4.3inch SPI Screen with IPS All Viewing Angle



1. Specification of 4.3 SPI Display


ITEM STANDARD VALUES UNITS
LCD type 4.3’’TFT --
Dot arrangement 480(RGB)× 272 dots
Module size 105.5(W)*67.2(H)*3.0(T) mm
Active area 95.04(W)*53.856(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Weight TBD g



2. Description of 480x272 SPI Display


* CH430WQ16A is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a IPS TFT LCD panel, driver IC, FPC, backlight.

* It is 480(RGB)x272 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* FPC can be customized, including shape structure, interface definition, etc.

* The installation of a touch panel is supported.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.


3. Drawings of 4.3 SPI LCD module


Notes:
(1) Display Type : 4.3 inch IPS TFT
(2) Viewing Direction :  ALL
(3) Polarizer Mode : Transmissive / Negative
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

 480*272 Dot Matrix Lcd Display Module 4.3inch SPI Screen With IPS All Viewing Angle 0


480*272 Dot Matrix Lcd Display Module 4.3inch SPI Screen With IPS All Viewing Angle 1

4. Quick Detail of 480x272 spi LCD module


LCD type : 4.3" TFT
Dot arrangement : 480(RGB)*272 dots
Color filter array : RGB vertical stripe
Display mode :  IPS/ Transmission/ Normally Black
Viewing Direction :  80/80/80/80
Module size : 105.5(W)*67.2(H)*3.0(T) mm
Active area:  95.04(W)*53.856(H)mm
Interface TFT : SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light:
White LED
FPC Number:10
Weight: TBD g


5. Application of 4.3 ips tft display module


 480*272 Dot Matrix Lcd Display Module 4.3inch SPI Screen With IPS All Viewing Angle 2



6. FAQ

Q:Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.

Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production

Q:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.

Q:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.

Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply

Q: How can I trust your product quality?
A:The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
