1.1 Inch IPS LCD Display RGB 96x96 dots Resolution 4 Line SPI Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH110T001A

Detail Information

Product Name: 1.1 Inch IPS LCD Display LCD Type: 1.1" TFT
Dot Arrangement: 96(RGB)×96 Dots Color Filter Array: RGB Vertical Stripe
Display Mode: IPS / Transmissive / Normally Black Viewing Direction: 80/80/80/80
High Light:

1.1 Inch IPS LCD Display

,

SPI Interface IPS LCD Display

,

RGB 96x96 LCD Display Module

Product Description

1.1 Inch IPS LCD Display 96x96 Resolution 4line SPI Interface



1. Specification of small lcd module

Module Name CH110T001A
Type: 1.1 inch Tft
Viewing Direction: 80/80/80/80
Connection type: COG+FPC
Operating temperature: -30℃~80℃
Storage temperature: -30℃~80℃
Driver IC:
ST7735S
Interface type:
4line SPI
Brightness: 200 cd/m2


2. Description of Small lcd screen


ChengHao Display model CH110T001A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a IPS TFT LCD panel, a driving IC, a back-light and FPC.

This TFT LCD has a 1.1” ( vertical screen ) diagonally measured active display area with 96(RGB)x 96 dot resolution.

The driver can display 65K/262K colors by R.G.B. signal input and is mounted on the glass and the interconnection via FPC including components to drive the display module.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.


3. Drawings of TFT LCD Screen


Notes:
(1) Display Type : 1.1inch TFT
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC :
ST7735S
(4) Operating Temperature : -20 ~ 70 ℃
(5) Storage Temperature : -30 ~ 80 ℃
(6) Protection : ROHS

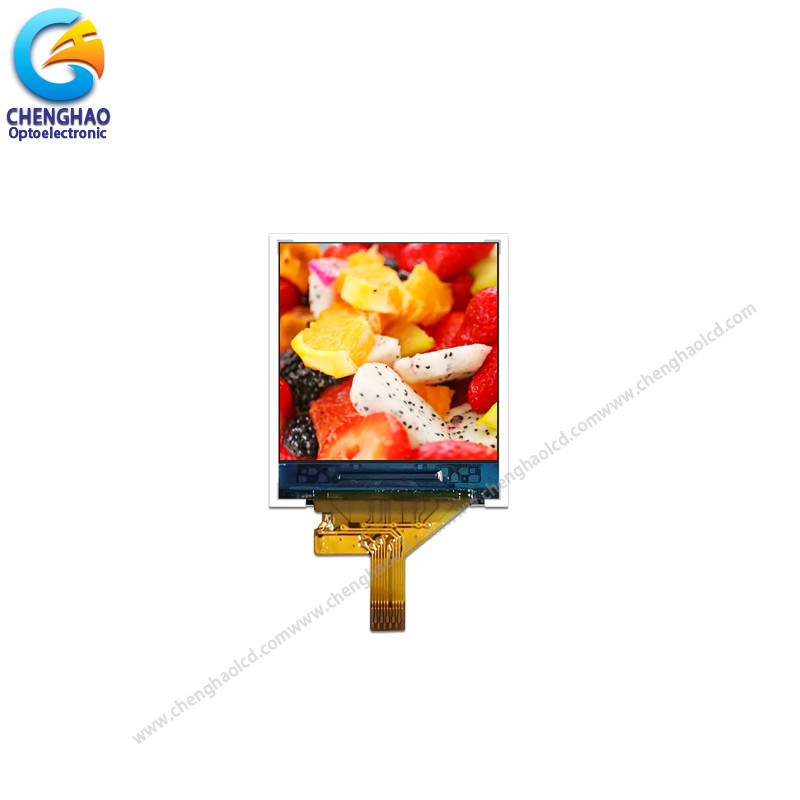

1.1 Inch IPS LCD Display RGB 96x96 dots Resolution 4 Line SPI Interface 0

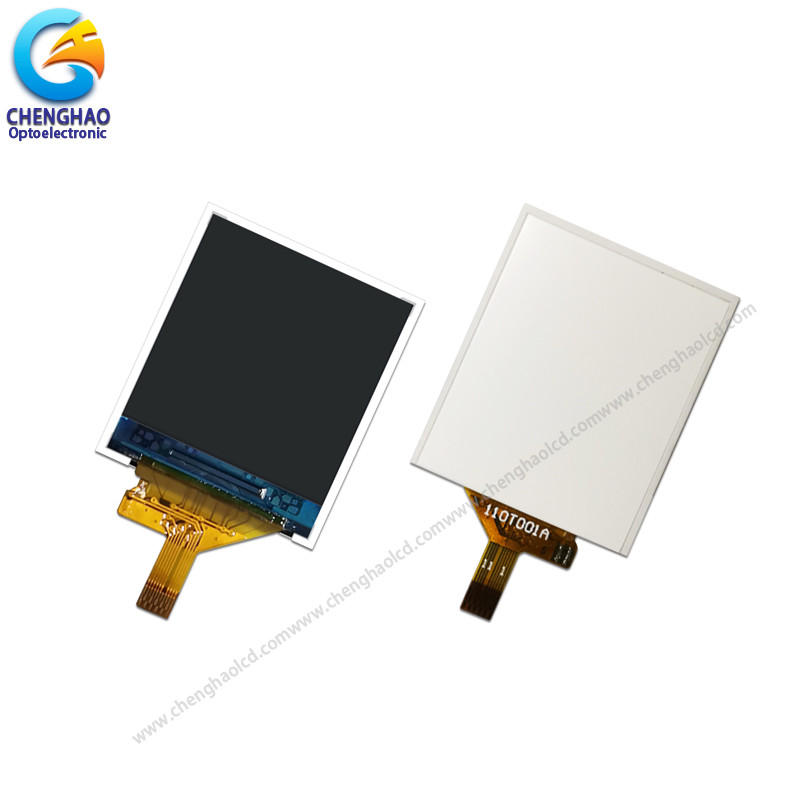

1.1 Inch IPS LCD Display RGB 96x96 dots Resolution 4 Line SPI Interface 1

4. Quick Detail of TFT LCD Display


* LCD name: 1.1 Inch IPS LCD Display 96x96 Resolution 4line SPI Interface
* Part No.: CH110T001A
* Size.: 1.1 inch
* With touch panel or not: No
* Support Touch type: Capacitive/Resistive
* Display type: 1.1 inch TFT
* Display colors: 262K/65K
* Resolution (pixels): 96(RGB)*96
* Pixel pitch: 0.207(W)×0.207(H) mm

* Viewing direction: 80/80/80/80
* Controller IC: ST7735S
* Display mode: Transmissive/ Normally Black
* Overall size: 25.46(W)×29.54(H)×2.3(T) mm
* Active Area: 19.87(W)×19.87(H) mm

* Luminance: 250 cd/m2
* Contrast: 800
* Interface type: 4 line SPI
* Pin NO.: 11 pins
* Backlight type and color: LED backlight/white
Backlight: 1 LED parallel
If=20mA, Vf =3.2V
* LED Life span: 20000h



5. Application of Color Lcd  Module


 1.1 Inch IPS LCD Display RGB 96x96 dots Resolution 4 Line SPI Interface 2


6. General Clauses



MOQ: 1 pcs
Lead time: Samples in stocks within 7 days,3~6 weeks for mass production
Trade Terms : EXW or FOB
Payment: 100% Paypal or T/T or Western union in advanc for samples
Warranty: 12 months
Package: Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton


Q1: Are you manufacturer ?
A: Yes, we are manufacturer.
Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.
Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.
Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.
Q6: What paent terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
