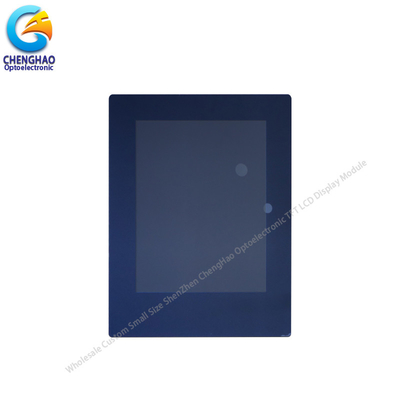

2.4" Thin LCD Display 50 Pin SPI RGB Multi Interface LCD Capacitive Touchscreen

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV52A-CTB

Detail Information

Product Name: Thin Lcd Display Driver IC: ST7789
Resolution: 240x320 Dots Viewing Direction: All Viewing Direction
Operating Temperature: -20~ + 70℃ Luminace: 300cd/m2
Interface: SPI、MCU、SPI+RGB
High Light:

2.4" thin lcd display

,

SPI RGB thin lcd display

,

Multi Interface LCD Capacitive Touchscreen

Product Description

2.4" Thin Lcd Display 50 Pin SPI RGB Multi Interface Capacitive Touch Screen Module



1. Specification of Lcd Touch Screen Monitor



ITEM STANDARD VALUES UNITS
LCD type 2.4’’TFT+CTP --
Dot arrangement 240(RGB)× 320 dots
Driver IC ST7789V --
Module size 52.72(W)*70.26(H)*4.0(T) mm
Active area 36.72(W)*48.96(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 4 White LED In Paralle --
Weight TBD g



2. Description of Touch Screen Module



ChengHao Display model CH240QV52A-CTB is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back- light, a capacitive touch panel and FPC.
This TFT LCD has a 2.4 (portrait) inch diagonally measured active display area with 240*320 dots resolution, ST7789 mounted on glass is the driver IC of this module. This TFT LCD Module supports SPI / MCU / SPI+RGB multi It can display 262K or 65K colors by inputting RGB signals through various interfaces. In addition, the module has a capacitive touch panel and supports multi-touch.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.



3. Drawings of Lcd Tft Touchscreen



Notes:
(1) Display Type : 2.4" Tft + CTP
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ST7789V
(4) Polarizer Mode : IPS / Transmission / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



2.4" Thin LCD Display 50 Pin SPI RGB Multi Interface LCD Capacitive Touchscreen 0








4. Application of Small Touch Screen Display



Telecommunication Devices
Telephone,interphone,watch,tablet PC,radio,etc
Consumer Products
Camera,DVD player,toy, Cell Phone,game player,etc
Technical Equipment
Elevator controller,Industrial machine,etc
Office Automation
Printer,scanner,attendance machine,fax machine,etc
Home Appliances
Air-condition display,refrigerator,electric cooker,video doorbell,etc
Automobile
GPS,video player,speedometer,audio broadcast,etc
IT Products
Camera,handheld digital video,projector,media play,tablet PC,etc
Medical Equipment
Ultrasound machine,therapeutic equipment Blood pressure meter,etc





2.4" Thin LCD Display 50 Pin SPI RGB Multi Interface LCD Capacitive Touchscreen 1






5. Why Choose Us ?



The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.
(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.
(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;
(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.
(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy viewing by customers;
