2.4 Inch 39 Pin Custom Lcd Screen I80 System 8 / 9 / 16 / 18 Bit Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV47A

Detail Information

Product Name: 2.4 Inch Custom Lcd Screen Number Of Dots: 240(RGB)×320
Product Size: 2.4 Inch Overall Size: 42.72(W)×60.26(H)×2.1(T)mm
Active Area: 36.72(W)×48.96(H)mm TFT Dot Pitch: 0.153 (W)×0.153 (H)
Pin Unmber: 39
High Light:

2.4 inch custom lcd screen

,

39 pin custom lcd screen

,

16 bit custom small lcd module

Product Description

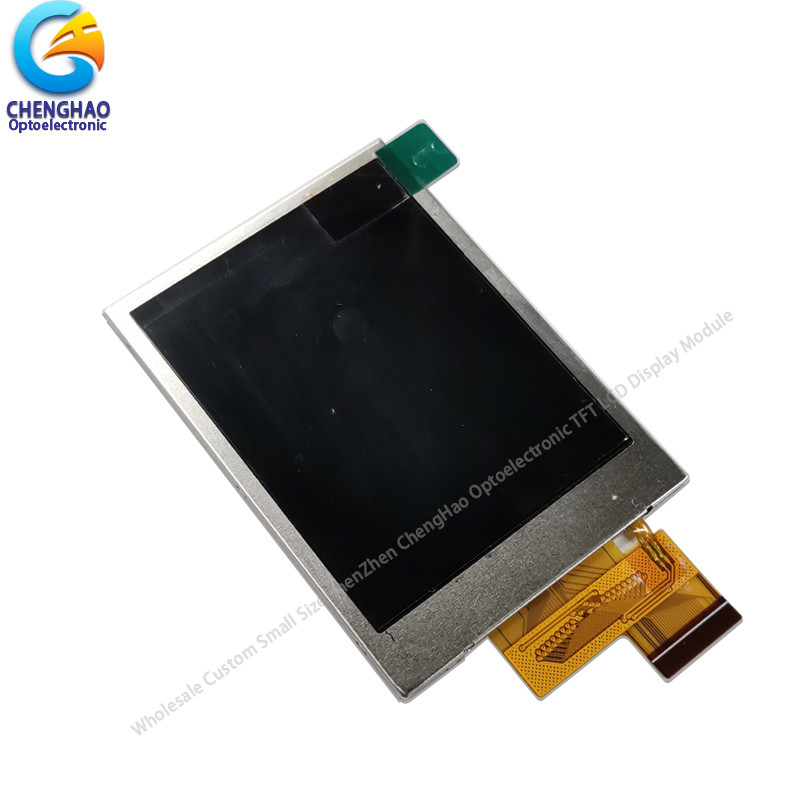

2.4 Inch Custom Lcd Screen 39 Pin I80 System 8 / 9 / 16 / 18 Bit Interface Small Lcd Module



1. Specification



Display type 2.4" Tft Lcd
Backlight tube 4 White LED In Serial
Brightness (cd/m²) 300
Backlight life (h) >20,000
Contrast 800:1
Viewing angle ( L/R/T/B) 80/80/80/80







2. Description



ChengHao Display model CH240QV47A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 2.4 ( vertical screen ) inch diagonally measured active display area with 240(RGB)x320 resolution.
The driver used for this project is the ST7789V and can display 16M/262K/65K (optional) colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support i80-system 8/9/16/18-bit interface interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.





3. Drawings



Notes:
(1) Display Type : 2.4" Tft
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ST7789
(4) Polarizer Mode : IPS / Transmissive / Normally Black
(5) Operating Temp : -10~60 ℃
(6) Storage Temp : -20~70 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
