Product Name: Outdoor Lcd Display Panel Driver IC: ST7789V
Module Size: 42.72(W)×60.26(H)×2.3(T) Mm Active Area: 36.72(W)×48.96(H) Mm
Interface: 6-/16-/18-bitRGB Interface Back Light: 4 White LED In Parallel
High Light:

MCU Ctp IPS LCD Panel

,

240x320 Dots IPS LCD Panel

,

3 Lines Ultra Thin Lcd Screen

Product Description





1. Specification



ITEM STANDARD VALUES UNITS
LCD type 2.4’’TFT --
Dot arrangement 240(RGB)× 340 dots
Driver IC ST7789V --
Module size 42.72(W)×60.26(H)×2.3(T) mm
Active area 36.72(W)×48.96(H) mm
Dot pitch 0.153(W)×0.153(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 4 White LED In Parallel --
Weight TBD g


2. Quick Detail

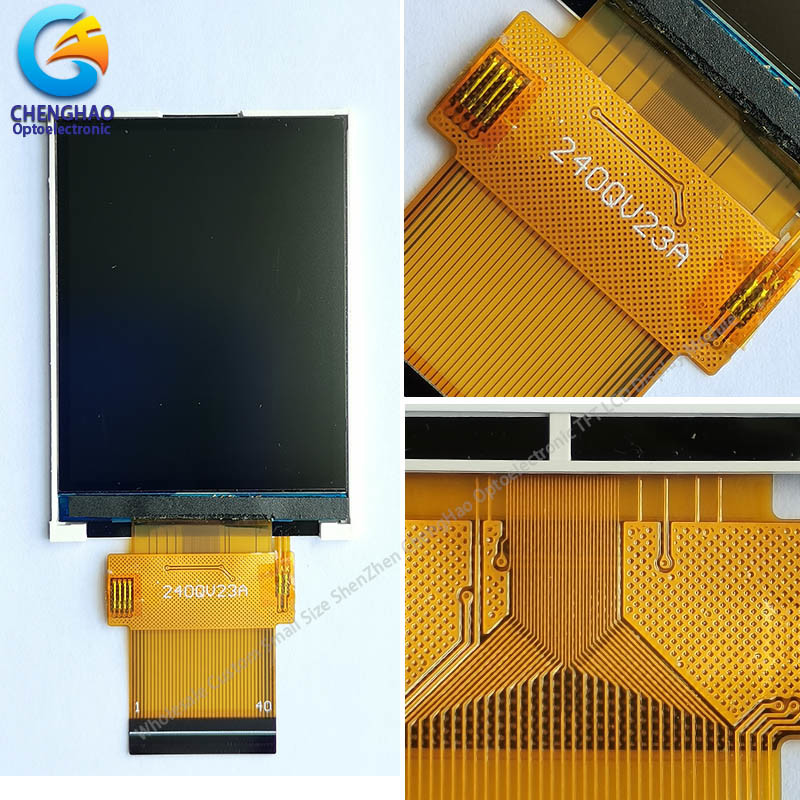

* LCD name: 2.4" Outdoor Lcd Display Panel Factory Wholesale 3 Lines 9bit SPI Ultra Thin Lcd Screen
* Part No.: CH240QV23A
* Size.: 2.4 inch
* Display type: 2.4"TFT
* Display colors: 65k/262k
* Resolution (pixels):  240(RGB)*320 dots
* Pixel pitch: 0.153(W)×0.153(H)mm
* Viewing direction: 6 o’clock
* Controller IC:  ST7789V
* Display mode: TN / Transmission/ Normally White
* Overall size: 42.72(W)×60.26(H)×2.3(T)mm
* Active Area: 36.72(W)×48.96(H)mm
* Luminance: 300nits
* Contrast:  500 : 1


* Interface type:

4-lines_8bit / 3-lines_9bit SPI
8-/9-/16-/18-bit8080system interface
6-/16-/18-bit RGB interface
* Pin NO.: 45pins


* Pin pitch: 0.5mm
* Connecting type: Connector type
* Backlight type and color: 4 White LED In Parallel
* LED Life span: 20000h

* With touch panel: No

* Touch Panel type: Capacitive Touch Panel / Resistive Touch Panel





3. Drawings



Notes:
(1) Display Type : 2.4" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ST7789V
(4) Polarizer Mode : Transmissive/ Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
