320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH240QV47A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| LCD Type: | 2.4 Inch | Active Area: | 36.72(W)×48.96(H) Mm |
|---|---|---|---|
| Dotpitch: | 0.153(W)×0.153(H) Mm | Interface: | I80-system8/9/16/18-bitinterface |
| Operating Temperature: | -10~+60 ℃ | Storage Temperature: | -20~+70 ℃ |
| Back Light: | 4White LED InSerial | Color: | 65k/262k |
| Connection: | Connector | Pin Number: | 39 Pin |
| Highlight: | SPI RGB IPS LCD Display,MCU 2.4 Inch IPS LCD Display,ST7789V Transparent Tft Display |
||
Product Description
SPI Small Lcd Display Module SPI+RGB / MCU Multi-Interface 2.4 Inch Transparent Tft
1.Product parameter
| ITEM | STANDARD VALUES |
| LCD type | 2.4’’TFT |
| Dot arrangement | 240(RGB)×320 dots |
| Color filter array | RGB vertical stripe |
| Display mode | IPS/Transmissive/NormallyBlack |
| Viewing Direction | 80/80/80/80 |
| Driver IC | ST7789V |
| Dotpitch | 0.153(W)×0.153(H) |
| Interface | i80-system8/9/16/18-bitinterface |
| Operating temperature | -10~+60 ℃ |
| Storage temperature | -20~+70 ℃ |

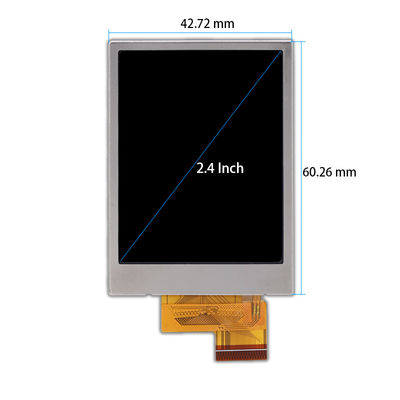

2. Product Drawings
3.Product Description
ChengHao Display model CH240QV47A is a color active matrix thin film transistor (TFT) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel,
a driving IC, a back-light and FPC.
This TFT LCD has a 2.4 (Vertical screen) inch diagonally measured active display area with 240*3(RGB)*320
resolution.
The driver used for this project is the HX8238D or compatible and can display 65k/262k colors by R.G.B. signal
input. The driver is mounted on the glass and the interconnection via FPC including components to drive the
display module.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and
FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
TFT LCDs (Thin Film Transistor LCDs) give your product a beautiful appearance with high
-resolution, full-color graphics. Our modern, automated LCD factories can customize them
for extreme temperature functionality, sunlight readability, custom FPC, custom backlight,
and other value-added features to suit your needs. Whether you need a stand-alone display
or fully integrated assembly with touch and cover lens, our experienced team can develop
the right solution for your project
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
