GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH430WV10A-CT

Detail Information

LCD Type: 4.3"TFT+CTP TFTDriver IC: ST7701S
Surface Treatment: 6H CTP Driver IC: GT911
Module Size: 66.26(W)×113.9(H)×3.55(T) Mm TFT/CTPActive Area: 56.16(W)×93.6(H) Mm
Dotpitch: 0.117(W)×0.117(H) Mm
Highlight:

GT911 CTP IPS LCD Display

,

480x480 IPS LCD Display

,

Tft Lcd Capacitive Touchscreen ST7701S

Product Description

480*480 IPS LCD Display Color Tft Lcd Capacitive Touchscreen 40 Pin

Lcd Touch Screen Module



GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 0

LCD type 4.3’’TFT+CTP
Dot arrangement 480×(RGB)×800 dots
Color filter array RGB vertical stripe
TFTDriver IC ST7701S
CTPtype G+F+F
Surface Treatment 6H
CTP Driver IC GT911
Module size 66.26(W)×113.9(H)×3.55(T) mm
TFT/CTPActive area 56.16(W)×93.6(H) mm
Dotpitch 0.117(W)×0.117(H) mm





GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 1

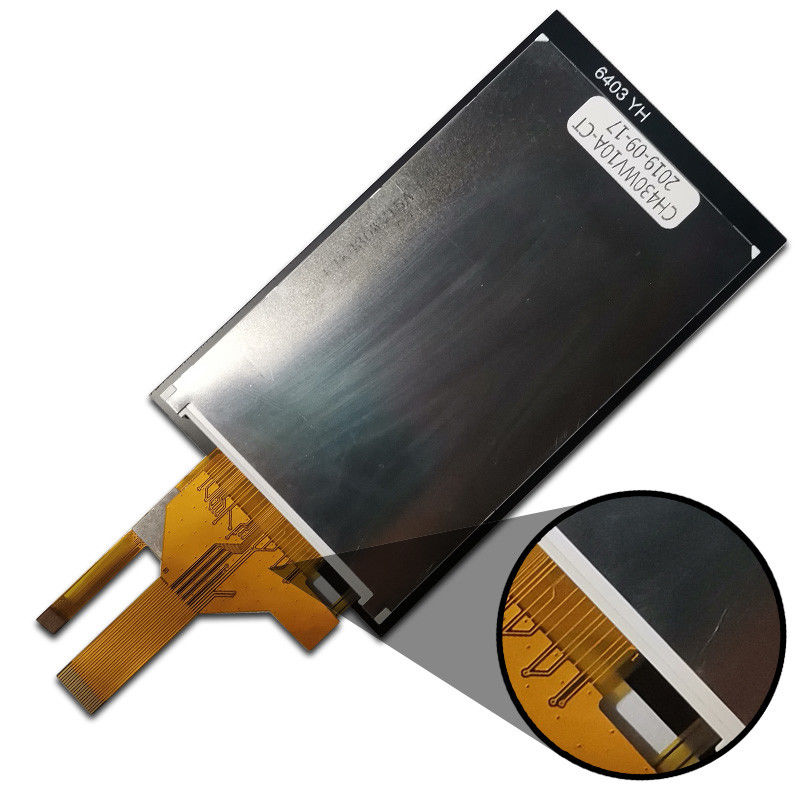

ChengHao Display model CH430WV10A-CT is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model

is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch

panel and FPC.

This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WVGA (480

horizontal by 800 vertical pixel) resolution.

The driver used for this project is the ST7701S and can display 16M colors by 24 bit R.G.B. sig

-nal input. The driver is mounted on the glass and the interconnection via FPC including compon

-ents to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying

back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.



GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 2

GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 3



GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 4



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 5







GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 6















GT911 CTP 480x480 IPS LCD Display Tft Lcd Capacitive Touchscreen ST7701S 7
