250nit 480x272 Resistive LCD Display Module RGB 40 Pin 4.3 Inch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | 3.5 Inch |
|---|---|---|---|
| Certification: | ROHS / ISO9001 / CE | Model Number: | CH350HV15-RT |
|
Detail Information |
|||
| LCD Type: | 3.5" TFT | Dot Arrangement: | 320(RGB)× 480 |
|---|---|---|---|
| Color Filter Array: | RGB Vertical Stripe | Display Mode: | TN / Transmission / Normally White |
| Viewing Direction: | 6 O’clock | Driver IC: | HX8357D |
| High Light: | Spi Rgb Resistive LCD Display,320x480 Mcu Resistive LCD Display,HX8357D Resistive Touch LCD Monitor |
||
Product Description

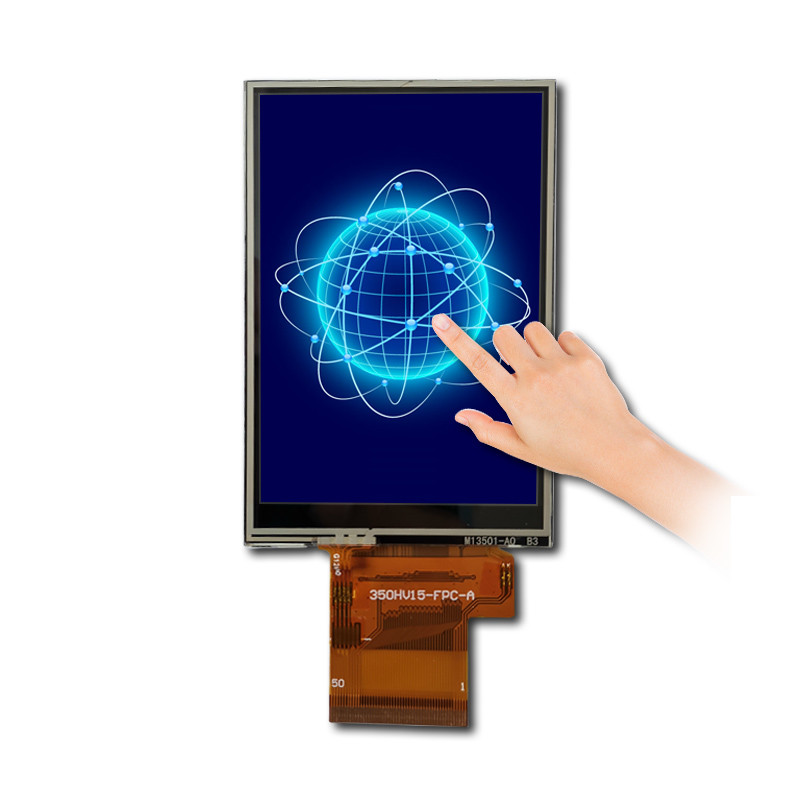

3.5 Incher Tn Resistive LCD Display 320x480 Resolution And Compatible
Mcu Spi Rgb Multi-Interface
ChengHao Display model CH350HV15A-T is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This mo
-del is composed of a TFT LCD panel, a driving circuit, a high brightness back-light, a resis
-tive touch screen and FPC.
The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch
diagonally measured active display area with HVGA (320 horizontal by 480 vertical pixel) reso
-lution.
The driver used for this project is the Himax HX8357D or compatible and can display 262K
colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnec
-tion via FPC including components to drive the display module. Support SPI, MCU, SPI +
RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modi
-fying FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch TFT LCD Display | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch TFT LCD Display | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch TFT LCD Display | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch TFT LCD Display | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch TFT LCD Display | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch TFT LCD Display | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch TFT LCD Display | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch TFT LCD Display | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch TFT LCD Display | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch TFT LCD Display | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch TFT LCD Display | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch TFT LCD Display | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch TFT LCD Display | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch TFT LCD Display | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
