Tablet PC TFT 300nits TFT LCD Resistive Touchscreen White LED Backlight

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 1.77 inch
Certification: ROHS、ISO9001、CE Model Number: CH180T001B-T
Document: Product Brochure PDF

Detail Information

Size: 1.77 Inch Display Mode: TN/Transmissive/Normally White
Module Size: 34.7(W)*46.7(H)*3.5(T)mm Active Area: 31.832(W)*41.42(H)mm
Brightness: 300nits Interface: I80-system 8-bit Interface
Touth: Resistive Touch Operating Temperature: -10 ~~ +60
Storage Temperature: -30 ~ ~+80 Number Of Dots: 128*3(RGB)*160
Highlight:

300nits TFT LCD Resistive Touchscreen

,

300nits High Resolution Touch Screen

,

1.77 Inch TFT LCD Resistive Touchscreen

Product Description

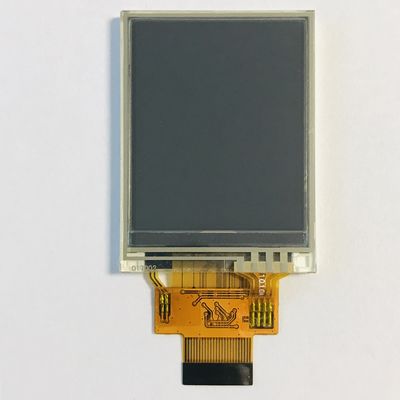

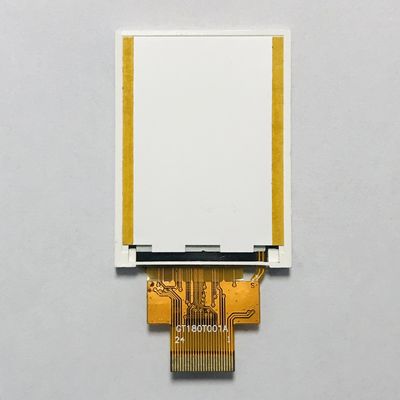

1.77 Inch TFT 300cd TFT LCD Resistive Touchscreen White LED Backlight

1.77"TFT RTP Resistive Touch Tft Lcd Screen TN Angle



Q1 : Are you manufactory or trade company?

A1: Shenzhen Chenghao Opelectronics Co., Ltd is a manufactory, We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q2: What payment methods you support ?

A2: We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and bank transfer.

Q3: What express service can I choose ?

A3: We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Q4: Could you test my order before shipping ?

A4: Yeah , Don't worry , All the order will be tested ok before shippment .



Specification:

MODEL NO.

CH180T001B-T

Module type

1.77"TFT + RTP

Display Mode

TN/Transmissive/Normally white

Number of Dots

128*3(RGB)*160

Viewing Direction

6 o'clock

Gray Scale Inversion Direction

12 o'clock

Module size

34.7(W)*46.7(H)*3.5(T)mm

TFT Active area

31.832(W)*41.42(H)mm

TFT Dot pitch

0.219(W)*0.219(H)mm

Interface

i80-system 8-bit interface

Backlight Type

White LED

Luminace

300cd/m2



Drawing:

Tablet PC TFT 300nits TFT LCD Resistive Touchscreen White LED Backlight 0



Prduct Application​:

Chenghao Optoelectronics focusing on the production and development of color TFT LCD modules, can provide one-stop color TFT module solutions for various shapes, and can change FPC, pin definition, driver and motherboard according to customers' requirements. High voltage or low voltage can be achieved, the working temperature can be achieved ultra-wide temperature up to -40℃-90℃, the viewing angle can be achieved from 6:00 O’clock to full IPS.



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
