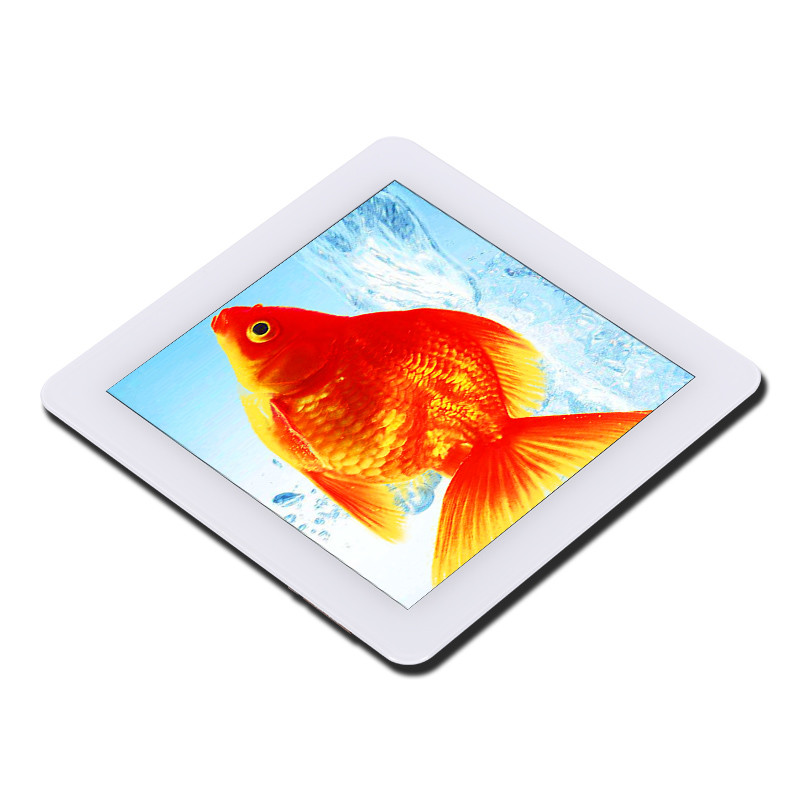

4 Inch 0.8 VCI Ips Tft Display Ctp ISO9001 With I2c Interface

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH400WV17A-CTW

Detail Information

Module Type: 3.95 Inches Input Low Voltage: 0.3 V(max))
Input High Voltage: 0.7 V (min)) Input Voltage: -0.3~0.5 V
Output High Voltage: 0.8 VCI(min) Output Low Voltage: 0.2VCI(max))
Storage Humidity: 20~90%RH I/O Leak Current: -0.1~1 UA
High Light:

0.8 VCI Ips Tft Display

,

I2c Ips Tft Display

,

ISO9001 Ips Touchscreen Display

Product Description

4 Inch Ips Tft Color Display All Viewing Angle And Ctp With I2c Interface

4 Inch 0.8 VCI Ips Tft Display Ctp ISO9001 With I2c Interface 0



MODEL NO. CH400WV17A-CTW
Input Low Voltage 0.3 V(max))
Input High Voltage 0.7 V (min))
Input Voltage -0.3~0.5 V
Output High Voltage 0.8 VCI(min)
Output Low Voltage 0.2VCI(max))
Storage Humidity 20~90%RH
I/O Leak Current -0.1~1 uA


4 Inch 0.8 VCI Ips Tft Display Ctp ISO9001 With I2c Interface 1



ChengHao Display model CH400WV17A-CTW is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model

is composed of a TFT LCD panel, a driving IC, a back-light, a capacitive touch panel and FPC.

This TFT LCD has a 4 (Square screen) inch diagonally measured active display area with

480*480resolution.

The driver used for this project is the FT5426 and can display 16.7M colors by 24 bit R.G.B. sig

-nal input. The driver is mounted on the glass and the interconnection via FPC including compon

-ents to drive the display module. Support SPI+RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying

back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.





4 Inch 0.8 VCI Ips Tft Display Ctp ISO9001 With I2c Interface 2



4 Inch 0.8 VCI Ips Tft Display Ctp ISO9001 With I2c Interface 3





4 Inch 0.8 VCI Ips Tft Display Ctp ISO9001 With I2c Interface 4



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive
