2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 50Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 2.1 inches
Certification: ROHS、ISO9001、CE Model Number: CH210WV01A-2

Detail Information

Size: 2.1 Inches Dot Arrangement: 480*480
Display Mode: Transmissive/Normally Black/IPS Active Area: φ53.28 M
Luminance: 250-300nits Interface: SPI+RGB
High Light:

2.1" TFT IPS LCD Display

,

SPI RGB IPS LCD Display

,

480x480 Pixel Circular LCD Display

Product Description

Wholesale Custom 480x480 Pixel IPS LCD Display With SPI+RGB Interface

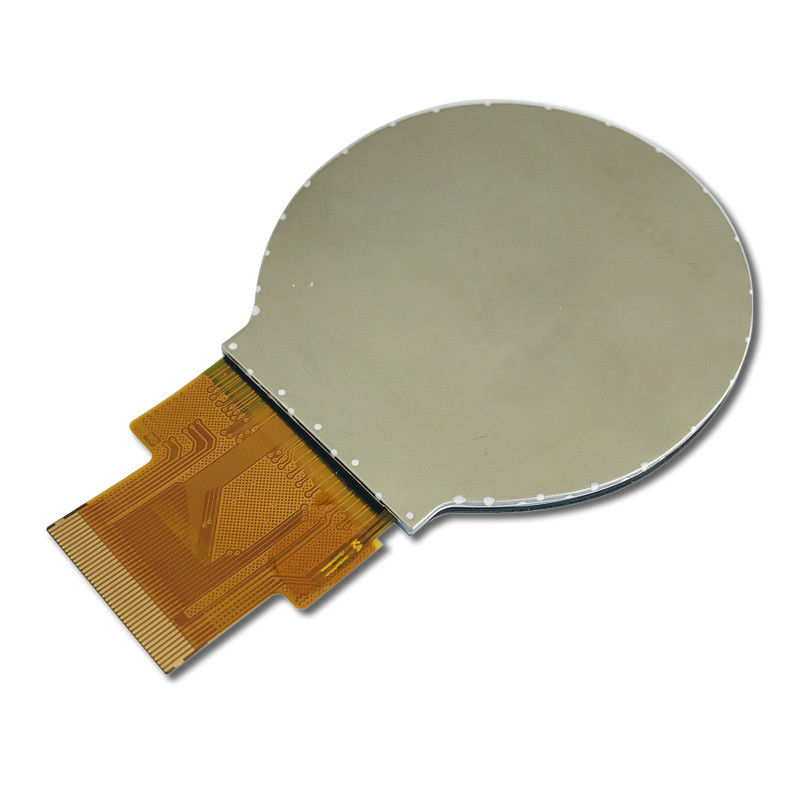

2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular 0

MODEL NO. CH210WV01A-2
Module type 2.1" TFT
Display Mode IPS-Transmissive -Normally Black
Number of Dots 480x3(RGB)x480
Viewing Direction ALL
Module size 56.18(W)x59.71(H)x2.3(T)mm
TFT Active area φ53.28 mm
Interface SPI+RGB
Luminace 300 nit



2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular 1

ChengHao Display model CH210WV01A-2 is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This

model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a cap

-acitive touch panel and FPC.

This TFT LCD has a 2.1 ( Circular Screen) inch diagonally measured active display area with

480*480 Pixel.

The driving IC is the ST7701S and can display 262K colors by 3line SPI or R.G.B. signal input.

The driver is mounted on the glass and the interconnection via FPC including components to

drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modi

-fying back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.



2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular 2

2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular 3




Packaging & Shipping

Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular 4

Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



2.1" TFT SPI RGB IPS LCD Display 480x480 Pixel Circular 5
