320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | CHENGHAO |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH430WQ12D |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Module Type: | 4.3 Inch | Display Mode: | IPS/Transmissive/Normally Black |
|---|---|---|---|
| Viewing Direction: | All | Number Of Dots: | 480*3(RGB)*272 |
| Module Size: | 105.5(W)*67.2(H)*3.0(T)mm | TFT Active Area: | 95.04(W)*53.856(H)mm |
| Interface: | RGB | Luminace: | 300cd/m2 |
| Highlight: | Transmissive IPS LCD Display,4.3 Inch IPS LCD Display,480x272 Ips Lcd Touchscreen |
||
Product Description

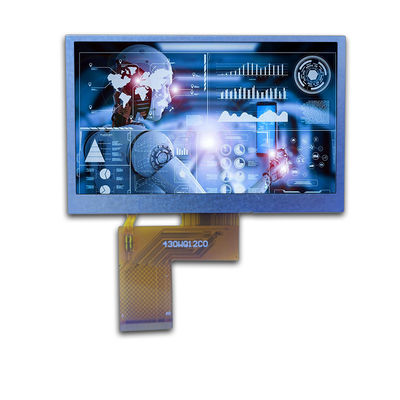

4.3 inch Transmissive Normally black IPS LCD Display 480*272 All
Viewing Direction
| MODEL NO. | CH430WQ12D |
| Module type | 4.3"TFT |
| Display Mode | IPS/Transmissive/Normally black |
| Number of Dots | 480*3(RGB)*272 |
| Viewing Direction | ALL |

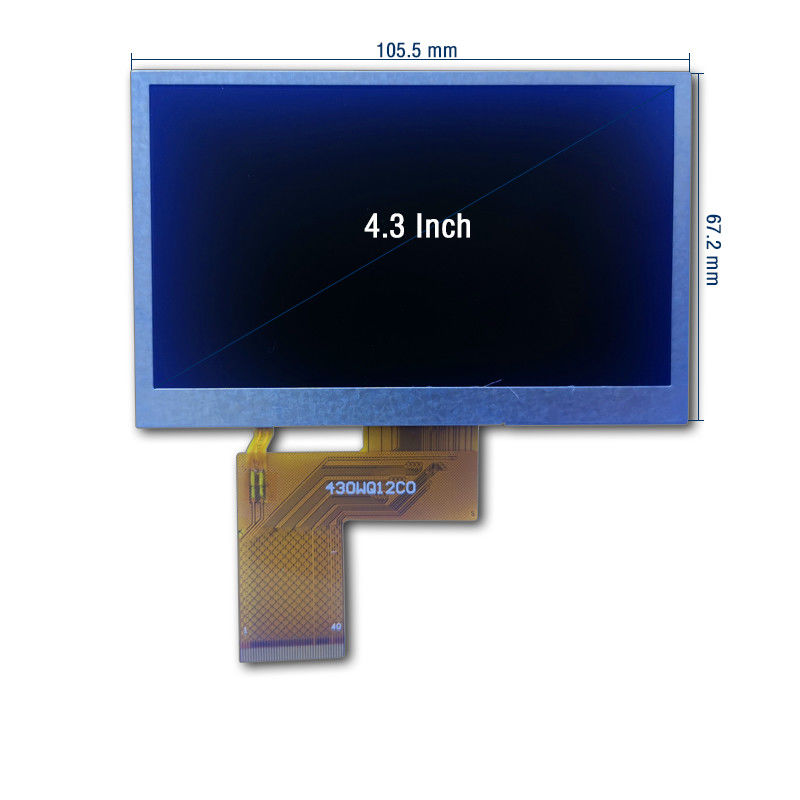

| Module size | 105.5(W)*67.2(H)*3.0(T)mm |
| TFT Active area | 95.04(W)*53.856(H)mm |
| Interface | RGB |
| Luminace | 300cd/m2 |
ChengHao Display model CH430WQ12D is a color active matrix thin film transistor (TFT) li
-quid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This mo
-del is composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WQVGA
(480 horizontal by 272 vertical pixel) resolution.
The driver used for this project is the ST7282 or compatible and can display 16M colors by
24 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via
FPC including components to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modi
-fying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
