7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: ChengHao LCD
Certification: ROHS 、ISO9001 、CE Model Number: CH700WV03A-T

Detail Information

Module Type: 7"TFT + RTP Display Mode: TN/Transmissive/Normally White
Number Of Dots: 800*3(RGB)*480 Viewing Direction: 12 O'clock
Gray Scale Inversion Direction: 6 O'clock Module Size: 164.9(W)*100.0(H)*7.1(T)mm
TFT Active Area: 154.08(W)*85.92(H)mm TFT Dot Pitch: 0.1926(W)*0.1790(H)mm
Interface: 24-bit RGB Backlight Type: White LED
Luminace: 700 Cd/㎡
High Light:

High Backlight Resistive LCD Display

,

Resistive LCD Display 800×480

,

700cd/M2 Resistive Touch Screen

Product Description

7 Inch High Backlight Resistive LCD Display Touch Screen 800*480

12 O'Clock 24-Bit RGB Interface 700cd/M2 Luminace

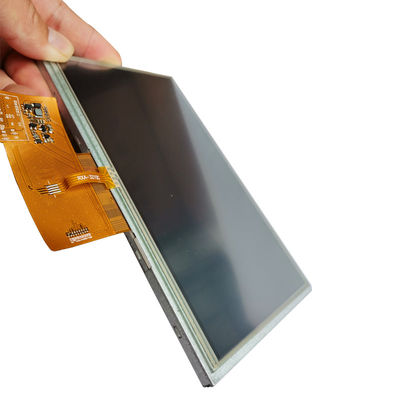

7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2 0



MODEL NO. CH700WV03A-T
Module type 7"TFT + RTP
Display Mode TN/Transmissive/Normally white
Number of Dots 800*3(RGB)*480
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Module size 164.9(W)*100.0(H)*7.1(T)mm
TFT Active area 154.08(W)*85.92(H)mm
TFT Dot pitch 0.1926(W)*0.1790(H)mm
Interface 24-bit RGB
Backlight Type White LED
Luminace 700cd/m2



Merchant notes:

We are Lcd factory manufacturer, so all our products can be equipped with resistive touch

screen or capacitive touch screen For customer, in which the capacitive touch screen can

be used for air bonding or OCA bonding. If our products meet your purchasing needs, please

contact our customer service and we will do it for you Provide satisfactory products and services



7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2 1

    ChengHao Display model CH700WV03B-T is a color active matrix thin film

transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT

as a switching device. This model is composed of a TFT LCD panel, a driving

IC, a high brightness back-light, a resistive touch panel and FPC.

This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area

with WVGA (800 horizontal by 480 vertical pixel) resolution.

    The driver used for this project is the Himax or compatible and can display

16M colors by 24 bit R.G.B. signal input. The driver is mounted on the glass

and the interconnection via FPC including components to drive the display

module. Support RGB interface.

    In addition, FPC can also be customized according to customer requirements,

such as modifying FPC and back-light structure, interface definition, etc.

    RoHS Compliance & Halogen Free.



7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2 2


7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2 3

7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2 4







7 Inch High Backlight Resistive LCD Display 800×480 24 Bit RGB 700cd/M2 5
