SPI 3.5 Inch RTP 280cd/m2 Resistive LCD Display 16 18 Bits

Minimum Order Quantity :	100 pcs	Price :	/
Packaging Details :	All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements	Delivery Time :	7-15 working days
Payment Terms :	T/T	Supply Ability :	200Kpcs/month

Place of Origin:	ShenZhen, China	Brand Name:	3.5"
Certification:	ROHS、ISO9001、CE	Model Number:	CH350HV15-T
Document:	Product Brochure PDF

Detail Information
MODEL NO.:	CH350HV15A-T	Module Type:	3.5"TFT
Display Mode:	TN / Transmissive / Normally White	Number Of Dots:	320 * 3 *480
Viewing Direction:	6 O'clock	Gray Scale Inversion Direction:	12 O'clock
Module Size:	55.66 (W) * 85.04 (H) * 3.6 (T) Mm	TFT Active Area:	48.96 (W) * 73.44 (H) Mm
TFT Dot Pitch:	0.153 (W) * 0.153 (H) Mm	Interface:	4-lines_8bit / 3-lines_9bit SPI 8 / 9 / 16 / 18bit 8080 System Interface 16 / 18bit RGB Interface
Backlight Type:	White LED	Luminace:	280cd/m2
Highlight:	RTP Resistive LCD Display , 280cd/m2 Resistive LCD Display , SPI 3.5 Inch Lcd Tft Display

Product Description

3.5 Inch 3line 4Line SPI Interface Resistive LCD Display 6bits 8bits 9Bits 16Bits 18Bits Interface

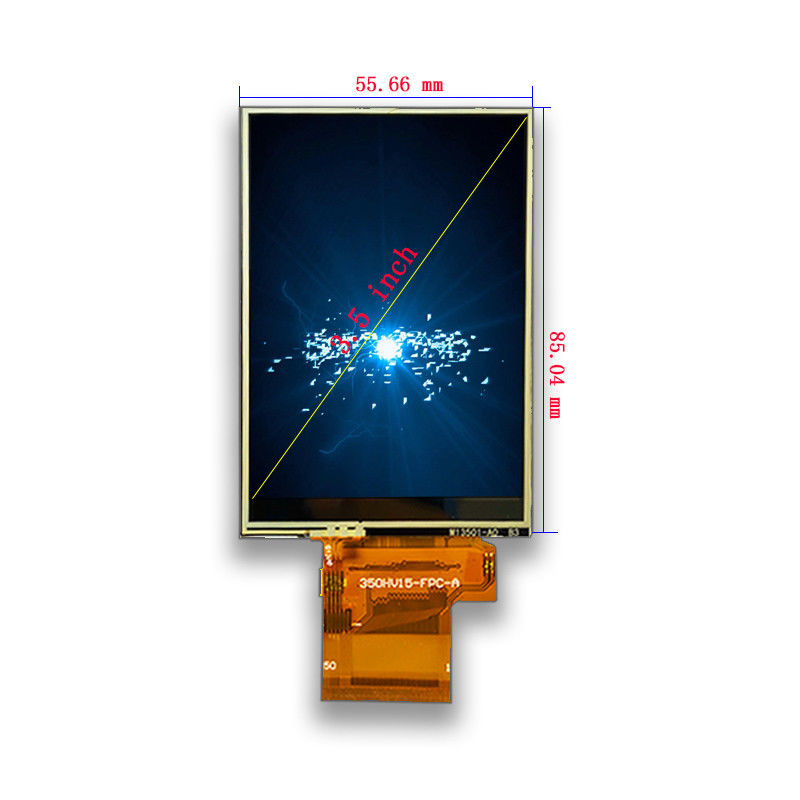

SPI 3.5 Inch RTP 280cd/m2 Resistive LCD Display 16 18 Bits 0

MODEL NO.	CH350HV15A-T
Module type	3.5"TFT + RTP
Display Mode	TN/Transmissive/Normally white
Number of Dots	3203(RGB)480
Viewing Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Module size	55.66(W)85.04(H)3.6(T)mm
TFT Active area	48.96(W)*73.44(H)mm
TFT Dot pitch	0.153(W)*0.153(H)mm
Interface	4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080 system interface 16-/18-bit RGB interface
Backlight Type	White LED
Luminace	280cd/m2

SPI 3.5 Inch RTP 280cd/m2 Resistive LCD Display 16 18 Bits 1

SPI 3.5 Inch RTP 280cd/m2 Resistive LCD Display 16 18 Bits 2

SPI 3.5 Inch RTP 280cd/m2 Resistive LCD Display 16 18 Bits 3

Module Type	Display Area	Display Mode
1.44 inch TFT LCD Display	25.50 * 26.50 mm	Normally White IPS, Transmissive
1.44 inch TFT LCD Display	25.50 * 26.50 mm	Normally White TN, Transmissive
1.50 inch TFT LCD Display	29.76 * 22.32 mm	Normally Black IPS, Transmissive
1.54 inch TFT LCD Display	27.72 * 27.72 mm	Normally Black IPS, Transmissive
1.54 inch TFT LCD Display	27.74 * 27.74 mm	Normally Black IPS, Transmissive
1.77 inch TFT LCD Display	28.03 * 35.04 mm	Normally White TN, Transmissive
1.80 inch TFT LCD Display	28.03 * 35.04 mm	Normally White TN, Transmissive
2.00 inch TFT LCD Display	30.60 * 40.80 mm	Normally White TN, Transmissive
2.10 inch TFT LCD Display	Circular display area	Normally White IPS, Transmissive
2.31 inch TFT LCD Display	46.75 * 35.06 mm	Normally White TN, Transmissive
2.40 inch TFT LCD Display	36.72 * 48.96 mm	Normally White TN, Transmissive
2.40 inch TFT LCD Display	36.72 * 48.96 mm	Normally White IPS, Transmissive
2.80 inch TFT LCD Display	43.20 * 57.60 mm	Normally White TN, Transmissive
2.80 inch TFT LCD Display	43.20 * 57.60 mm	Normally White IPS, Transmissive
3.00 inch TFT LCD Display	36.72 * 65.28 mm	Normally Black IPS, Transmissive
3.20 inch TFT LCD Display	48.60 * 64.80 mm	Normally White TN, Transmissive
3.50 inch TFT LCD Display	70.08 * 52.56 mm	Normally White TN, Transmissive
3.50 inch TFT LCD Display	70.08 * 52.56 mm	Normally Black IPS, Transmissive
4.00 inch TFT LCD Display	51.84 * 86.4 mm	Normally Black IPS, Transmissive
4.00 inch TFT LCD Display	71.86 * 70.18 mm	Normally Black IPS, Transmissive
4.30 inch TFT LCD Display	95.04 * 53.86 mm	Normally White TN, Transmissive
4.30 inch TFT LCD Display	95.04 * 53.86 mm	Normally Black IPS, Transmissive
5.00 inch TFT LCD Display	110.88 * 62.83 mm	Normally White TN, Transmissive
5.00 inch TFT LCD Display	108.00 * 64.8 0mm	Normally Black IPS, Transmissive
5.50 inch TFT LCD Display	68.04 * 120.96 mm	Normally Black IPS, Transmissive
6.00 inch TFT LCD Display	74.52 * 132.48 mm	Normally Black IPS, Transmissive
7.00 inch TFT LCD Display	154.08 * 85.92 mm	Normally White TN, Transmissive
7.00 inch TFT LCD Display	153.6 * 90 mm	Normally White TN, Transmissive
7.00 inch TFT LCD Display	154.21 mm * 85.92 mm	Normally Black IPS, Transmissive
8.00 inch TFT LCD Display	107.64 * 172.22 mm	Normally Black IPS, Transmissive
9.00 inch TFT LCD Display	196.61 * 114.15 mm	Normally White TN, Transmissive
10.10 inch TFT LCD Display	135.36 * 216.58 mm	Normally Black IPS, Transmissive

SELLER TIPS :

The list only contains the size information of some of our products. If the information
you need is not in the list, please consult our customer service
