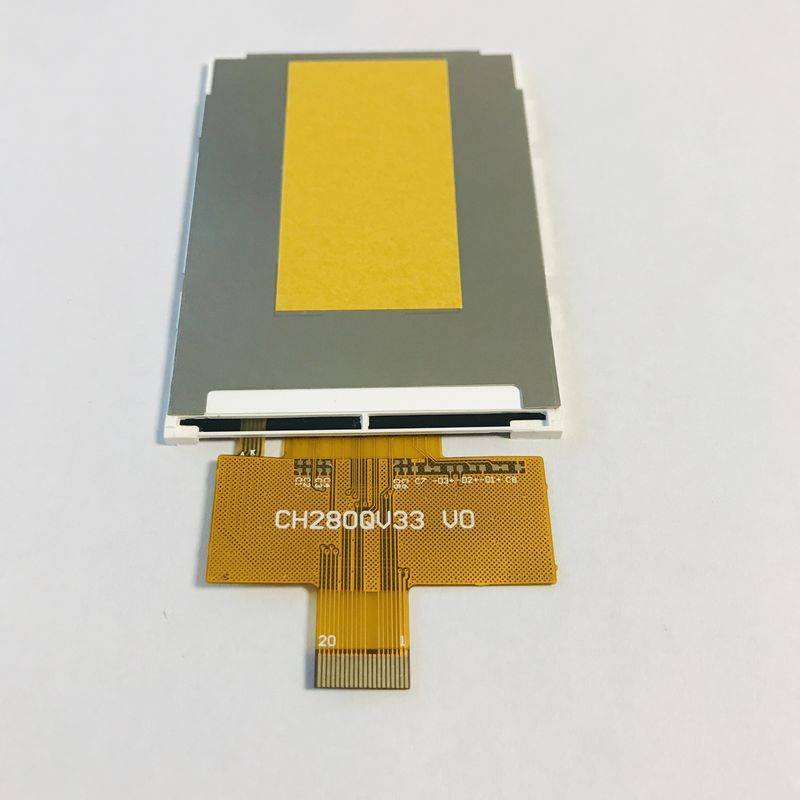

Automotive 2.8 Inch TFT 3.3V 50PIN IPS LCD Module Drive IC ILI9341

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 200Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 2.8 inch TFT
Certification: ROHS、ISO9001、CE Model Number: CH280QV22A-T
Document: Product Brochure PDF

Detail Information

Size: 2.8 Inch Dot Arrangement: 240*3(RGB)*320
Display Mode: TN/Transmissive/Normally White Module Size: 50.0(W)*69.2(H)*3.5(T)mm
TFT Active Area: 43.2(W)*57.6(H)mm Brightness: 260 Cd/m²
Interface: SPI MCU RGB Operating Temperature: -20 + 70
Storage Temperature: -30 + 80
Highlight:

50PIN IPS LCD Module

,

ILI9341 TFT IPS Display

,

3.3V IPS LCD Module

Product Description

240x320 Color 2.8 Inch TFT 3.3V 50PIN IPS LCD Module Drive IC ILI9341



240x320 2.8' Color SPI Display Screen 2.8 Inch TFT ILI9341 LCD 2.8 TFT



2.8 inch TFT 240x320 LCD DISPLAY SCREEN MODULE ,We can not only customize the backlight brightness, but also customize the FPC interface, as well as capacitive touch and resistive touch.



LCD type 2.8’’TFT
Model CH280QV22A-T
Dot arrangement 240*3(RGB)*320
Display mode IPS/Transmissive/Normally black

Module size 50.0(W)*69.2(H)*3.5(T)mm
Active area 43.2(W)*57.6(H)mm
Dot pitch 0.18(W)*0.18(H)mm
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080-series system interface
16-/18-bit RGB interface
Operating temperature -20 ~ +70
Storage temperature -30 ~ +80
Back Light 6 White LED in serial
brightness 260CD/m2
Contrast 1000
Pin NO 50PIN
Input voltage 3.3v
Backlight 4LED in paralleling If=80 mA, Vf =3.2V
LED Life span 50000H
With touch panel or not yes
Touch type resistance



1. Strong team in TFT and p-cap design.
2. Faster pre-sales and after-sales service support. Support customers from product design to final product.
3. The company in line with the people-oriented, quality first, customer first business philosophy, and customer common rapid development. The company in line with the people-oriented, quality first, customer first business philosophy, and customer common rapid development.

Chenghao Optoelectronics Warm prompt:If you don't find the right one on Google platform, please contact us. Because we have too many LCD screen sizes and types, you may not be able to find them at the first time. tks.



Drawing:

Automotive 2.8 Inch TFT 3.3V 50PIN IPS LCD Module Drive IC ILI9341 0



Packaging & Shipping
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
