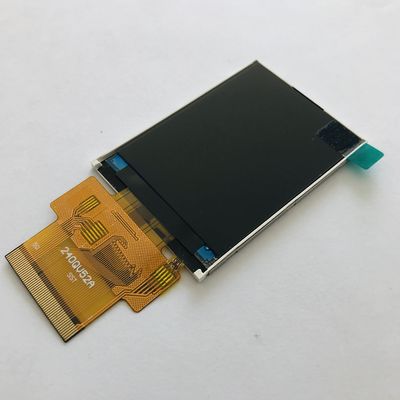

2.4 Inch 240*320 IC ILI9341V IPS LCD Panel SPI Interface Sunlight Readable

Minimum Order Quantity : 2PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 200Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 2.4"
Certification: ROHS、ISO9001、CE Model Number: CH240QV52A

Detail Information

Size: 2.4 ” Display Mode: IPS / Transmissive / Normally Black
Number Of Dots: 240*3(RGB)*320 Module Size: 42.72(W)*60.26(H)*2.3(T)mm
TFT Active Area: 36.72(W)*48.96(H)mm Interface: 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080 System Interface 16-/18-bit RGB Interface
Luminace: 300cd/m2 Operation Temperature: -20~70
Storage Temperature: -30~80
High Light:

ILI9341V IPS LCD Panel

,

300cd IPS LCD Panel

,

300cd TFT Color Display

Product Description

2.4 Inch 240*320 IC ILI9341V IPS LCD Panel SPI Interface Sunlight Readable



2.4 inch tft LCD 240*320 SPI interface IC NT7789V ILI9341V Sunlight Readable



1. LCD name: 2.4 inch 240*320, ST7789V, MCU&RGB interface, high brightness LCD panel
2. Part No.: CH240QV52A
3. Size.: 2.4 inch
4. With touch panel or not: NO,But we can add touch
5. Display type: IPS
6. Resolution (pixels): 240*3(RGB)*320
7. Pixel pitch: 0.153(W)*0.153(H)mm
8. Viewing direction: All
9. Controller IC: ST7789V
10. Display mode: Transmissive/ Normally White
11. Module size: 42.72(W)*60.26(H)*2.3(T)mm

12 TFT Active area: 36.72(W)*48.96(H)mm
13. Luminance: 300cd/m2
14. Contrast: 1000
15 Interface type: SPI/MCU/RGB
16. Pin NO.: 50pins
17. Pin pitch: 0.5mm
18. Connecting type: plugging type
19. Input voltage: 3.3V
20. Backlight type and color: LED backlight/white
21. Backlight: 4 LED in paralleling
If=80mA, Vf =3.2V
22. LED Life span: 50000h



Why Chenghao?

1. We are a professional designer manufacturer of LCD module and capacitive touch module.
2. We have all products through aging, high and low temperature test, to ensure the stability of products.
3. We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4. We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5. We have 3 production lines, with shipment of more than 1,000,000 pieces per year.
6. Our products can support long-term supply,Maximum supply cycle is 6 years.
7. We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.



drawing:

2.4 Inch 240*320 IC ILI9341V IPS LCD Panel SPI Interface Sunlight Readable 0



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.



Our services:

1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
