ROHS ISO9001 CE TFT LCD Module Free Viewing Angle Touch Screen

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV48-CT

Detail Information

Product Name: 2.4 Tft Lcd Module Display Display Mode: TN/Normally White/Transmissive
Number Of Dots: 240*320 Lcm Size: 2.4 Inch
Viewing Direction: Free Viewing Angle LCM Size: 42.72W)×60.26(H)×3.7(T) Mm
Active Area: 36.72(W)×48.96(H) Mm Dot Pitch: 0.153 (W)×0.153 (H) Mm
High Light:

ISO9001 TFT LCD Module


QVGA Touch Screen Module


240*320TFT Display Module

Product Description

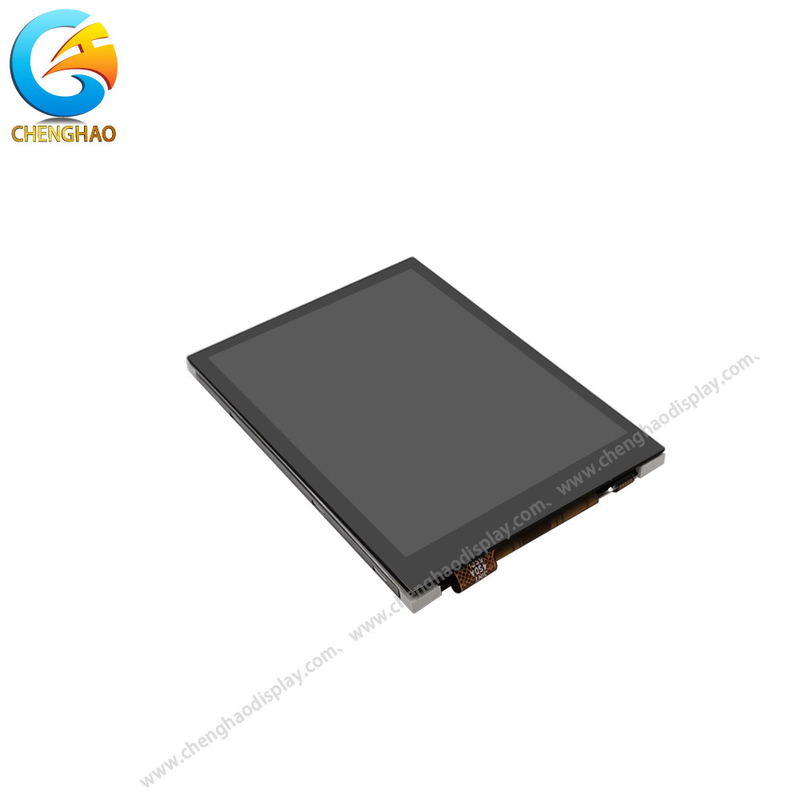

ROHS ISO9001 CE TFT LCD Module Free Viewing Angle Touch Screen


Free Viewing Angle Lcd Module Tft 2.4 Inch Qvga Touch Screen


Quick Detail of mipi lcd display

ROHS ISO9001 CE TFT LCD Module Free Viewing Angle Touch Screen 0

Keyword: tft lcd colour monitor

Display Type: 2.4”TFT+CTP

Display Size:2.4 inch lcd display

Supplier Type: Manufacturer

Brand Name:Chenghao / OEM

Touch Panel:Capacitive Touch Panel

Touch Panel Interface:I2C

Resolution: 240*320 dots


4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080-series system interface
SPI + 6-/16-/18-bit RGB interface
CTP Driver IC : FT6336
LCM size: 42.72W)×60.26(H)×3.7(T) mm
ROHS ISO9001 CE TFT LCD Module Free Viewing Angle Touch Screen 1
Active area: 36.72(W)×48.96(H) mm
Dot pitch: 0.153 (W)×0.153 (H) mm

Luminance: 300 cdm2

Viewing Angle:80/80/80/80  (L/R/U/D)

Operating temperature: -20 ~ +70
Storage temperature: -30 ~ +80
Back Light: 4 White LED In Parallel
Custom Service

2.Touch panel Type:RTP or CTP are optional

3.LCD Type:TN

4.Panel Size: 0.91 inch~10.1 inch

5.Touch Glass Cover :support customized




Description of lcd touch screen module

ROHS ISO9001 CE TFT LCD Module Free Viewing Angle Touch Screen 2

CH240QV48A-CT is a capacitive touch LCD module newly designed by Chenghao Optoelectronic. The brightness of the display is 300 cd/m2 (optional), and it can be used in a wide temperature environment (-20~+70°C). There is a 2.4 inch vertical screen display area of this ips capacitive touchscreen, the display screen can output video or pictures with 240*320 pixels. In addition, the display module not only supports all viewing angles, but also has a long service life (>30000H).



Specification of ips tft display


Screen Size 2.4"
Screen Ratio 3:4
Resolution 240*320 dots
Interface SPI/MCU/RGB (optional)
Viewing Angle Free Viewing Angle
Luminance 300 cd/m2 (optional)



Feature of ips lcd display


(1) Support multi-touch
CH240QV48-CT display is equipped with a capacitive touch panel on the surface, uses I2C interface for signal transmission, and supports multi-touch.
(2) Support Free Viewing Angle
Thanks to the design of IPS display mode, the viewing angle of this lcd module has been expanded to 80/80/80/80, and users can get clear vision when reading the screen at any angle.
(3) Support the use in wide temperature environment
(4) Support OEM/ODM customization
As an lcd module manufacturer, Chenghao Optoelectronic has its own technical team, which can provide customers with lcd customization solutions.



ROHS ISO9001 CE TFT LCD Module Free Viewing Angle Touch Screen 3
