5.0 Inch 40pin High Brightness LCD Monitor 480*272 dots For Medical

Product Description

5.0 Inch 40pin High Brightness LCD Monitor 480*272 Dots For Medical

High Brightness Lcd 5.0 Inch 480*272 40pin Lcd Module For Medical Lcd Monitor

Quick Details of tft display

Description of lcd display panel

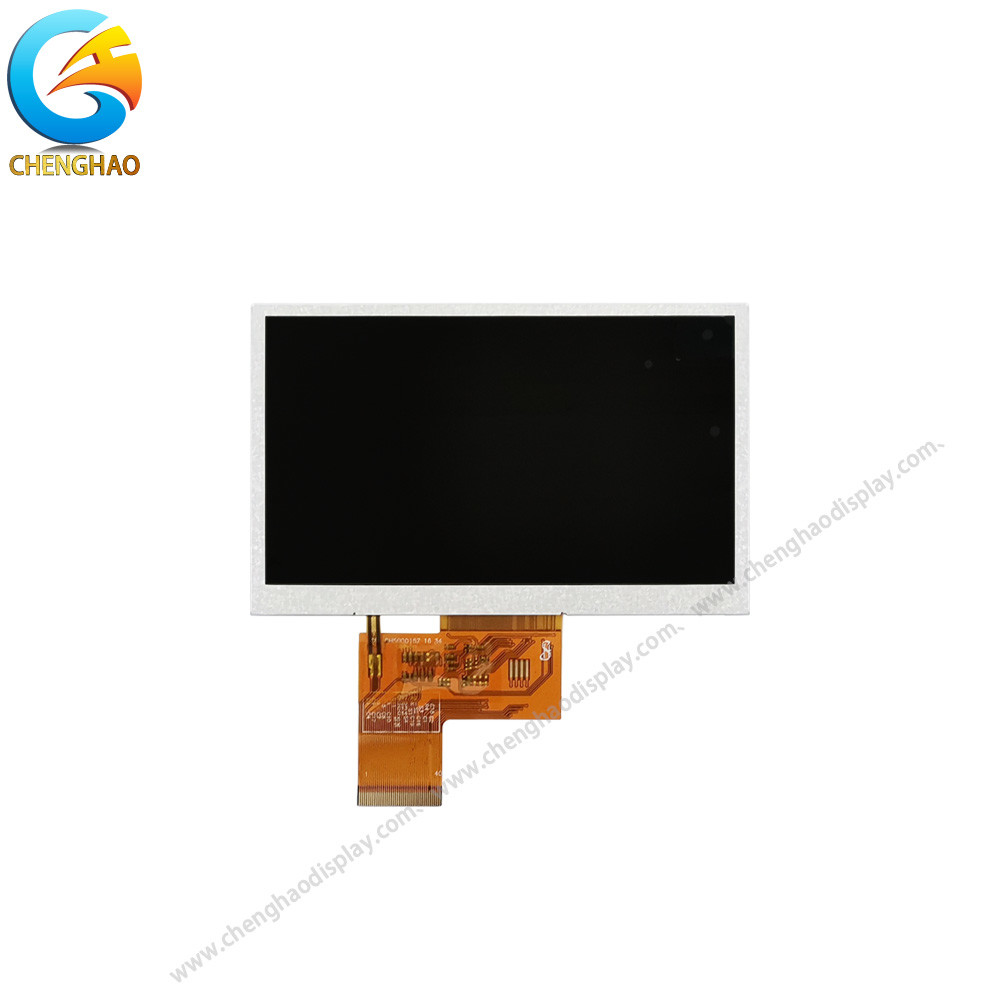

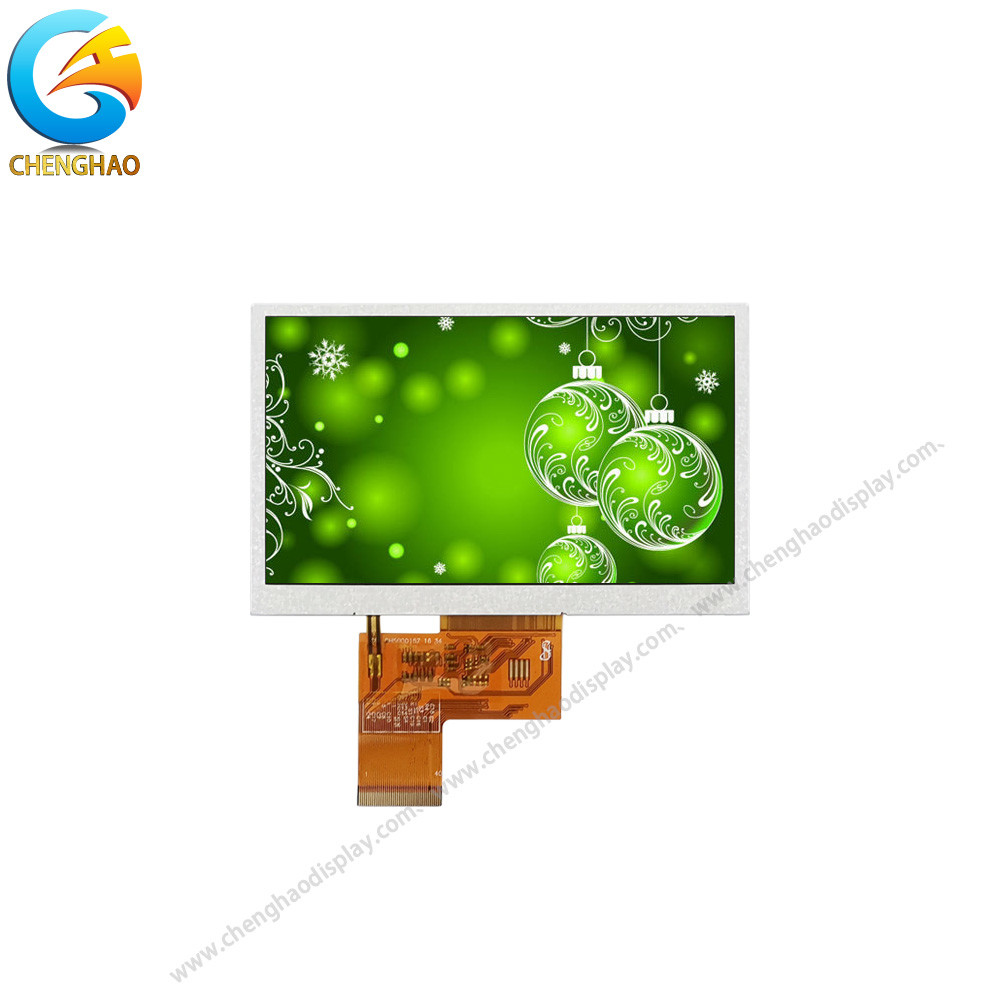

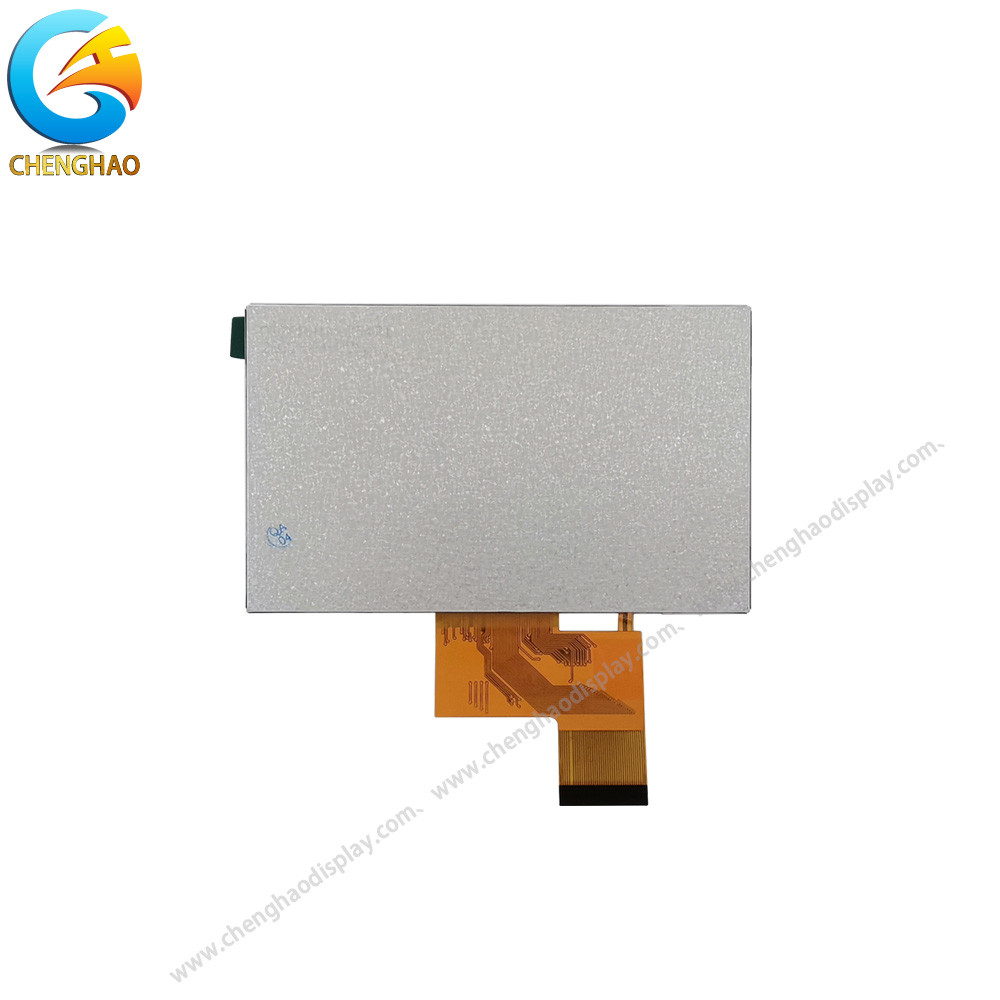

CH500WQ03B is a 5-inch Sunlight Readable TFT Display manufactured by Chenghao Lcd. The display provides excellent brightness, high resolution, and a 24-bit RGB interface to display vivid colors. The module is designed to work in extreme temperatures and can be applied in industrial equipment, medical equipment, office equipment, laboratory equipment, face recognition devices, and payment equipment.

Specification of color tft screen

Module Name: Sunlight Readable TFT Display
Module No.: CH500WQ03B
LCD Type: 5" TFT
Resolution: 480 * 272 dots
Viewing Direction: 12 o'clock
Module size: 120.7(W) × 75.8(H) × 2.9(T) mm
Active area: 110.88(W) × 62.832(H) mm
Dot pitch: 0.231(W) × 0. 231(H) mm
TFT Interface: 24 bit RGB interface
FPC Pin Number: 40 pins
Operating temperature: -20 ~ +70 ℃ (wide temperature)
Storage temperature: -30 ~ +80 ℃
Luminance: 1000 cd/m2 High Brightness (Optional)
Back Light: 18 White LEDs in serial
Backlight Color: White
Life Time: 20000 hours

Features of sunlight readable monitor

Sunlight readable with 1000 cd/m2 brightness
High resolution of 480 * 272 dots
Easy to use with 24-bit RGB interface
Withstands extreme temperatures from -20 ~ +70 ℃
Suitable for various applications, such as face recognition devices, industrial equipment, medical equipment, and payment equipment

Our Advantage of color tft screen

Chenghao Lcd is a leading manufacturer and supplier of TFT displays with industry and trade integration
We provide a one-stop liquid crystal display solution and support OEM and ODM services
Certificates available: RoHS, CE, FCC
One-year warranty service and remote online technical support available
Regular packing to ensure product safety during shipment
Fast delivery time within 7-15 working days

FAQ

What is the dimension of CH500WQ03B?
The module size is 120.7(W) × 75.8(H) × 2.9(T) mm, and the active area is 110.88(W) × 62.832(H) mm.

What is the luminance of CH500WQ03B?
The module provides a high brightness of 1000 cd/m2, which makes it sunlight readable.

What is the TFT interface type for CH500WQ03B?
The TFT interface type is a 24-bit RGB interface.

What is the storage temperature range for CH500WQ03B?
The storage temperature range for the module is -30 ~ +80 ℃.

What is the warranty period for CH500WQ03B?
The module comes with a one-year warranty from the date of purchase, and remote online technical support is also available.
