40pin SPI RGB LCD Display Module 5.0 inch Industrial TFT Display

Product Description

40pin SPI RGB LCD Display Module 5.0 inch Industrial TFT Display

5.0 Inch Industrial Tft Display 40 Pin SPI RGB 480x854 IPS Screen

Specification of industrial touch screen monitor

Description of full hd lcd display

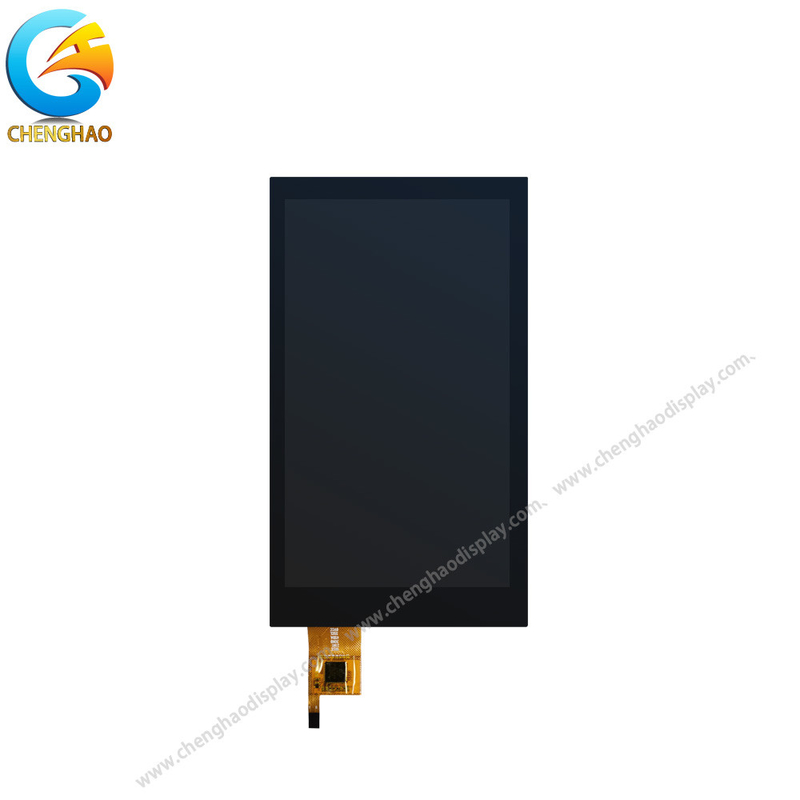

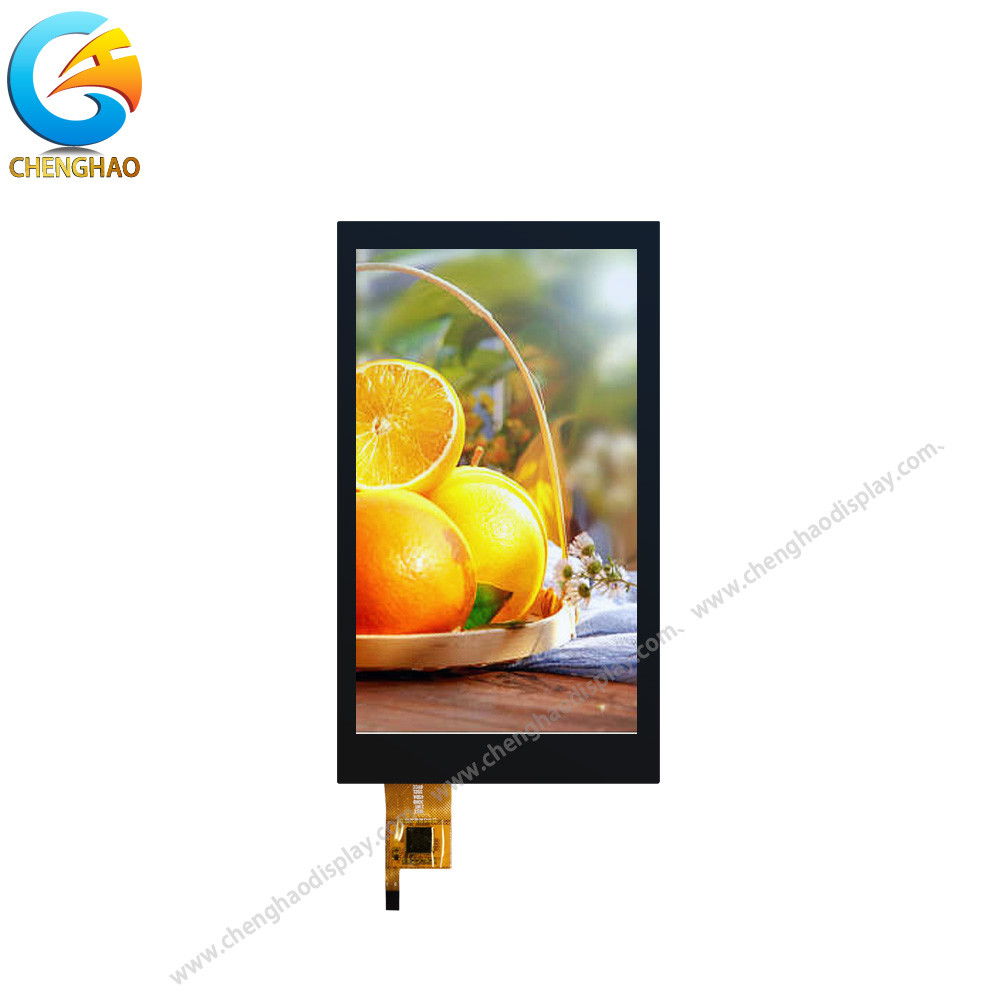

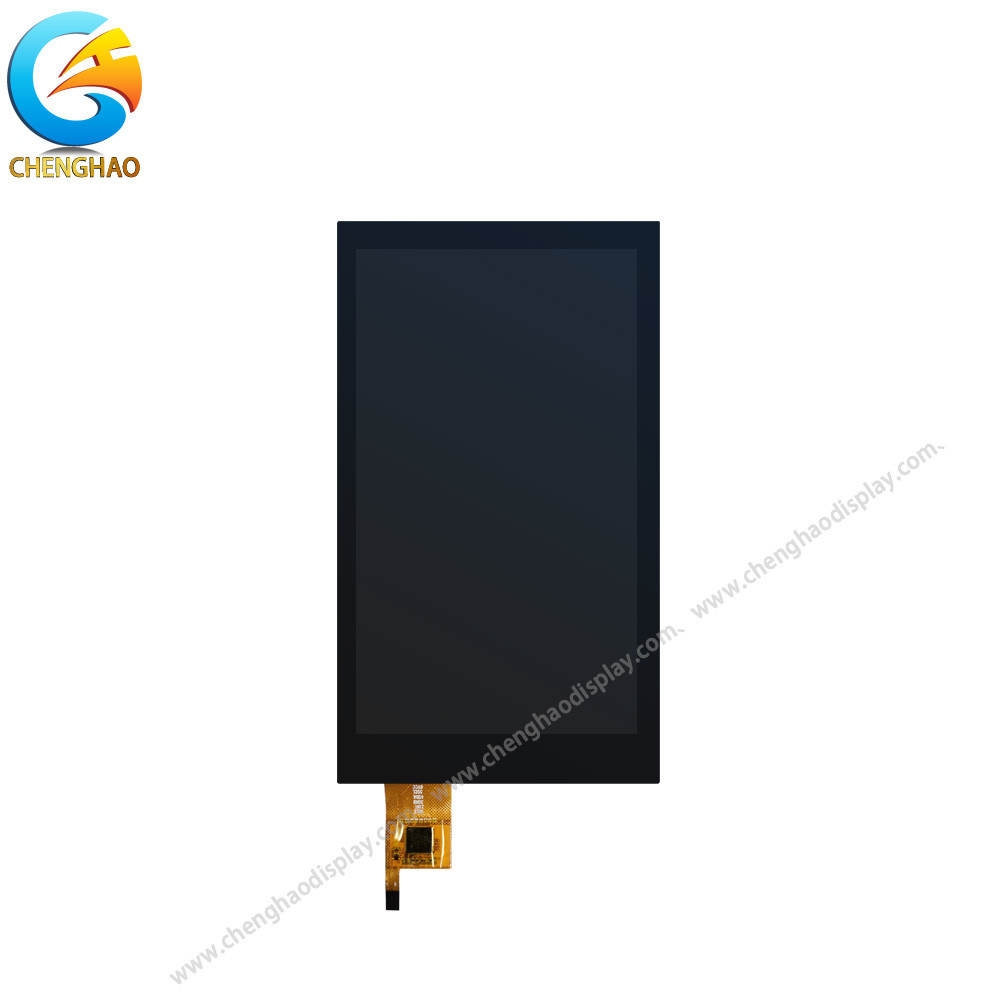

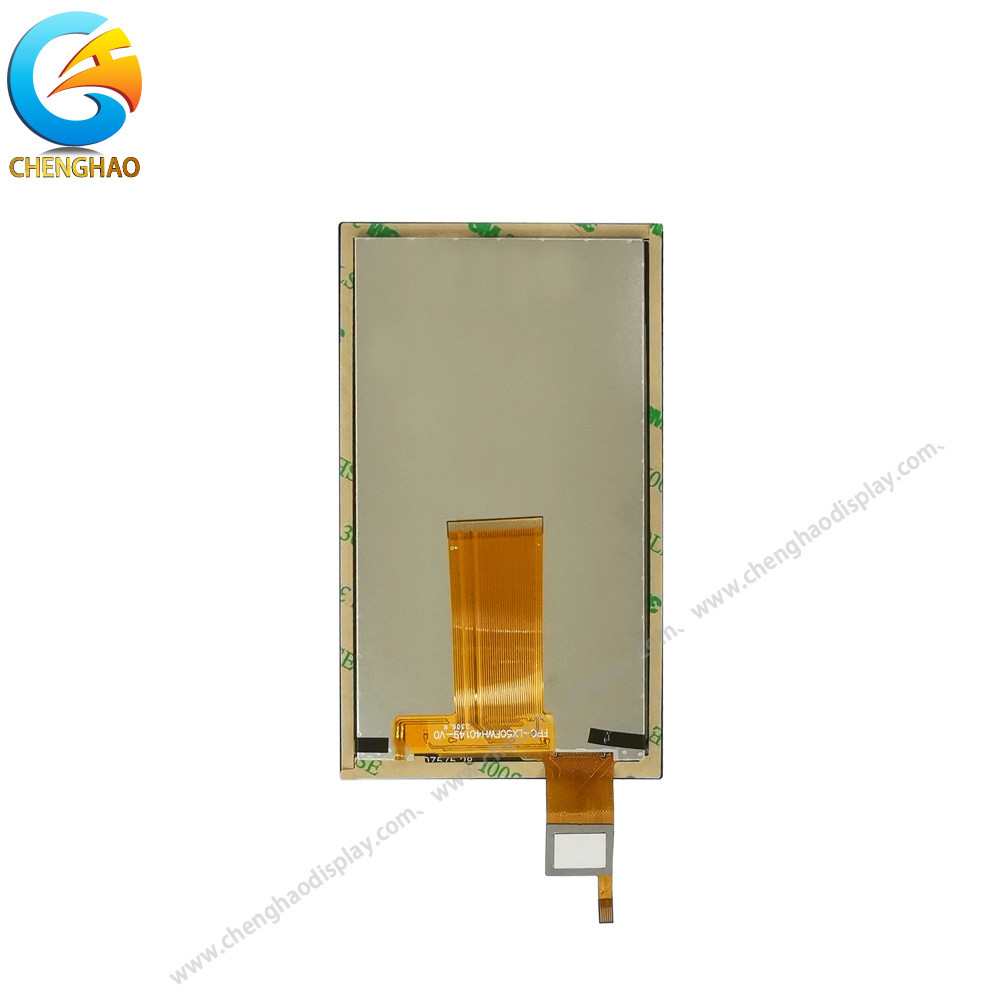

CH500FW07A-CT is an industrial-grade liquid crystal display module produced by Chenghao LCD, which is specially designed for a wide range of industrial applications such as industrial equipment, medical equipment, office equipment, laboratory equipment, and payment equipment. It can display images with 16M colors, 480*854 resolution, and the viewing direction is 80/80/80/80 (all viewing angles). The module also has IPS/transmissive/normally black display type, capacitive touch screen with I2C interface, 40-pin FPC pin count CH500FW07A-CT has high brightness and long life, which is a reliable and durable solution for industrial applications.

Quick details of spi lcd display

LCD type: 5” TFT+CTP
Resolution: 480*854 dots
Viewing Direction: 80/80/80/80 (all viewing angles)
Module size: 75.1(W)×128.9(H)×3.625(T)mm
Active area: 61.56(W)×109.53(H)mm
Dot pitch: 0.12825(W)×0.12825(H) mm
TFT Interface: 3 lines 9bit SPI + 24bit RGB interface
FPC Pin NUmber: 40 pins
Touch Panel Type: capacitive Touch Panel
Touch Panel Interface: I2C
Luminance: 450 cd/m2 High Brightness(optional)
Back Light: 12 White LEDs in serial
Life Time: 20000 hours
Use Case: Face Recognition Device
Certificates available: RoHS, CE, FCC

Features of 5 inch tft display

High resolution: The CH500FW07A-CT has a resolution of 480x854 dots, providing you with clear and detailed visual displays.

Wide viewing angles: With a viewing direction of 80/80/80/80, the display can be viewed from any angle without any loss of image quality.

Capacitive touch panel: The module features a capacitive touch panel, providing a responsive and accurate touch experience.

High-brightness backlight: Optional high-brightness backlight with 450 cd/m2 luminance enables the display to be easily viewed in any lighting environment.

Excellent compatibility: The module is equipped with a 3-line 9-bit SPI + 24-bit RGB interface, and a 40-pin FPC pin number, making it compatible with a wide range of industrial and medical equipment, office equipment, laboratory equipment, payment equipment, etc.

Why choose us

Supplier Information: We are Chenghao Lcd, an industry and trade integration company located in Shenzhen, China. We have a monthly supply capacity of 300K pieces, providing you with sufficient stock.

Quality Assurance: We have RoHS, CE, and FCC certificates, ensuring that all our products are compliant with relevant safety, health, and environmental regulations.

Professional Service: Our experienced product operators are always here to help you with any product-related inquiries, providing you with prompt and professional service.

Packaging: All our products are packed in the right way to keep them safe, with different packaging methods designed for varying product sizes.

Fast Delivery: We offer a delivery period of 7-15 working days, allowing you to receive the products as soon as possible.

FAQ

What is the MOQ of the product?
Our MOQ is 1 piece.
What is the touch panel interface of the module?
The touch panel interface is I2C.
What is the operating temperature range of the module?
The operating temperature range is -20 ~ +70 ℃ (wide temperature).
What is the life time of the backlight?
The life time of the backlight is 20000 hours.
What kind of fields is the module applicable to?
The module is applicable to various fields such as industrial equipment, medical equipment, office equipment, laboratory equipment, payment equipment, etc.
