Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 1PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH154QV12A |
|
Detail Information |
|||
| Product Name: | Lcd Capacitive Screen | Dot Arrangement: | 320*480 Dots |
|---|---|---|---|
| Viewing Direction: | All Viewing Direction | Module Size: | 58.4*105.4*4.3 Mm |
| Active Area: | 48.96*73.44 Mm | Luminance: | 300 Cd/m2 |
| Pin Number: | 50 | ||
| High Light: | 50Pin Capacitive LCD Screen,ILI9488 IC Capacitive LCD Screen,ILI9488 IC Tft LCD Shield |
||
Product Description

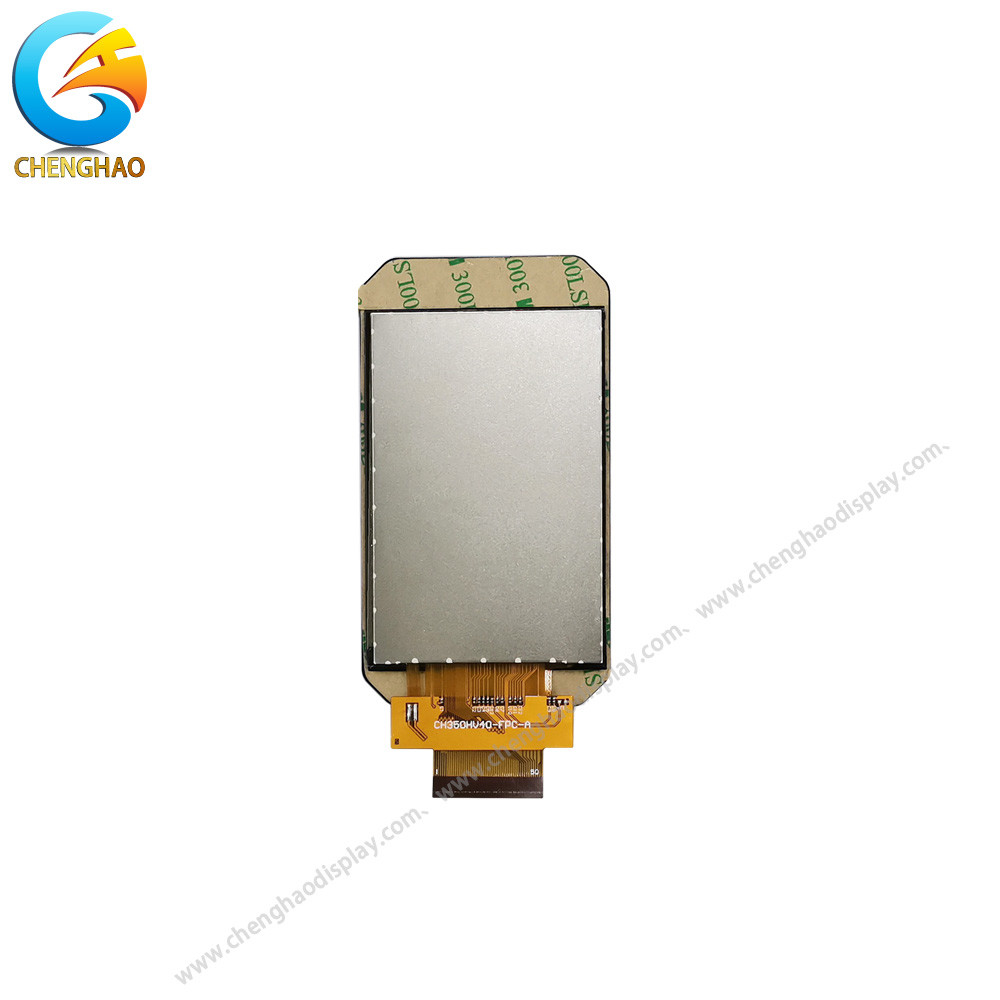

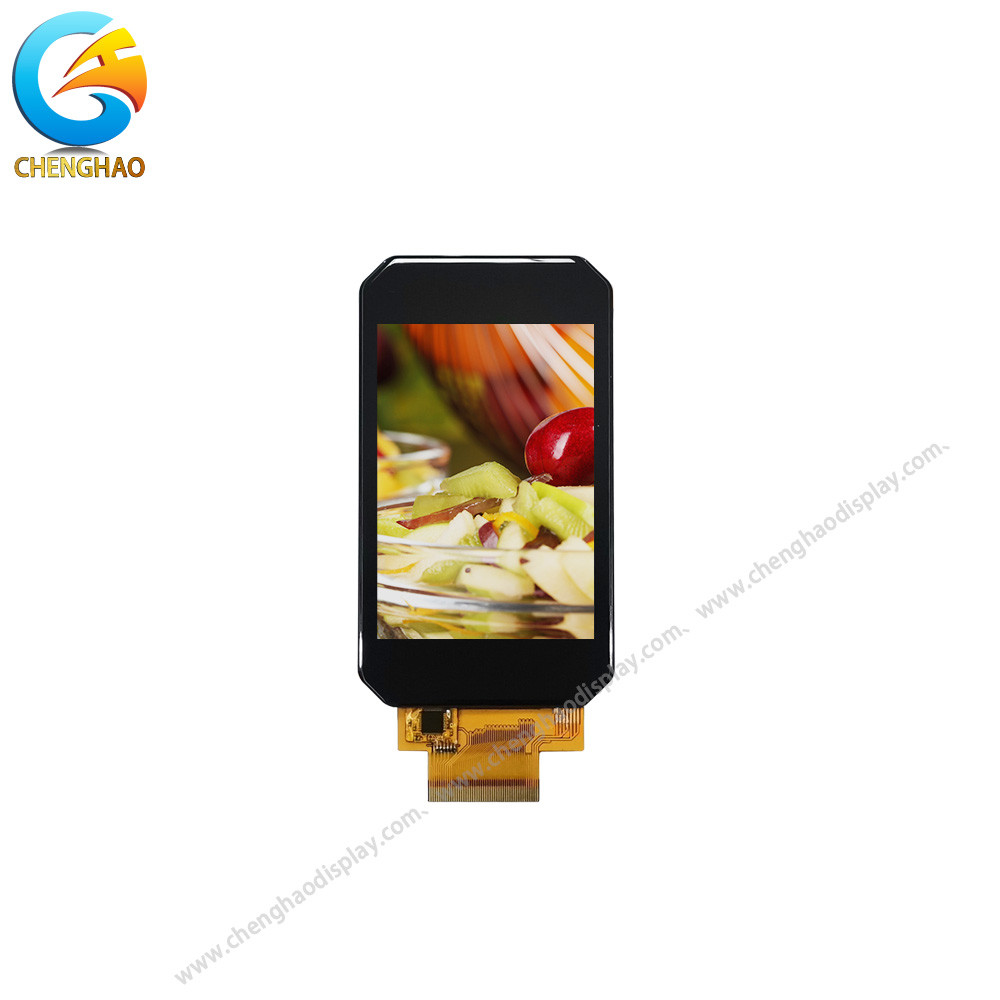

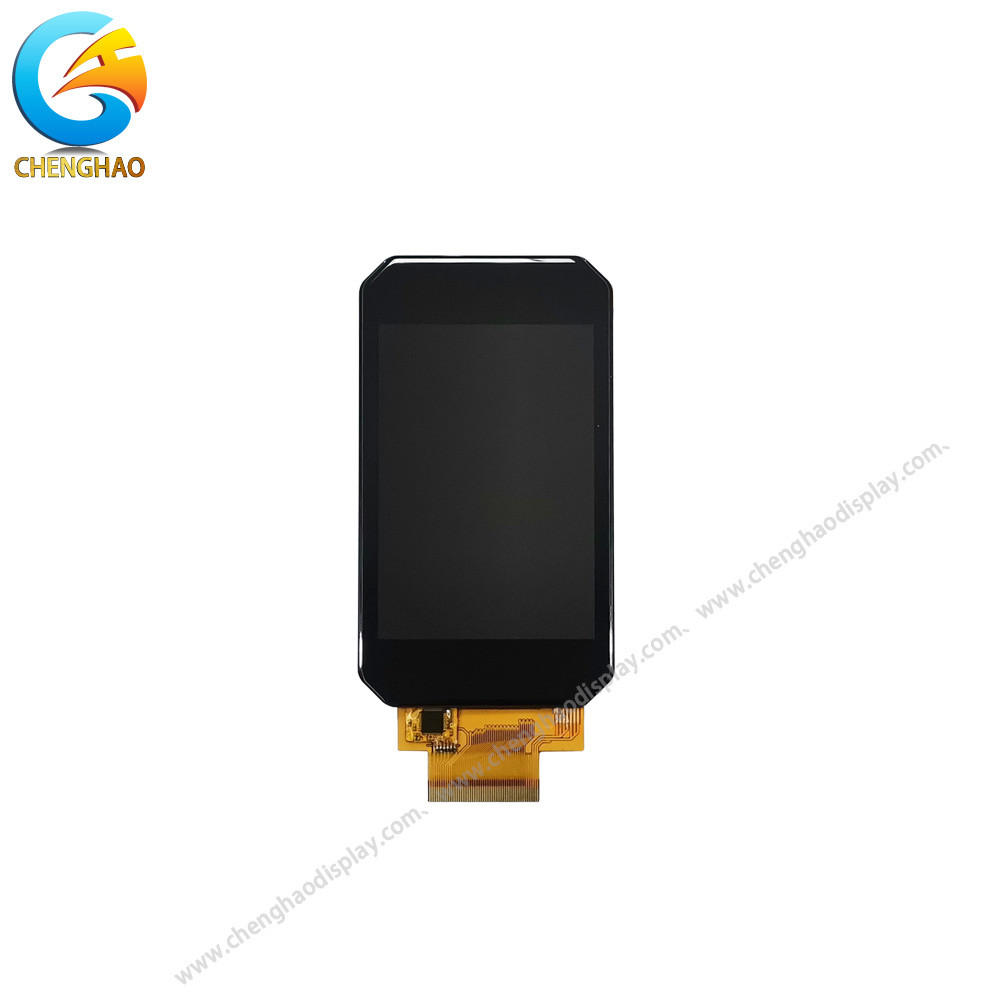

50Pin Capacitive LCD Screen 3.5 Inch Tft LCD Shield With ILI9488 IC
3.5 Tft Lcd Shield 50Pin 320*480 Capacitive Lcd Screen With ILI9488 IC
Specification of lcd display module
| Product No | CH350HV40C-CTB |
| Number of Dots | 320*3(RGB)*480 |
| Viewing Direction | 80/80/80/80 |
| Outline Size |
58.4*105.4*4.3 mm |
| Tft Active Area | 48.96*73.44 mm |
| Interface | SPI/MCU/RGB |
| Luminance | 300 cd/m2 |
Description Of TFT LCD Module
Introducing the CH350HV40C-CTB 3.5-inch TFT LCD module, an excellent solution for a variety of applications including industrial equipment, smart home equipment, artificial intelligence, medical equipment, and GPS navigation.
This TFT LCD has a capacitive touch panel, supports multi-touch, and has a resolution of 320x480 dots to provide high-quality images. 80/80/80/80 viewing angles allow you to see content clearly no matter which direction you look at it.
With a wide temperature range of -20 ~ +70 degrees Celsius, the CH350HV40C-CTB is durable enough to withstand extreme conditions. This product supports full interface (SPI/MCU/RGB) and has good compatibility.
Customization is possible, which provides customized content to meet individual needs, such as brightness brightness, touch screen type, anti-glare, LCD interface type, etc. This service allows businesses to customize their displays to meet their specific requirements for various applications.
In summary, the CH350HV40C-CTB 3.5 inch TFT LCD module is an excellent display solution that offers excellent features and customization, making it a perfect solution for efficient and high-quality performance in various applications.
Quick detail of capacitive touch screen
Keyword: lcd capacitive screen
LCD Type: 3.5" TFT+CTP
Display Size: 3.5 inch
Supplier Type: Manufacturer
Brand Name:Chenghao / OEM
Resolution: 320*480 dots
Interface:
4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface
Brightness: 300 nits
Touch panel:Capacitive Touch Panel(Resistive Touch Panel are optional)
Viewing Angle:80/80/80/80 (Typ.)(CR 10) (L/R/U/D)
LCD Type:TFT IPS
Panel Size: 3.5 inch
Backlight Type: white LED
Touch panel:support customized
Driving IC: ILI9488
Certification:CE/ROHS/FCC
Application of touch screen module
CH350HV40C-CTB is a custom lcd display module designed and developed for installation in car navigators. It can be widely used in various industries, such as POS machines, beauty instruments, metal detectors, electron microscopes, entertainment live broadcast equipment, children's toys, etc. .
List of our TFT Lcd models
The following list is some of our product models, if you can't find the product model that meets your requirements in the list, you can contact our customer service for consultation!
| Size | Part No. | Shape | Resolution | Size | Part No. | Shape | Resolution |
| 1.1" | CH110T001A | Square screen | 96(RGB)*96 | 4.3" | CH430WQ18A | horizontal screen | 480*3(RGB)*272 |
| 1.14" | CH114QV01A | vertical screen | 135(RGB)×240 | 4.3" | CH430WV15A | vertical screen | 480*(RGB)*800 |
| 1.3" | CH130QV03A | Square screen | 240*(RGB)*240 | 4.41" | CH441FH01A | horizontal screen | 1920*(RGB)*1080 |
| 1.44" | CH144QQ16A | Square screen | 128*(RGB)*128 | 4.5" | CH450FW02A | vertical screen | 480*(RGB)*854 |
| 1.47" | CH147QV01A | vertical screen | 172*(RGB)*320 | 5.0" | CH500WQ03A | horizontal screen | 480*(RGB)*272 |
| 1.5" | CH150DS01A | horizontal screen | 480*240 | 5.0" | CH500WV05B | horizontal screen | 800*(RGB)*480 |
| 1.54" | CH154QV05A | Square screen | 240*(RGB)*240 | 5.0" | CH500FW09A | vertical screen | 480*(RGB)*854 |
| 1.8" | CH180QQ09B | vertical screen | 128*(RGB)*160 | 5.5" | CH550FH01A | vertical screen | 1080*(RGB)*1920 |
| 1.9" | CH190QV01A | vertical screen | 170*(RGB)*320 | 7.0" | CH700WV03A | horizontal screen | 800*(RGB)*480 |
| 2.0" | CH200QV11A | vertical screen | 320*3(RGB)*240 | 7.0" | CH700WS16A | horizontal screen | 1024*3(RGB)*600 |
| 2.1" | CH210WV01A | Round Screen | 480*(RGB)*480 | 7.0" | CH700WX06A | vertical screen | 800*(RGB)*1280 |
| 2.2" | CH220QV06A | vertical screen | 240(RGB)*320 | 7.0" | CH700FH01B | vertical screen | 800*(RGB)*1280 |
| 2.31" | CH231QV07A | horizontal screen | 320*(RGB)*240 | 8.0" | CH800WX02A | vertical screen | 800*(RGB)*1280 |
| 2.4" | CH240QV58A | vertical screen | 240*(RGB)*320 | 8.0" | CH800FH03A | vertical screen | 1200*(RGB)*1920 |
| 2.8" | CH280QV36A | vertical screen | 240*3(RGB)*320 | 9.0" | CH900WV01A | horizontal screen | 800*(RGB)*480 |
| 3.5" | CH350HV40A | vertical screen | 320*(RGB)*480 | 9.0" | CH900WS01A | horizontal screen | 1024*(RGB)*600 |
| 4.0" | CH400WV22A | vertical screen | 480*800 | 10.1" | CH101WS01A | horizontal screen | 1024*(RGB)*600 |
| 10.1" | CH101WX02A | horizontal screen | 1280*(RGB)*800 |
