Touch Screen 7 Inch 800*480 LCD Display Module With Resistive Touch Panel

Product Description

Touch Screen 7 Inch 800*480 LCD Display Module With Resistive Touch Panel

1. Specification

2. Description

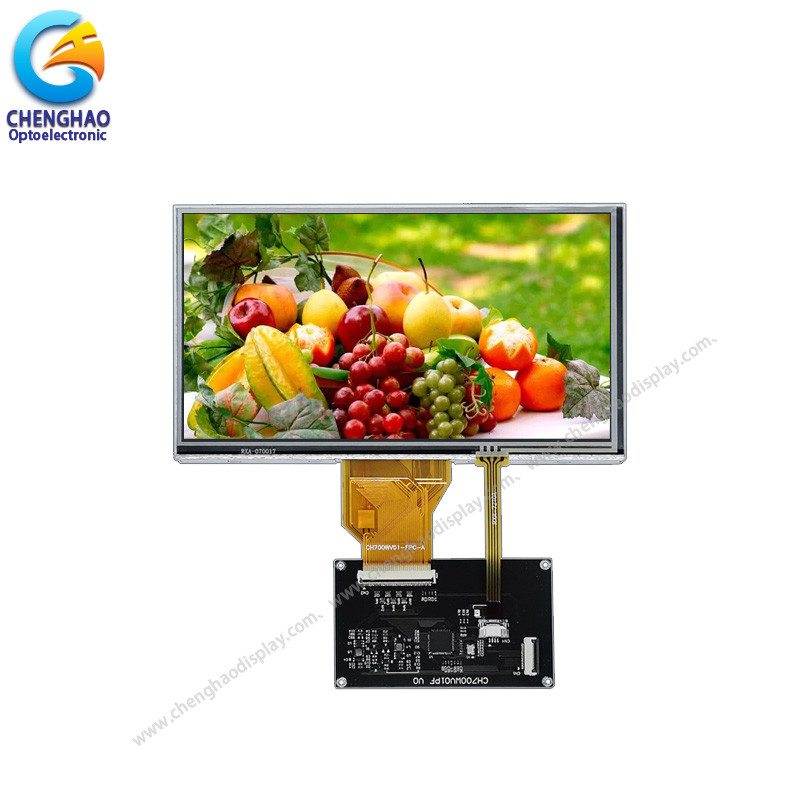

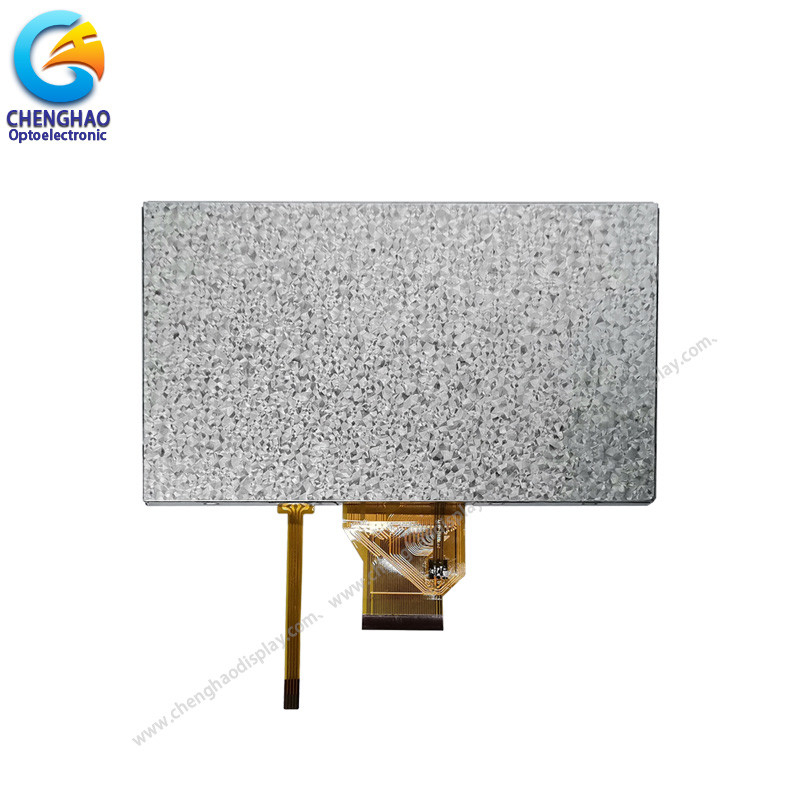

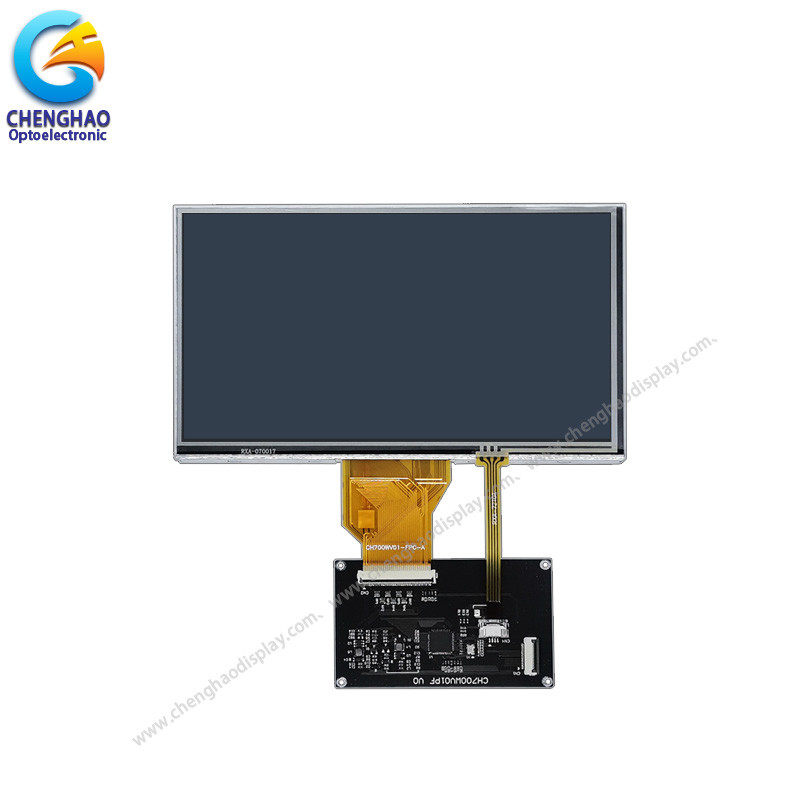

CHENGHAO Display CH700WV01G-T-PG is a color LCD module with resistive touch screen, with a brightness of 400 nits, supports SPI interface, and the best viewing angle is 12:00. There is a 7 inch color display area with a resolution of 800*480 and can display 16M colors. The 7 inch touch screen display can adapt to the working environment of -20~ +70, and the average service life exceeds 20000H.
CH700WV01G-T-PG is a wide-temperature liquid crystal display designed and manufactured for installation in medical equipment. It has completed CE and RoHS certification, and can provide buyers with more than one year of warranty service. The touch display modul can modify some functions or components according to customer requirements, including flexible circuit boards, backlight components, interface types, anti-glare, etc. Of course, as a comprehensive enterprise integrating production and sales, Chenghao Optoelectronic can provide customers with professional customized services. You can get interested information by consulting our 24-hour online customer service.

4. Quick Detail

* MODEL NO. :CH700WV01G-T-PG

* Module Name: Touch Screen 7 Inch 800*480 LCD Display Module With Resistive Touch Panel
* Module type:7inch TFT+RTP(Optional)
* Display Mode:TN / Transmissive / Normally White(Optional)
* Number of Dots:800*480
* Module size:165.6*100.6*8.64 mm
* TFT Active area:154.71*85.92 mm
* TFT Interface:SPI(Optional)
* Color :16.M
* Contrast : 500
* VIEWING DIRECTION: 12:00
* LCD DRIVE IC:
* POLARIZER MODE: TRANSMISSIVE/Normally White
* OPERATING TEMP: -20°C~+70°C
* STORAGE TEMP: -30°C~+80°C
* UNMARKER TOLERANCE: ±0.20
* REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
NEW
* FPC Number:50pin
* Back light Type:White LED
* Life Time:20000 Hr
* BL CIRCUIT DIAGRAM: white Led
* Luminace: 400 cd/m2(Optional)
* Touch Panel Type:RTP
* Touch Panel Interface:USB
* Touch Panel IC: ******

5. Application

6. FAQ

Q1.What is the minimum order quantity for your products?

A1.Minimum order quantity starts from ONE piece .

Q2. How can we get samples from you ?

A2.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to
charge boot samples cost and post courier freight.

Q3.When will you send the parts to me?

A3.We will send the parts to you within 3-5 workdays after receiving your payment.

Any other more questions, please feel free to contact us. We are always at your service !
