2 Lane MIPI DSI LCD Display Module Wvga 480*800 Dot Matrix 4 Inch Tft

Product Description

2 Lane MIPI DSI LCD Display Module Wvga 480*800 Dot Matrix 4 Inch Tft

1. Specification

2. Description

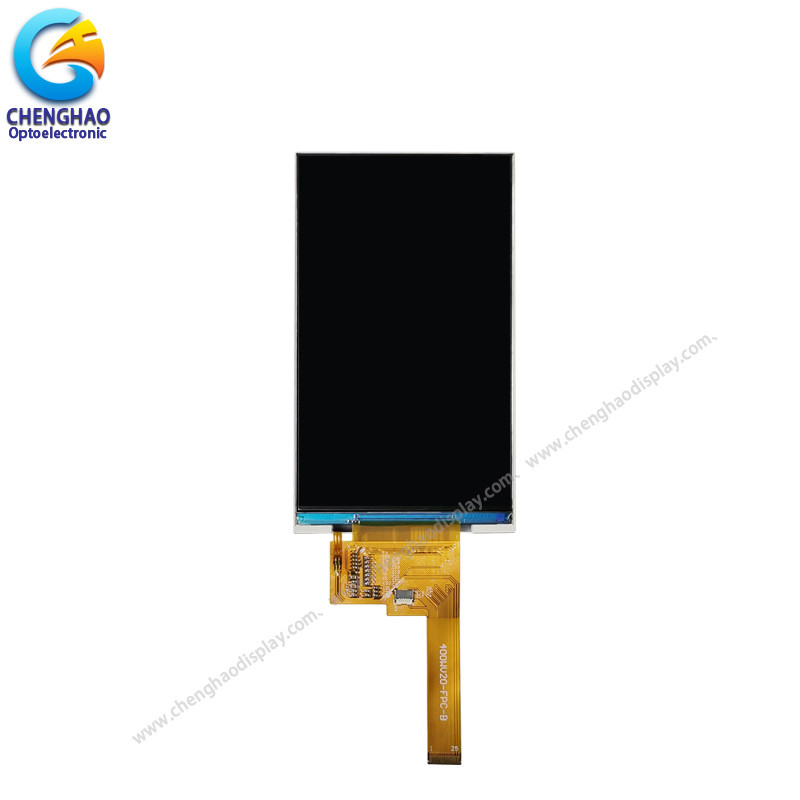

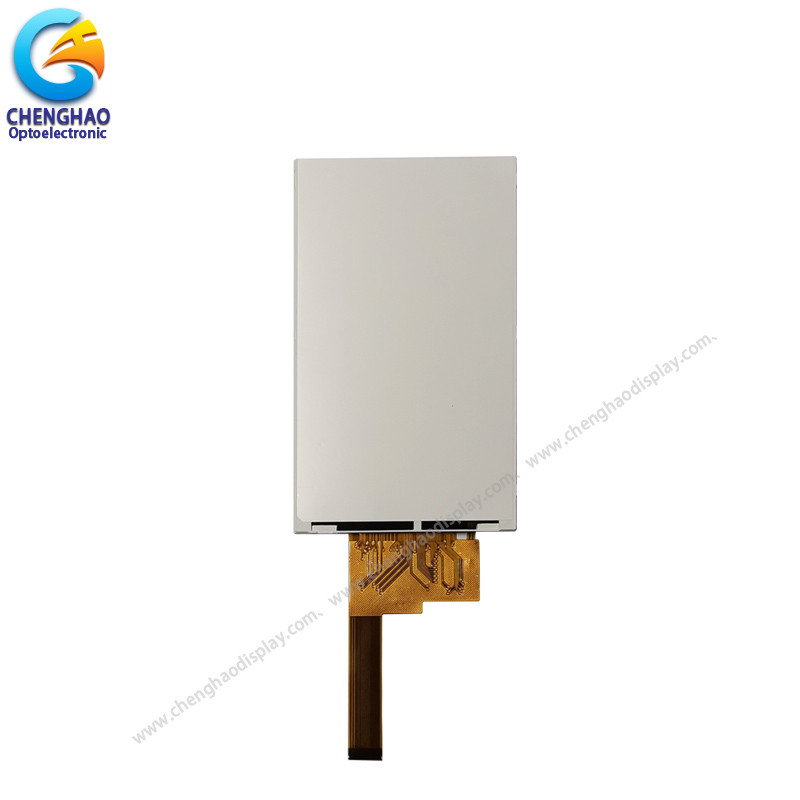

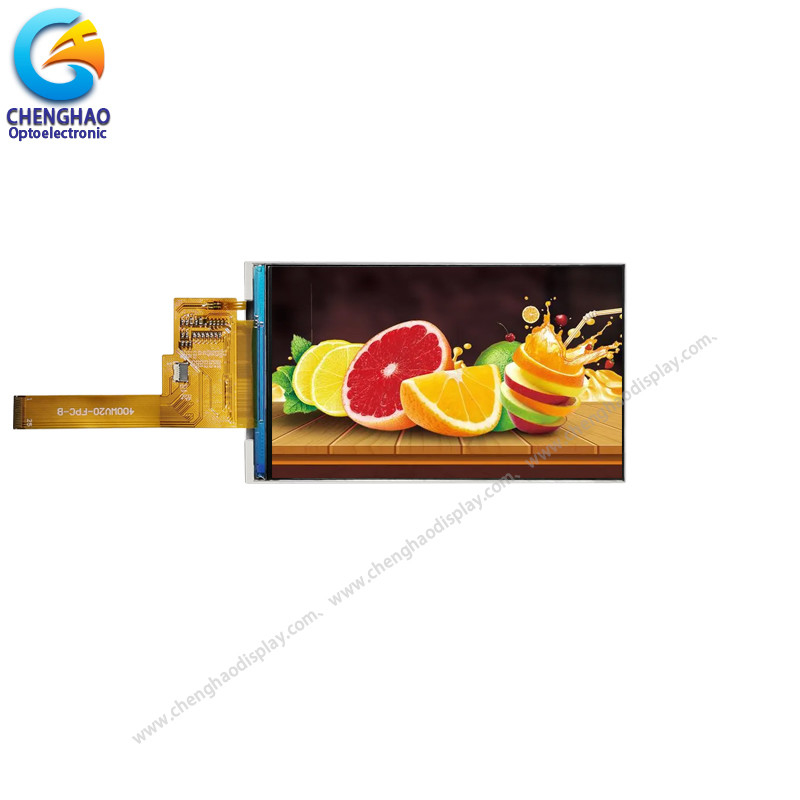

Chenghao Display CH400WV20A is a 4 inch tft lcd module, which includes an lcd panel, a driver IC, a backlight assembly and an FPC flexible circuit board. There is a 480*800 pixel color display area of this 4inch lcd display, which can display 16M colors, and the best viewing angle is 6 o’clock. The 3.97 inch lcd adopts 2-lane_MIPI DSI interface, and can operate normally in the environment of -20~+70 for more than 20000 H. It can be customized. The customized content includes FPC shape structure, backlight brightness, interface type, touch function, etc.
If this 3.97 inch tft can not meet your project requirements at all, we also have a large number of small-size color LCD module solutions for your reference, you can consult our online customer service or send us an email to get relevant information information, we look forward to your reply!

3. Drawings

Notes:
(1) Display Type :  4" TFT

(2) Viewing Direction : 6 o’clock

(3) Operating Temp : -20~70 ℃
(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS

4. Qucik Detail

Product Name: 2 Lane MIPI DSI LCD Display Module Wvga 480*800 Dot Matrix
Model No: CH400WV20A
With or Without TP: No
Support TP Type: CTP/RTP
LCD type: 3.97”TFT
Dot arrangement: 480(RGB)*800
Color filter array: RGB vertical stripe
Display mode: TN/ Transmissive / Normally White
Viewing Direction: 6 o’clock
TFT Driver IC: ILI9806E

Color: 16M
Contrast: 500:1
Module size: 57.14×96.85×2.0 mm
TFT Active area: 51.84×86.4 mm
Dot pitch: 0.108×0.108 mm
TFT Interface: 2-lane_MIPI DSI
FPC Pin Number: 25
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃
Back Light: White LED
Weight:** g
