5.0 Inch LCD Display Module 480x272 WQVGA 20pin SPI TFT LCD Display

Product Description

1. Specification

2. Description

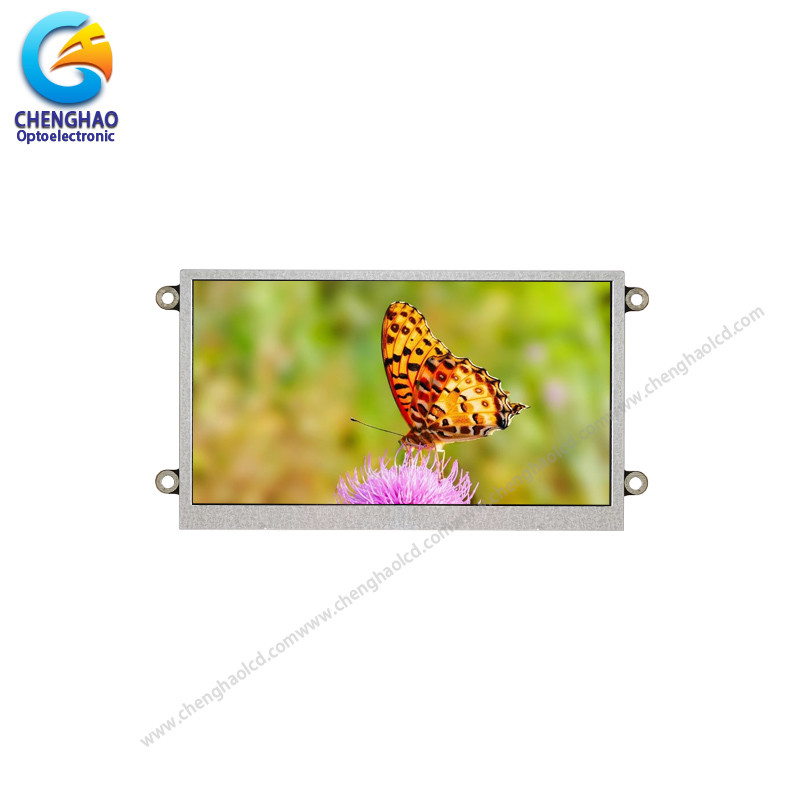

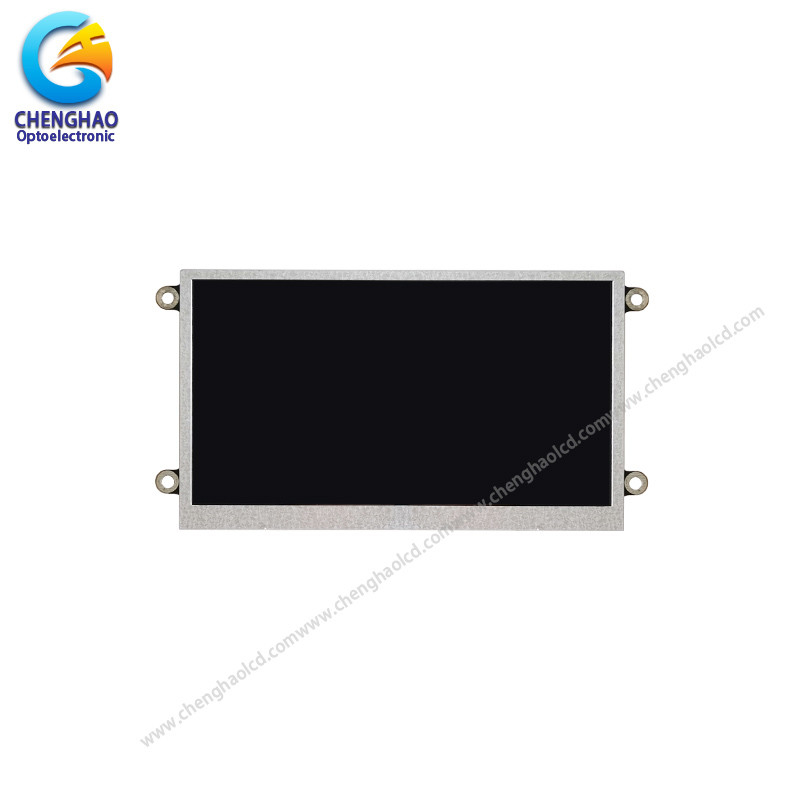

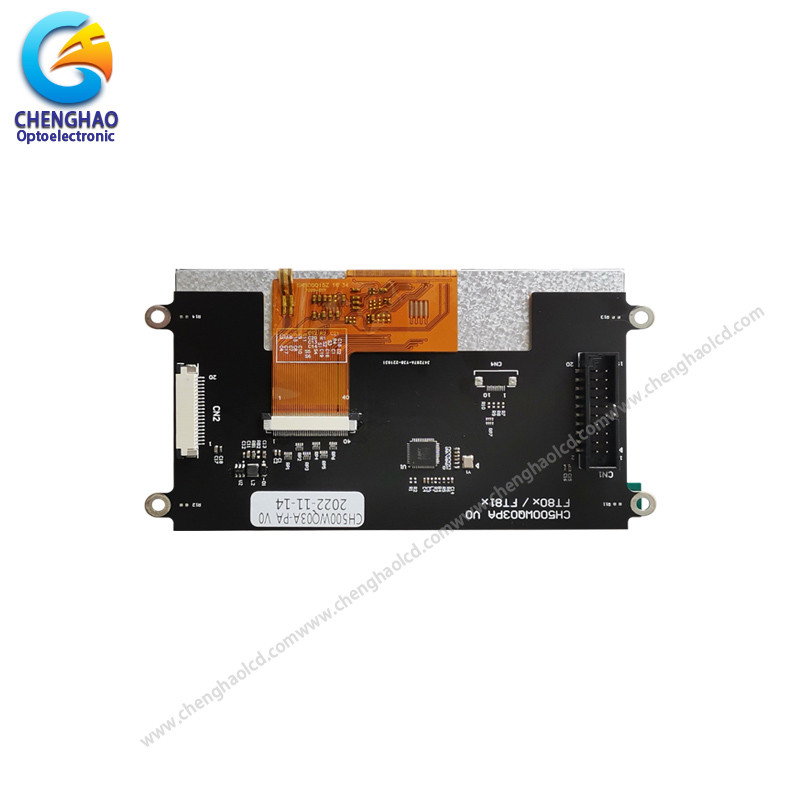

Chenghao Optoelectronic CH500WQ03A-PA is a color LCD module with PCB driver board, using SPI interface, supports 12:00 viewing direction, and the screen brightness is 300 cd/m2. There is a 5.0 inch active display area of this tft lcd module, which can display 480x272 pixel color screen and 16M colors. This 5 inch tft lcd module is a wide-temperature monitor, which can operate normally for more than 20,000 H in an environment with a temperature between -20 ~ +70°C. In addition, this small lcd module can be modified and customized according to customer requirements. The customizable content includes FPC shape, interface definition, screen brightness, touch function, screen anti-glare, etc.
CH500WQ03A-PA is a color LCD module used in face recognition equipment, has completed FCC, CE, RoHS certification, and can provide more than one year of warranty service. If you choose to get more information about this 5 inch lcd module, you can send us an email or consult our online customer service for further information.

3. Drawings

Notes:
(1) Display Type : 5"TFT+PCB
(2) Viewing Direction : 12:00
(3) Lcd Drive IC :  ***
(4) Polarizer Mode : Transmissive/ Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

Product Name:WQVGA 5.0 Inch LCD Display Module 480x272 20pin SPI Tft Display
Model No:CH500WQ03A-PA
LCD type:5"TFT+PCB
Dot arrangement:480*272
Color filter array: RGB vertical stripe
Display mode: TN/ Transmissive / Normally White
Viewing Direction:12:00
TFT Driver IC:***
Color:16M
Contrast:500
Module size:120.7*75.8*15.45 mm
TFT Active area:110.88*62.83 mm
TFT Interface:SPI
FPC Pin Number:20
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃
Back Light: White LED

5. Application

6. FAQ

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.

Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app
for you download.

If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales
directly.
