Full HD Color LCD Screen 5.5 Inch 1080*1920 TFT LCD Capacitive Touchscreen

Product Description

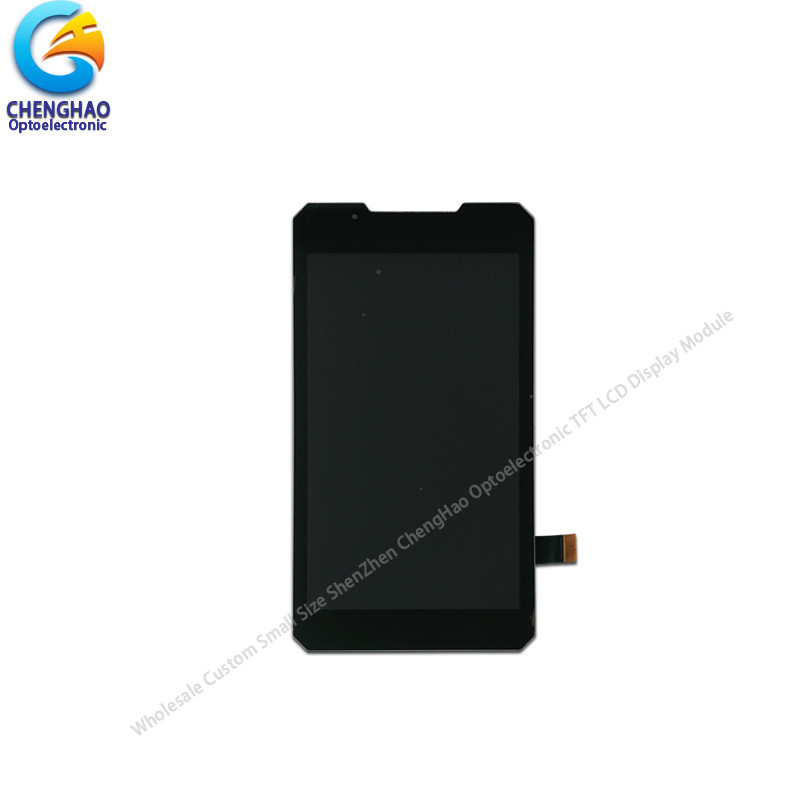

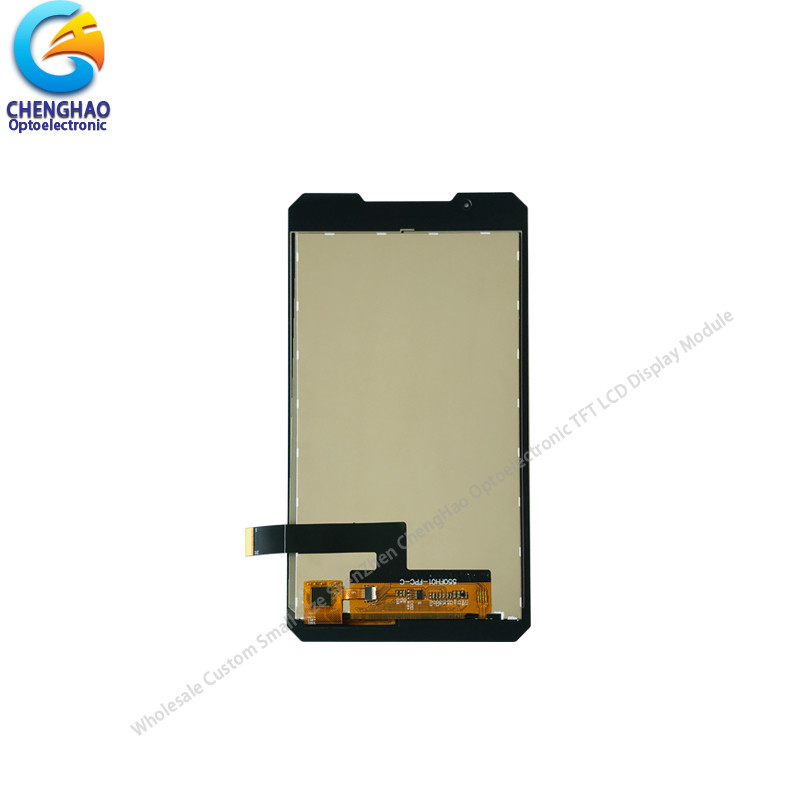

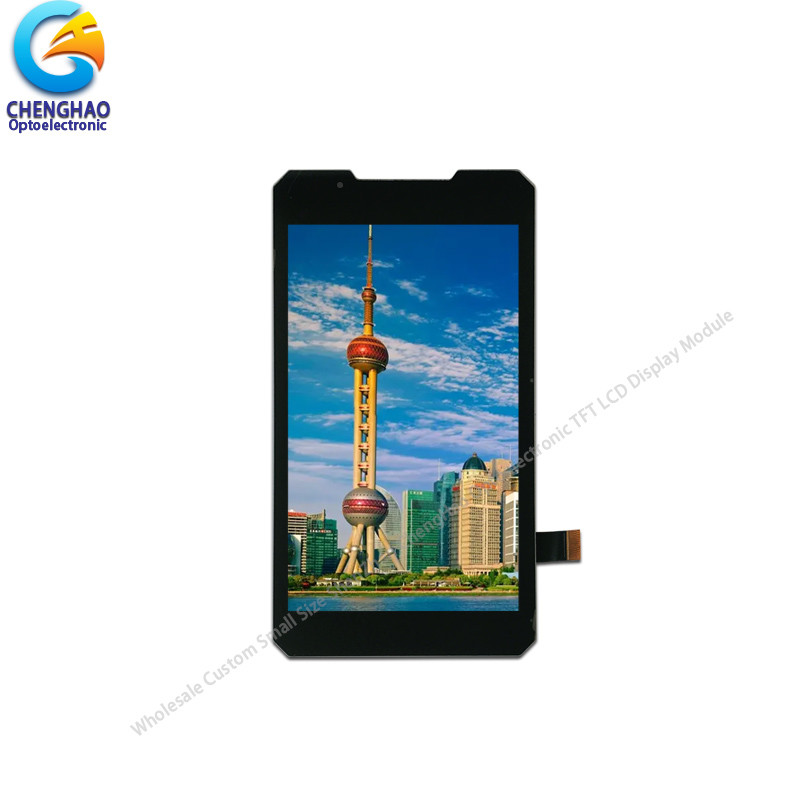

Full HD Color LCD Screen 5.5 Inch 1080*1920 TFT LCD Capacitive Touchscreen

1. Specification

2. Description


Chenghao Optoelectronic CH550FH01A-CT is a Full HD color LCD screen (vertical screen) used in access control identification equipment. The display resolution reaches 1080*1920, the diagonal measurement of the display area is 5.5 inches, and it can display 16M colors Full HD video animation. This full HD color LCD screen uses LTPS display technology, and the viewing angle of the screen reaches 80/80/80/80. Users can clearly read the content on the screen at any viewing angle. At the same time, this Full HD color LCD screen is equipped with a touch panel, which supports multi-touch, and users can realize human-computer interaction through the touch panel.
CH550FH01A-CT is a Full HD color LCD screen with excellent performance. It adopts the combination of lcd panel + TP. The lcd panel belongs to TFT LCD, and uses MIPI interface to communicate with external devices. The TP is capacitive (CTP) and uses the I2C interface.
This Full HD color LCD screen has completed the high and low temperature experimental test, and can work continuously for more than 30k Hr in the environment of -20~+70℃.

3. Drawing

4. Quick Detail


LCD type :5.5”TFT + CTP
Dot arrangement :1080(RGB)×1920 dots
Color filter array :RGB vertical stripe
Display mode :LTPS / Transmissive / Normally Black
Viewing Direction :80/80/80/80
Driver IC :HX8399C
CTP type :G+F+F
Surface Treatment :6H
CTP Driver IC: GT911
LCM outline :77.1(W)×151.77(H)×3.39(T)
TFT outline: 70.78(W)×129.17(H)×1.7(T) mm
View area :68.44(W)×121.36(H) mm
Active area :68.04(W)×120.96(H) mm
Dot pitch :63(W)×63(H) um
Interface :MIPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light :14 White LED
Weight :TBD g

5. Application



6. FAQ


Q1.What is the minimum order quantity for your products?

A1.Minimum order quantity starts from ONE piece .

Q2. How can we get samples from you ?

A2.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to
charge boot samples cost and post courier freight.

Q3.When will you send the parts to me?

A3.We will send the parts to you within 3-5 workdays after receiving your payment.

Any other more questions, please feel free to contact us. We are always at your service !
