4line 8bit SPI LCD Display Module 3.5 Inch HVGA Vertical Screen Wide Temp

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350HV47A

Detail Information

Product Name: Spi Lcd Display Module Module Size: 53.16(W)×81.74(H)×2.17(T) Mm
Active Area: 48.96(W)×73.44(H) Mm Dot Pitch: 0.153(W)×0.153(H) Mm
Interface: 4line 8bit SPI Operating Temperature: -20 ~ +70 ℃
Storage Temperature: -30 ~ +80 ℃
High Light:

4line SPI Lcd Display Module


HVGA SPI LCD Display Module


8bit SPI LCD Display Module

Product Description

Spi Lcd Display Module 3.5 Inch HVGA Vertical Screen Wide Temp


1. Specification


MODEL Name. CH350HV47A
Lcd type 3.5"TFT
Display Mode IPS / Transmissive
Number of Dots 320*480
Viewing Direction All Viewing Direction
Module size
53.16(W)×81.74(H)×2.17(T) mm
TFT Active area
48.96(W)×73.44(H) mm
TFT Dot pitch
0.153(W)×0.153(H) mm
4line 8bit SPI
Backlight Type White LED
Luminace 350 cd/m2

2. Description

Chenghao 3.5” IPS TFT Lcd (CH350HV47A) is a full viewing angle LCD screen with a 3.5 inch color display area, which supports the display of 320(RGB)×480 pixel video images. This 3.5” color lcd screen has 80/80 /80/80 full viewing angle, allowing users to read the screen at a viewing angle close to 80/80/80/80. External devices can interact with this display through the 4line 8bit SPI interface protocol.
If you want to know more about this 3.5 inch tft lcd, welcome to contact our online customer service.

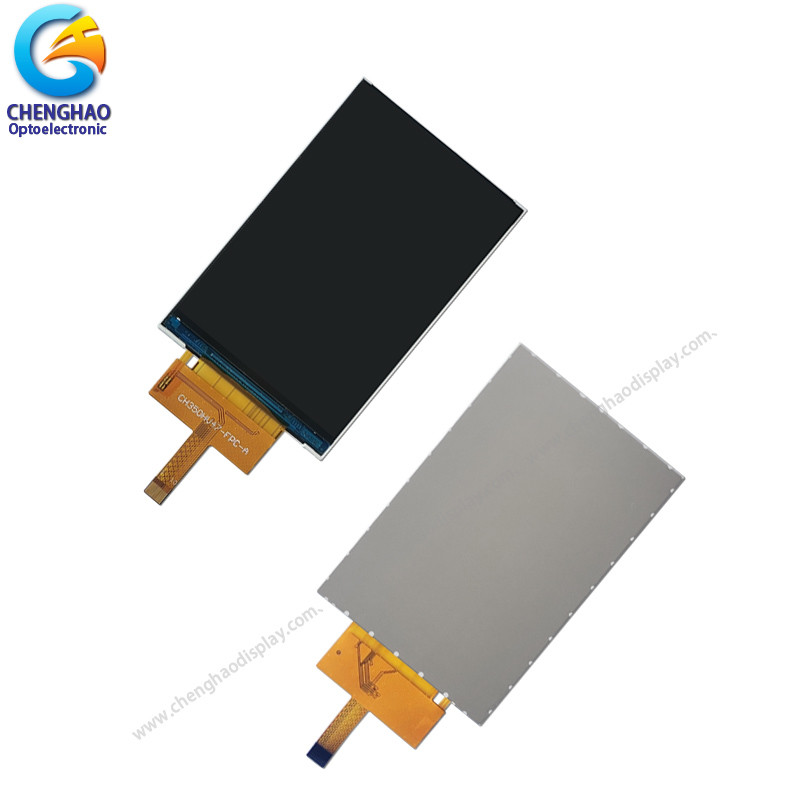

4line 8bit SPI LCD Display Module 3.5 Inch HVGA Vertical Screen Wide Temp 0





3. Drawing

(1) Display Type : 3.5 inch TFT
(2) Viewing Direction :  All
(3) Lcd Drive IC :  ST7796S
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

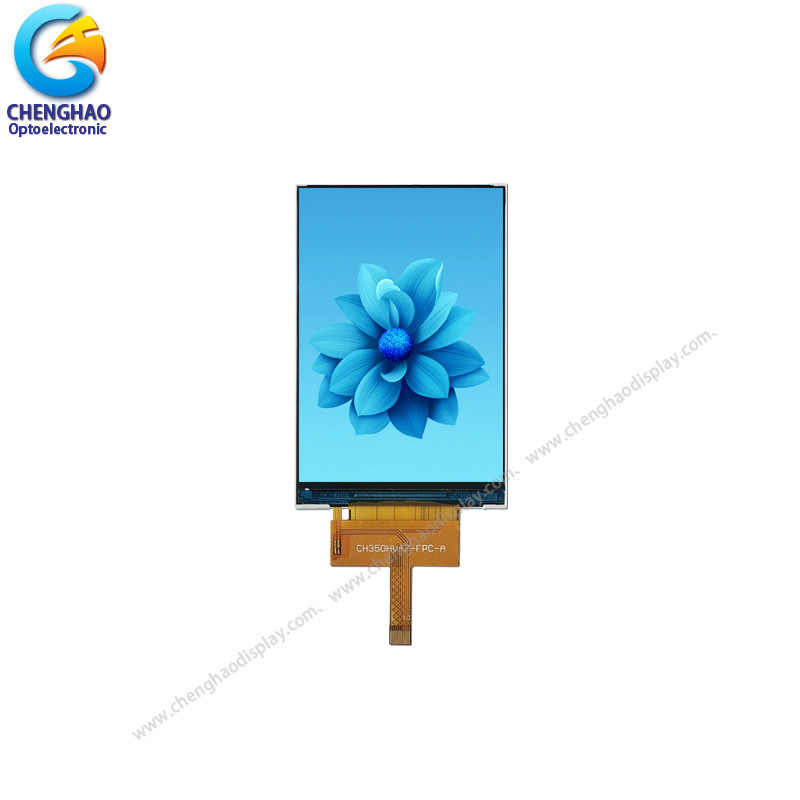

4line 8bit SPI LCD Display Module 3.5 Inch HVGA Vertical Screen Wide Temp 1





4. Quick Detail

Product Name: Spi Lcd Display Module

Model No: CH350HV47A

With or Without TP: Without

Support TP Type: CTP/RTP

LCD type: 3.5" TFT

Dot arrangement: 320*480

Color filter array: RGB vertical stripe

Display mode: IPS / Transmissive / Normally Black

Viewing Direction: ALL

TFT Driver IC: ST7796S

Color: 16M

Contrast: 800:1

Module size: 53.16(W)×81.74(H)×2.17(T) mm

TFT Active area: 48.96(W)×73.44(H) mm

Dot pitch: 0.153(W)×0.153(H) mm

TFT Interface: RGB

FPC Pin Number: 10

Operating temperature: -20 ~ +60 ℃

Storage temperature: -30 ~ +70 ℃

Back Light: 6 White LED

Weight: TBD g



5. Application
