5inch Medical LCD Display Module 800x480 Resolution Horizontal Screen

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500WV03A-T

Detail Information

Product Name: 5inch Medical Lcd Display Module Size: 120.7(W)×75.8(H)×4.2(T) Mm
TFT Active Area: 108(W)×64.8(H) Mm TFT Dot Pitch: 0.135(W)×0.135(H)
Interface: 24-bit Parallel RGB Interface Backlight Type: White LED
Luminace: 250 Nits
High Light:

5inch Medical LCD Display

,

24bit Parallel RGB Medical LCD Display

,

TN Transmissive LCD Display Module

Product Description

5inch Medical Lcd Display 800x480 Resolution Horizontal Screen



1. Specification



MODEL NO. CH500WV03A-T
Module type 5.0" TFT
Display Mode TN / Transmissive
Resolution 800*480 dots
Viewing Direction 12 O'clock
Module size
120.7(W)×75.8(H)×4.2(T) mm
TFT Active area
108(W)×64.8(H) mm
TFT Dot pitch
0.135(W)×0.135(H) mm
Interface RGB
Luminace 250 Nits



2. Description



ChengHao Display model CH500WV03A-T is a 5.0 inch lcd touch screen with RGB interface and working life up to 20K Hr. This lcd touch screen consists of a touch panel, a liquid crystal panel, a backlight and FPC components.

This touch panel belongs to Resistive touch panel (RTP), which communicates and interconnects with other components through the USB interface.

The lcd panel is of color tft type (horizontal screen) and can display 800×3(RGB)×480 dots resolution video images.

The backlight and FPC components can be customized according to customer requirements. The customized content includes the brightness of the backlight, the shape and structure of the FPC, and the definition of the interface.





3. Drawings



Notes:
(1) Display Type : 5.0" TFT
(2) Viewing Direction :  12:00
(3) Lcd Drive IC : ###
(4) Polarizer Mode : Transmissive/ Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

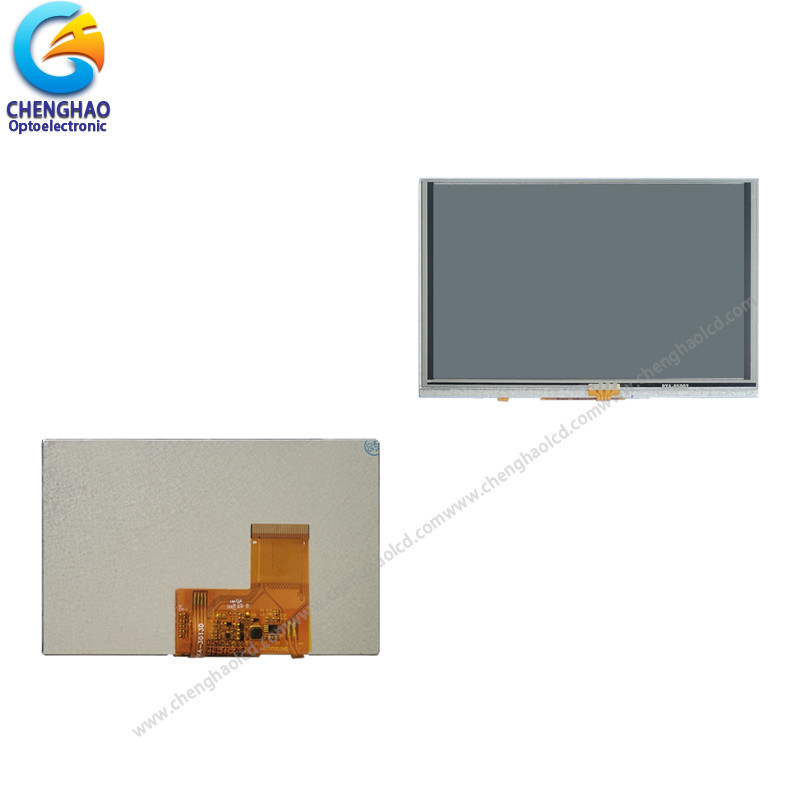

5inch Medical LCD Display Module 800x480 Resolution Horizontal Screen 0





4. Quick Detail



* LCM name: 5inch Medical Lcd Display

* Model: CH500WV03A-T
* Lcm Size.:  5.0 inch
* Display Type:  5"TFT
* Display colors: 16.7M
* Number of Dots: 800*480
* Viewing Angle: 12:00

* Driver IC: ###
* Display mode: TN/Transmissive/ Normally White
* Module size: 120.7(W)×75.8(H)×4.2(T) mm

* TFT Active Area: 108(W)×64.8(H) mm

Dot pitch: 0.135(W)×0.135(H) mm

* Luminance: 250 cd/m2

* Contrast: 500

* TFT Interface Type: RGB

* Pin Number:  40 pin
* Backlight type : White LED
   Backlight:  12 LED



5. Application



5inch Medical LCD Display Module 800x480 Resolution Horizontal Screen 1
