7.0 Inch Touch Screen Display Panel 350 Cd/M2 With 24 Bit Parallel RGB Interface

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WS03D-T

Detail Information

Product Name: 7.0 Inch Touch Screen Display Panel Resolution: 1024x600
Outline Dimension: 164.9(W)×100.0(H)×4.78(T) Mm Display Area: 154.2144(W)×85.92(H) Mm
TFT Dot Pitch: 0.1506 (W)×0.1432 (H) Mm Backlight Type: White Led
Luminance: 350 Cd/m2
High Light:

RTP Touch Screen Display Panel

,

350 cd/m2 Touch Screen Display Panel

,

24Bit Parallel RGB LCD Display Module

Product Description

7.0 Inch Touch Screen Display Panel With 24-Bit Parallel RGB Interface



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 7.0’’TFT --
Dot arrangement 1024(RGB)× 600 dots
Driver IC **** --
Module size
164.9(W)×100.0(H)×4.78(T)
mm
Active area
154.2144(W)×85.92(H)
mm
Dot pitch
0.1506 (W)×0.1432 (H)
mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light  27 pcs White LED In Paralle --
Weight TBD g


2. Description


ChengHao Display model CH700WS03D-T is a 7.0 inch touch screen with 24-bit Parallel RGB Interface. There is a Resistive touch panel (RTP) of this touch screen, which supports human-computer interaction and can display 1024×3(RGB)×600 resolution high-definition images. Users need to read the screen from the direction of 12 o’clock.

If CH700WS03D-T cannot fully meet your needs, we have many similar solutions for you to choose from. You can consult customer service or send emails to obtain relevant information.

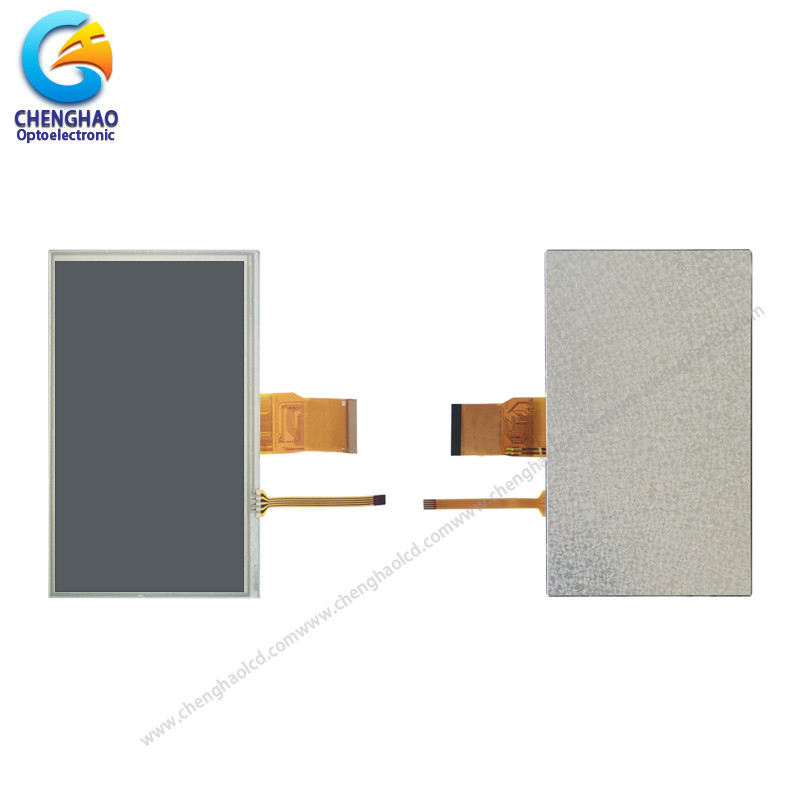

7.0 Inch Touch Screen Display Panel 350 Cd/M2 With 24 Bit Parallel RGB Interface 0



3. Drawing

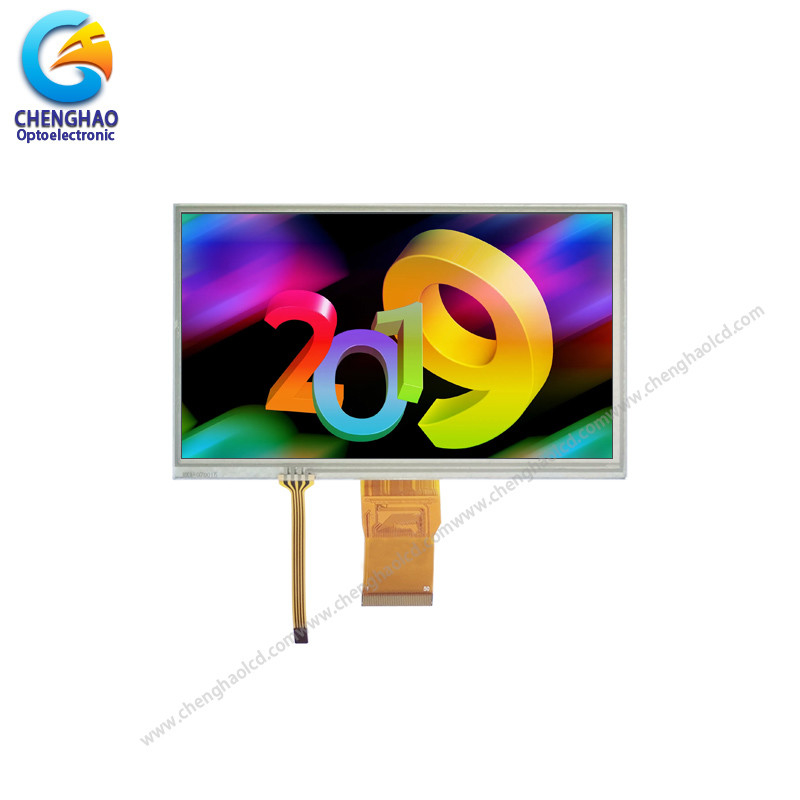

 7.0 Inch Touch Screen Display Panel 350 Cd/M2 With 24 Bit Parallel RGB Interface 1






4. Quick Detail


Resolution : 1024x600 dots

Dot pitch : 0.1506 (W)×0.1432 (H) mm

Outline dimension : 164.9(W)×100.0(H)×4.78(T) mm

Active Area : 154.2144(W)×85.92(H) mm

View angle: 12:00

Pixel Arrangement : RGB-stripe

Surface Treatment : Plant

TFT Electrical Interface : RGB

Brightness  : 350 (cd/m2)

Tft driver IC :******

Contrast ratio :  500

Backlight Type : White LED

Response time : ******(ms)

Display mode : TN, Normally White, Transmissive

Operate temperature : -20~ +70(°C)

Storage temperature  : -30~ +80(°C)

Display Colors : 16.7M

Power Supply Voltage : ****

Backlight lifetime : 20k hrs(Min.)

Touch Panel Type: Resistive touch panel

Touch Panel Interface: USB



5. Application


7.0 Inch Touch Screen Display Panel 350 Cd/M2 With 24 Bit Parallel RGB Interface 2

6. FAQ


1. who are we?

We are based in Guangdong, China, start from 2015,sell to Domestic Market(33.00%),North America(20.00%),Western

Europe(19.00%),Eastern Europe(10.00%),Southeast Asia(7.00%),Northern Europe(5.00%),Eastern Asia(3.00%),South

Asia(2.00%),Oceania(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Sensor Module,Display Module,Power Module,Wireless Module,PCB.



4. why should you buy from us not from other suppliers?

Established in 2015 shenzhen private high quantity Electronic modules, processors and microcontrollers, embedded peripheral chips, logic chips, memory, power chips, drivers, sensors, crystals and so on .Work area 1001-2000 square meters more than 100 peopls
