Sunlight Color LCD Display Module 7.0 Inch Wide Temp 4lane MIPI Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WS16A

Detail Information

Product Name: Sunlight Color Lcd Display TFT Dot Pitch: 0.1506(W)*0.1432(H)mm
Interface: 4lane-MIPI Backlight Type: White LED
Luminace: 500 Cd/m2 Lcd Type: 7.0 Inch Tft
Display Mode: IPS
High Light:

7.0 inch tft LCD Display Module

,

Sunlight Color LCD Display Module

,

4lane MIPI Color Lcd Display

Product Description

Sunlight Color Lcd Display Module 7.0 Inch Wide Temp Display



1. Specification



Lcd Type 7"TFT
Display Mode IPS / Transmissive
Resolution 1024*600
Viewing Direction 80/80/80/80
Outline Dimension 164.9(W)*100.0(H)*3.5(T)mm
Display Area 154.2144(W)*85.92(H)mm
Dot Pitch 0.1506(W)*0.1432(H)mm
Interface MIPI
Backlight Type 27 pcs White LED
Luminace 500 cd/m2







2. Description



Chenghao CH700WS16A is a 7.0 inch IPS lcd display with 4 lane-MIPI interface. There is a 7 inch color display area of this ips lcd, which can display 1024*600 resolution high-definition video images, and the screen color can reach 16M. This ips lcd is also a sunlight-readable tft lcd with a backlight brightness of 500 cd/m2, and the screen can still be clearly read by the user when used in an outdoor environment with strong light.

If this high brightness tft lcd can not fully meet your project needs, we can also modify and customize the CH700WS16 display solution according to your needs. The modifiable contents include backlight, FPC structure, interface definition, touch function installation, etc.



3. Drawings

Notes:
(1) Display Type : 7inch TFT

(2) Viewing Direction : all viewing direction
(4) Polarizer Mode : Transmissive/Normally Black

(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

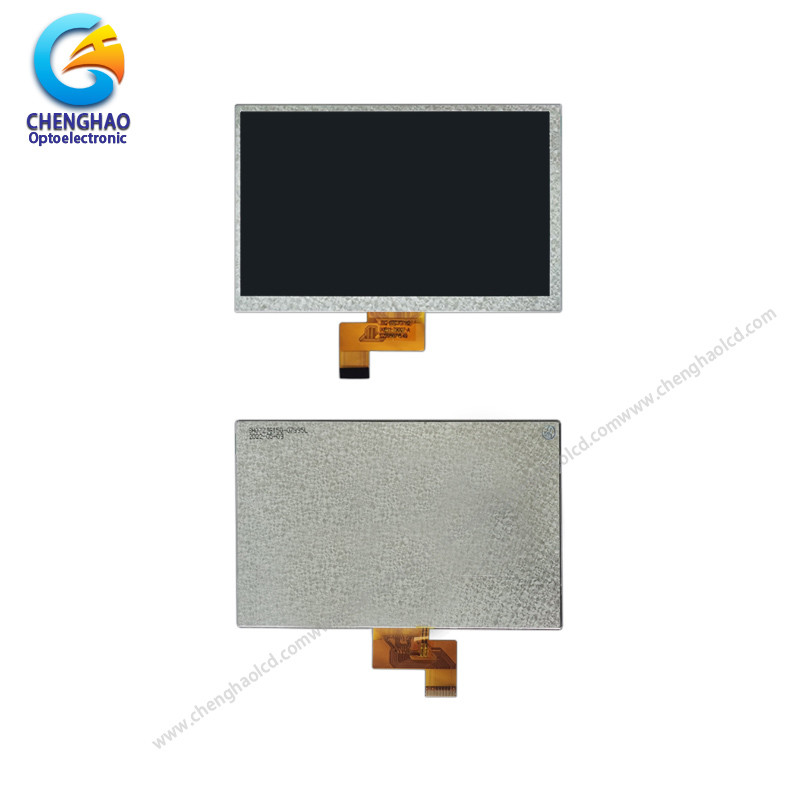

Sunlight Color LCD Display Module 7.0 Inch Wide Temp 4lane MIPI Interface 0





4. Qucik Detail



* MODEL NO. : CH700WS16A
* Module type: 7.0"TFT
* Display shape:  horizontal screen
* Display Mode: IPS / Transmissive / Normally Black
* Number of Dots: 1024*3(RGB)*400
* Module size: 164.9(W)*100.0(H)*3.5(T)mm
* TFT Active area: 154.2144(W)*85.92(H)mm
* TFT Interface: MIPI
* Color : 16.7M
* Contrast : 800
* VIEWING DIRECTION: 80/80/80/80(U/D/L/R @ CR>10)
* LCD DRIVE IC: ******
* POLARIZER MODE: TRANSMISSIVE/NEGATIVE
* OPERATING TEMP: -20°C~+70°C
* STORAGE TEMP:  -30°C~+80°C
* UNMARKER TOLERANCE: ±0.20
* FPC Number: 30
* Back light Type: White LED
* Life Time: 20000 Hr
* Luminace: 500cd/m2




5. Application

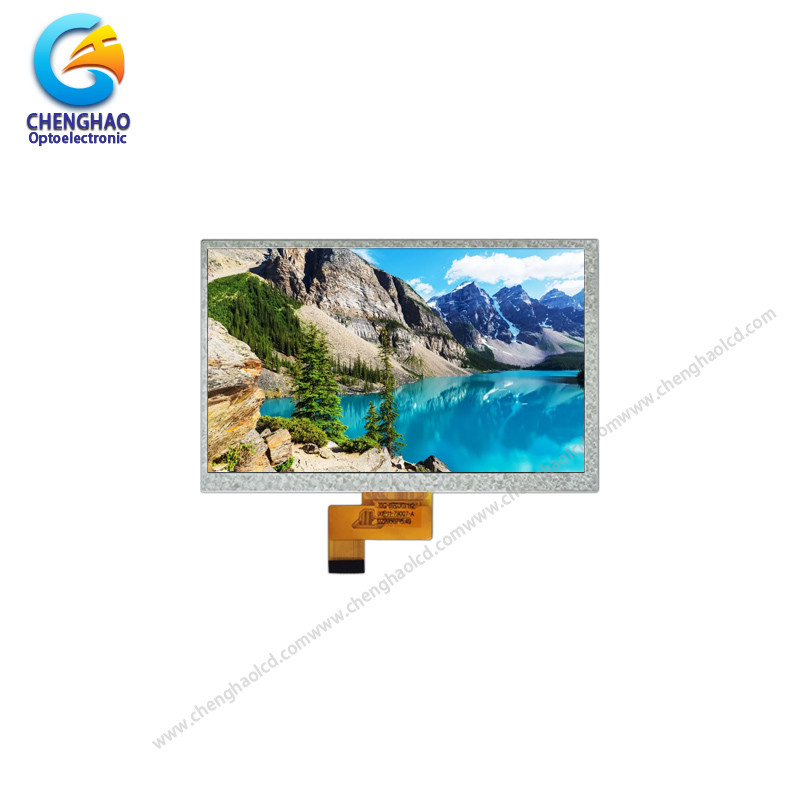

Sunlight Color LCD Display Module 7.0 Inch Wide Temp 4lane MIPI Interface 1





6. FAQ



Q1: Do you testing the products before shipment?

A: we tested every prodcuts quality before send out .

Q2: What is your payment methods ?

A: T/T,Paypal,West Union and so on .

Q3:What's the lead time?Sample order is available?

A: lead time : 7-15 working days. We don’t have MOQ, Sample order is ok.

Q4:Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings design , we can also build the molds.

Q5. What is your terms of packing?

A: Generally, we pack our goods in standard package , also if you have legally registered patent, we can pack the goods in your branded boxes.
