7.0 Inch TFT LCD Capacitive Touchscreen 800*480 Resolution Wide Temperature

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV03A-CTA

Detail Information

Product Name: 7.0 Inch TFT LCD Capacitive Touchscreen TFT/CTP Active Area: 154.08(W)×85.92(H)
TFT Dot Pitch: 0.1926 (W)×0.1790 (H) Interface: 24-bit Parallel RGB Interface
Operating Temperature: -20 ~ +70 ℃ Storage Temperature: -30~+80 ℃
High Light:

RoHS compliant LCD Capacitive Touchscreen

,

Tft Capacitive Touchscreen 7.0 Inch

,

CH700WV03A-CTA Capacitive Touchscreen

Product Description

7.0 Inch TFT LCD Capacitive Touchscreen 800*480 Resolution Wide Temperature



1. Specification of 800x480 capacitive touchscreen



Display Type TFT-LCD
Display model CH700WV03A-CTW
Pixel Configuration RGB Stripe
Display Resolution 800(RGB)×480
Aspect Ration 0.66
Contrast 500:1 (Typ.) (TM)
Overall Size
180(W)×119(H)×5.27(T) mm
Active Area (A.A)
154.08(W)×85.92(H)
Luminace 280 cd/m²
Viewing Direction 12 O’ clock





2. Description of 800x480 tft touchscreen



* 7.0 Inch TFT LCD Capacitive Touchscreen 800*480 Resolution Wide Temperature

* It is composed of a Touch panel, TFT LCD panel, driver IC, FPC, backlight.

* 7.0-inch color touchscreen display

* The 7 inch tft touch lcd module is 800(RGB)x480 resolution TFT LCD module, clear display

* FPC number is 40pin and can be customized, Customized content includes shape structure, interface definition, etc.

* RoHS & REACH compliant.

* Using 24-bit Parallel RGB Interface

* Provide a rich sample program

* Military-grade process standards, long-term stable work

* Provide underlying driver technical support

* Long term stable production and guaranteed supply

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.

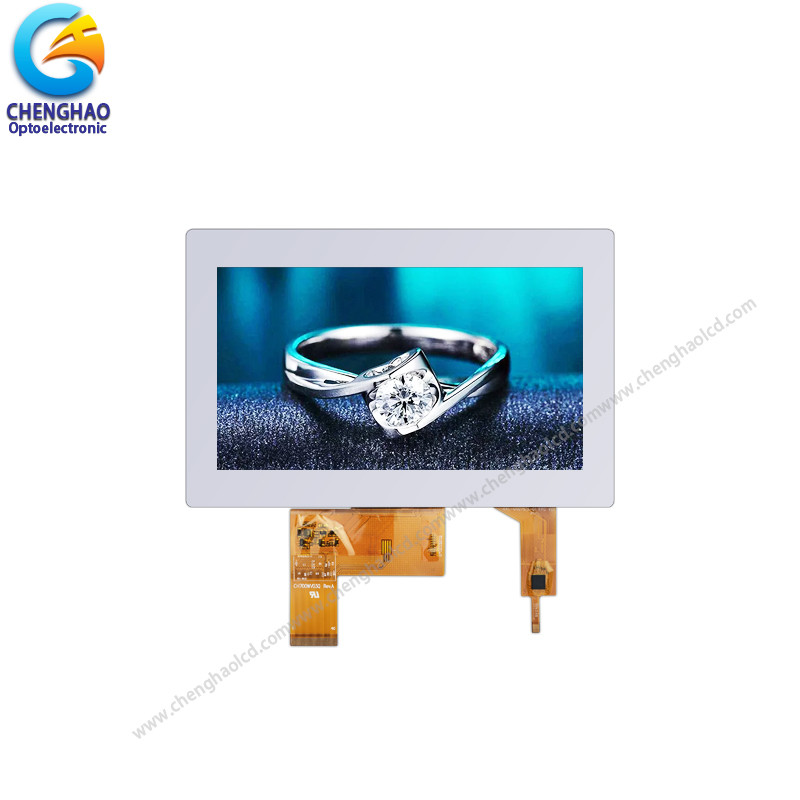

7.0 Inch TFT LCD Capacitive Touchscreen 800*480 Resolution Wide Temperature 0



3. Quick detail of 800x480 lcd touchscreen



LCM number : CH700WV03A-CTA
Resolution : 800× 3(RGB) × 480
Dot pitch : 0.1926 (W)×0.1790 (H) mm
Outline dimension : 180(W)×119(H)×5.27(T) mm

TFT/CTP Active area : 154.08(W)×85.92(H) mm

View angle| : 12:00
Pixel Arrangement : RGB-stripe
Surface Treatment : Plant
TFT Electrical Interface : 24-bit Parallel RGB Interface
Brightness : 280(cd/m2)
CTP driver IC : GT911
Contrast ratio : 500

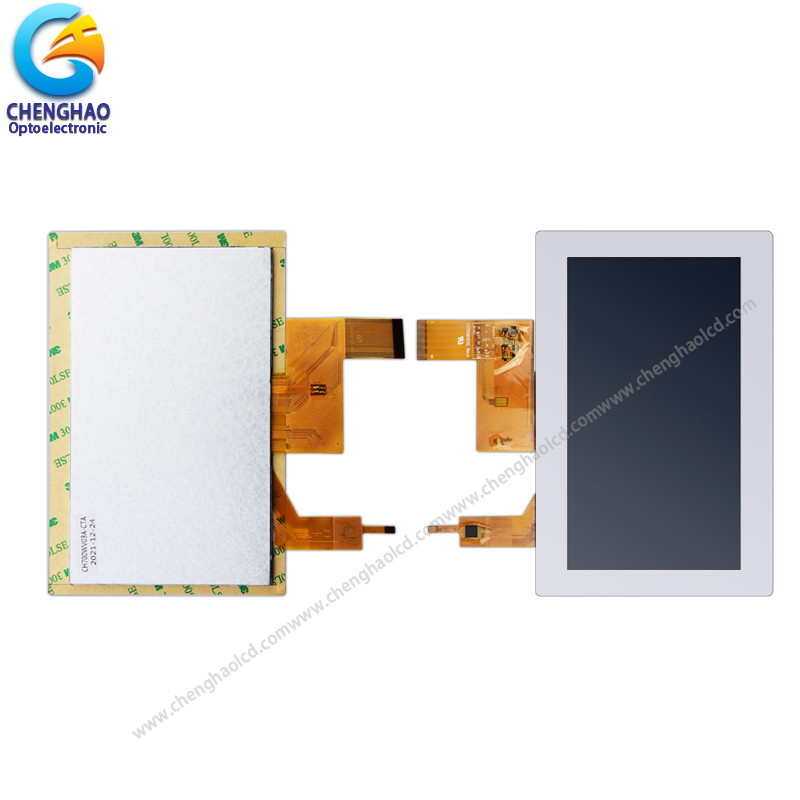

7.0 Inch TFT LCD Capacitive Touchscreen 800*480 Resolution Wide Temperature 1
Backlight Type : LED
Response time : ******(ms)
Display mode : Tn, Normally White, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 16.7M
Backlight lifetime : 20k hrs(Min.)
With/without Touch Panel:Without
Touch Panel Type:*****





4. Application of wide temp lcd touchscreen



Products are widely used in general communications, household appliances, industrial control, medical equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial electronics, communication electronics, consumer electronics, information appliances, culture, education, sports and entertainment, etc. field. Such as attendance machine,fingerprint device, access control machine, stock machine, walkie-talkie, video doorbell, learning machine, point reading machine,GPS navigator, and so on .



7.0 Inch TFT LCD Capacitive Touchscreen 800*480 Resolution Wide Temperature 2
