3.5in Colour Lcd Display Module 320*480 Resolution With 50pin FPC

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350HV16A

Detail Information

Product Name: 3.5in Colour Lcd Display Module Storage Temperature: -30 ~ +80 ℃
Back Light: 6 White LED In Serial Weight: TBD
Luminous Intensity For LCM: 300 Cd/m2 Life Time: 20000 HR
Backlight Color: White
High Light:

50pin FPC Tft Lcd Display

,

320x480 Resolution Lcd Screen Module

,

REACH compliant Tft Lcd Display

Product Description

3.5in Colour Lcd Display Module 320*480 Resolution With 50pin FPC



1. Specification of 3.5 inch tft lcd screen


Brand Chenghao --
Size 3.5 inch
Resolution 320*480  dots
Pixel pitch
0.153(W)×0.153(H)
mm
Display Mode TN/NW -
Viewing Direction 6 o'clock
Interface SPI/MCU/RGB/MIPI --
Luminance 300 cd/m2



2. Description of 320x480 tft lcd screen


Chenghao is a professional TFT (Thin Film Transistor) module manufacturer. There are different models of our TFT active matrix display with various features. Whether you need TFT display with control board, high brightness, wide viewing angle, monochrome, bar type, we have some options for you to choose from. We also offer customization service of backlight and FPC. The available diagonal sizes of our standard TFT display modules are 1.1", 1.44" 1.47", 1.5” ,1.54”,1.77”,2.0”,2.1”,2.2”,2.31”,2.4”,2.8", 3.2”,3.5", 3.9”,3.95”, 3.97",4.0”, 4.3", 5.0", 5.5", 5.6", 6.86”,7.0", 8.0", 9.0",10.1".

* CH350HV16A is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 320x480 resolution TFT LCD module.

* Backlight with different brightness options from 100 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

3. Drawings of  spi tft lcd screen
Notes:
(1) Display Type : 3.5 inch Tn TFT
(2) Viewing Direction :  6:00
(3) Polarizer Mode : Transmissive / Positive
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

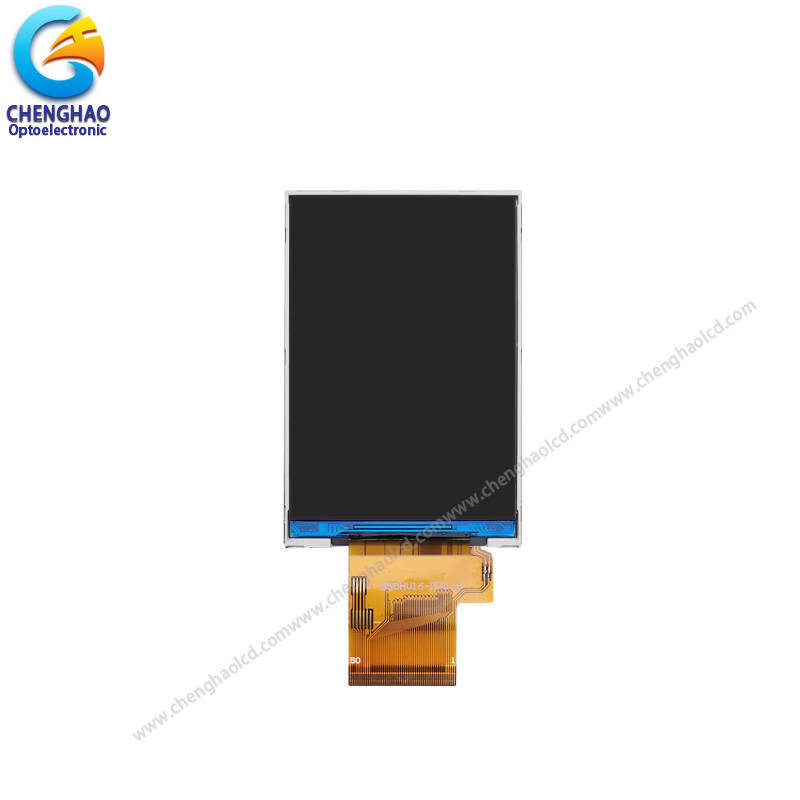

 3.5in Colour Lcd Display Module 320*480 Resolution With 50pin FPC 0

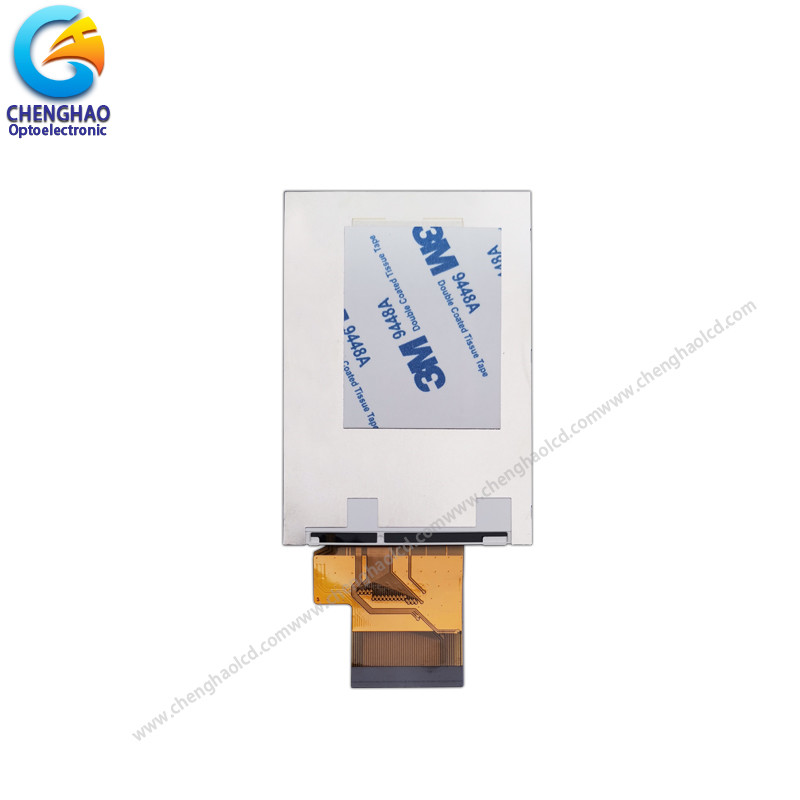

3.5in Colour Lcd Display Module 320*480 Resolution With 50pin FPC 1

4. Quick Detail of mcu tft lcd screen


LCD type : 3.5" TFT
Dot arrangement : 320(RGB)*480 dots
Color filter array : RGB vertical stripe
Display mode :  TN/ Transmission/ Normally White
Viewing Direction :  6o’clock
Module size : 55.66(W)×85.04(H)×2.4(T) mm
Active area: 48.96(W)×73.44(H) mm
Interface TFT:
4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit8080-series system interface
16-/18-bitRGB interface
MIPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light:
6White LEDin serial
Weight: TBD g


5. Application of mipi tft lcd screen

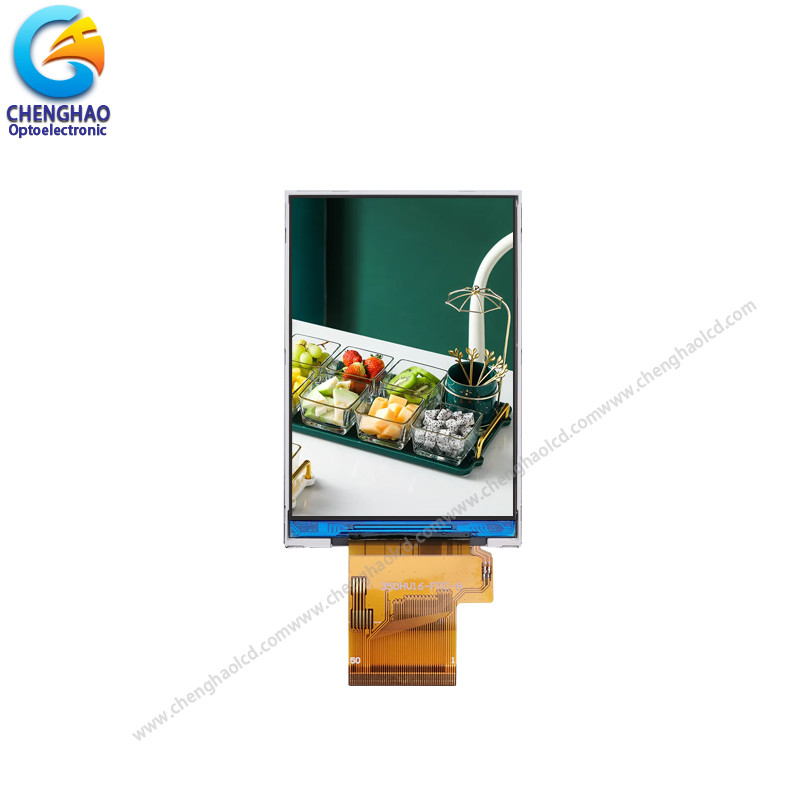

 3.5in Colour Lcd Display Module 320*480 Resolution With 50pin FPC 2


6. FAQ



1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(33.00%),North America(20.00%),Western
Europe(19.00%),Eastern Europe(10.00%),Southeast Asia(7.00%),Northern Europe(5.00%),Eastern Asia(3.00%),South
Asia(2.00%),Oceania(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sensor Module,Display Module,Power Module,Wireless Module,PCB.
