480x854 IPS LCD Module ST7701S 4.5 Inch Tft Screen With 25 Pin FPC

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH450FW02A

Detail Information

Product Name: 480x854 IPS LCD Module DISPLAY TYPE: 4.5" TFT
VIEWING DIRECTION: 80/80/80/80(U/D/L/R @ CR>10) LCD DRIVE IC: ST7701S
POLARIZER MODE: TRANSMISSIVE/ NEGATIVE OPERATING TEMP: -20°C~+70°C
STORAGE TEMP: -30°C~+80°C
High Light:

480x854 IPS LCD Module

,

ST7701S IPS LCD Module

,

FPC 4.5 inch tft screen

Product Description

480x854 IPS LCD Module ST7701S 4.5 inch tft screen with 25 pin FPC



1. Specification of 4.5 inch color tft lcd module



Module number CH450FW02A
Resolution 480(RGB)*854 dots
Active Area 55.44*98.64 mm
View angle 80/80/80/80
Pixel Arrangement RGB-stripe
Surface Treatment Plant
Electrical Interface mipi





2. Description of 480x854 tft lcd module



chenghao is a color LCD display manufacturer, providing wholesale customization services to global display users. CH450FW02A is a color tft display module standard product from chenghao company, which mainly includes an IPS TFT LCD Panel, a driver IC, an iron frame, a backlight and an FPC.

(1) The Lcd Panel has a 4.5 inch active display area with 480x854 dots Resolution.

(2) ST7701S is used as the driver IC of The Tft Screen Module, which is mounted on the glass and interconnected with other components through FPC. By inputting RGB signals to the driver IC, the screen display can display 16M colors.

(3) The Back Light (BL) has 10 parallel wihte LEDs. When VF=15V/IF=40mA is input to BL, the lcd panel can produce a luminance of 450 cd/m2.

(4) The FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings of 4.5 inch lcd display

Notes:
(1) Display Type : 4.5" IPS TFT
(2) Viewing Direction : 80/80/80/80
(3) Polarizer Mode : Transmissive / Negative
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

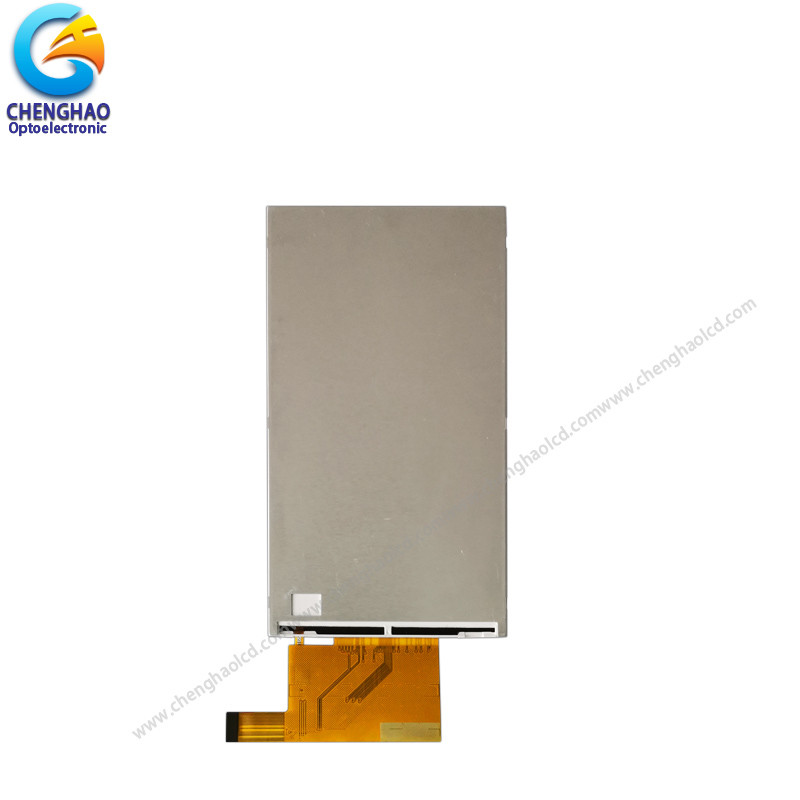

480x854 IPS LCD Module ST7701S 4.5 Inch Tft Screen With 25 Pin FPC 0

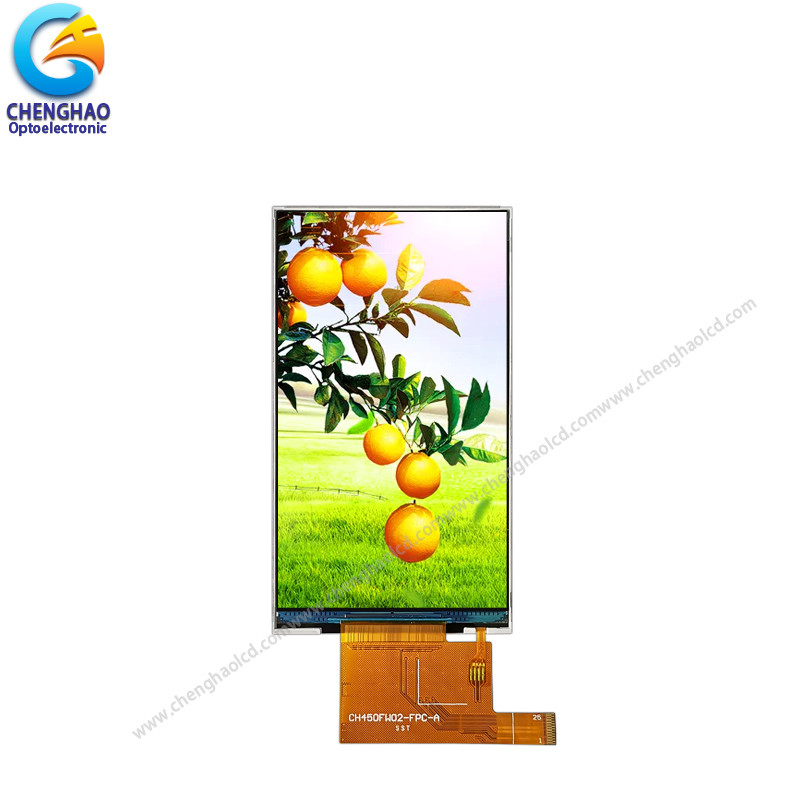

480x854 IPS LCD Module ST7701S 4.5 Inch Tft Screen With 25 Pin FPC 1



4. Quick Detail of 480x854 lcd display module



* LCD name: 480x854 IPS LCD Module ST7701S 4.5 inch tft screen with 25 pin FPC
* Part No.: CH450FW02A
* With touch panel or not: no
* Touch type: capacitive / resistive touch panel
* Display type:  4.5" IPS TFT
* Display colors: 16 M

* Resolution (pixels): 480(RGB)*854
* Viewing direction: 80/80/80/80
* Display mode: IPS / Transmissive / Normally Black
* Module size: 60x109x2 mm
* Active Area: 55.44x98.64 mm
* Luminance:  450  cd/m2
* Contrast: 800:1
* Interface type: mipi
* Pin NO.:  25 pin
* Backlight type and color: LED backlight/white
  Backlight:  10 pcs LED parallel
* LED Life span: 20000h




5. Application of 480x854 lcd display



480x854 IPS LCD Module ST7701S 4.5 Inch Tft Screen With 25 Pin FPC 2







6.Why Choose Us ?



The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.
(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.
(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;
(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.
(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy viewing by customers;
