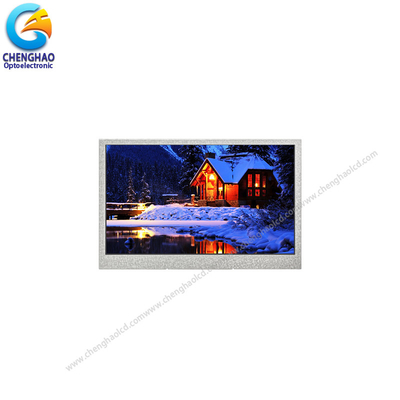

4.3 Inch Sunlight Readable Display 480X272 Resolution Color LCD Display Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WQ12E-PA

Detail Information

Product Name: 4.3 Inch Sunlight Readable Display LCD Type: 4.3 Inch TFT+PCB
Dot Arrangement: 480x272 Color Filter Array: RGB Vertical Stripe
Luminous Intensity For LCM: 1000(typ.) Nit Viewing Direction: 80/80/80/80
Interface: Digital 8080 Series MPU 8bit/16bit
High Light:

4.3 inch sunlight readable display

,

480X272 sunlight readable display

,

sunlight readable Color LCD Display Module

Product Description

4.3 Inch Sunlight Readable Display 480*272 Resolution Color Lcd Display Module



1. Specification of 4.3 inch lcd screen display



Module number CH430WQ12E-PA
Resolution 480*272 dot
Active Area
95.04×53.856 mm
View angle 80/80/80/80
Operating temperature
-20 ~ +70
Surface Treatment Plant
Electrical Interface MPU





2. Description of 480x272 lcd screen display



chenghao is an LCD display supplier, providing professional one-stop solutions and product services for global display users. CH430WQ12E-PA is a color IPS TFT LCD module produced by chenghao company, which mainly includes a PCB driver board, an IPS TFT LCD Panel, a driver IC, an iron frame, a backlight and FPC, etc.

(1) The Ips Tft Lcd Panel has a 4.3-inch active display area with480*272 dots Resolution.

(2) The driver IC is SSD1963 mounted on glass, which is interconnected with other components through FPC. By inputting RGB signals to the IC, this color LCD screen can display 16M colors.

(3) The Back Light (BL) can produce a luminance of 1000 cd/m2, which makes the Tft Lcd Module readable in sunlight.

(4) The FPC can be redesigned according to customer requirements, including the shape, structure, interface definition, etc. of the FPC.

In addition, we also have rich experience in integrating lcd modules into display devices with cover plates. If CH430WQ12E-PA does not meet your project needs, we can provide you with custom mold opening services, please contact us!



3. Drawings of 4.3 inch lcd screen module

Notes:
(1) Display Type : 4.3-inch tft
(2) Viewing Direction : All Viewing Angle
(3) Polarizer Mode : Transmissive / Negative
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS



4.3 Inch Sunlight Readable Display 480X272 Resolution Color LCD Display Module 0













4.3 Inch Sunlight Readable Display 480X272 Resolution Color LCD Display Module 1



4. Quick Detail of 4.3 inch display ips tft



* LCD name: 4.3 inch sunlight readable display 480*272 Resolution Color Lcd Display Module
* Part No.: CH430WQ12E-PA
* Size.: 4.3 inch
* With touch panel or not: No
* Support Touch type: CTP/RTP
* Display type:  4.3 inch IPS TFT
* Display colors: 16.7 M
* Resolution (pixels): 480x272 dots
* Viewing direction: 80/80/80/80
* Display mode: IPS / Transmission / Normally Black
* Module size: 105.5(W)×67.2(H)×6.8(T) mm
* Active Area: 95.04(W)×53.856(H) mm
* Luminance:  1000 cd/m2
* Contrast: 800:1
* Interface type: MPU
* LED Life span: 20000h




5. Application of 480x272 tft lcd display



4.3 Inch Sunlight Readable Display 480X272 Resolution Color LCD Display Module 2







6. Our Service



Shipping Policy:
1- Regularly, we shipped via Fedex/Dhl/UPS , express way (2-7 working days arrival), suitable for small order.
2- Sea shipping way, (25-40 days arrival), low cost, port to port, usually for large quantity order.

Custom/OEM:
Custom service is ok.

Sample Policy:
1- Usually we offer random sample for free but with your sample shipping freight charge paid.
2- We offer 1-2 pcs each sample randomly, if for more pcs, we will try send to you, if not and you must

request more pcs, we will charge same sample fees for make more pcs samples to you.

Easy order process:
Please kindly confirm us about product name, images, colors and quantity before you make the order .
