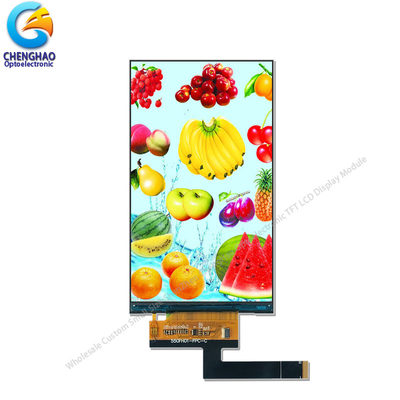

LTPS LCD Display Module 1080X1920 Pxiel 4 Lane MIPI 31 Pin TFT LCD Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH550FH01A

Detail Information

Product Name: LTPS Display Module Outline: 70.78(W)×129.17(H)×1.7(T) Mm
View Area: 68.44(W)×121.36(H) Mm Active Area: 68.04(W)×120.96(H) Mm
Dot Pitch: 63(W)×63(H) Um Interface: 4lane MIPI
Weight: Tbd
High Light:

LCD Display Module 1080X1920 Pxiel

,

LTPS LCD Display Module

,

4lane MIPI Tft lcd Display

Product Description



5.5" Ltps Display Module 1080*1920 Pxiel 4 lane mipi 31 Pin Tft lcd



1. Specification of Tft Lcd display screen module



Display Type TFT-LCD
Display model CH550FH01A
Pixel Configuration RGB Stripe
Display Resolution 1080*1920 dot
Contrast  800:1 (Typ.) (TM)
Overall Size
70.78(W)×129.17(H)×1.7(T)  mm
View Area (A.A)
68.44(W)×121.36(H) mm
Luminace 700 cd/m2
Viewing Direction 80/80/80/80
Interface 4 lane MIPI





2. Description  of  thin film transistor monitor



CH550FH01A is a color TFT (thin film transistor) LCD (liquid crystal display) Module that uses amorphous silicon TFT as a switching device. It contains a LTPS tft lcd Panel, a control IC, a backlight and an FPC.

The HX8399C mounted on glass is used as the driver IC for this module and is interconnected with other display components via FPC.

14 Pcs White LEDs are used as backlight components to provide 700 NIt Luminance, making this module sunlight readable.

FPC can be re-customized according to customer requirements, including shape structure, interface definition, etc.

In addition, we also have rich experience in integrating touch Screen Display Module into components with cover plate, CH550FH01A can install touch panel according to customer requirements.





3. Drawings of Sunlight Readable LCD Display



Notes:
(1) Display Type : 5.5 inch Tft
(2) Viewing Direction : ALL
(3) Lcd Drive IC : HX8399C
(4) Polarizer Mode : LTPS / Transmissive / Normally Black
(5) Operating Temp : -20 ~ +70 ℃
(6) Storage Temp : -30 ~ +80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



LTPS LCD Display Module 1080X1920 Pxiel 4 Lane MIPI 31 Pin TFT LCD Display 0





4. Quick Detail of 5.5 inch lcd module



* LCM name: 5.5" Ltps Display Module 1080*1920 Pxiel 4 lane mipi 31 Pin Tft lcd
* Model: CH550FH01A
* Lcm Size.: 5.5"
* With touch panel or not: No
* Support Touch type: CTP / RTP
* Display Type: 5.5 inch TFT
* Display colors: 16M
* Number of Dots: 1080*1920 dot
* Viewing Angle: All
* Driver IC: HX8399C
* Display mode: LTPS / Transmissive / Normally Black
* Module size: 7.078(W)×12.917(H)×0.17(T) cm

* Viewing area: 6.844(W)×12.136(H) cm

* TFT Active Area: 6.804(W)×12.096(H) cm

* Luminance: 700 nit
* Contrast: 800:1
* Support Interface Type: 4 line MIPI
* Pin Number: 31pins
* Backlight type and color: LED backlight / white
Backlight: 14 LED


5. Application of thin film transistor lcd



LTPS LCD Display Module 1080X1920 Pxiel 4 Lane MIPI 31 Pin TFT LCD Display 1




6. Why Choose Us ?



1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.
