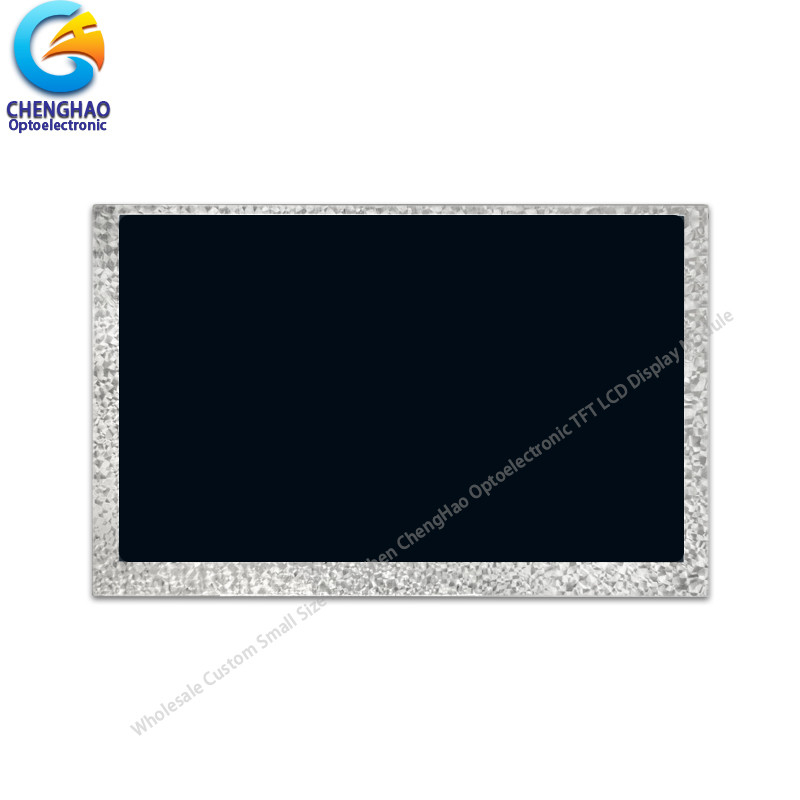

800x480 Dots Positive LCD Display 5 Inch LCD Screen Module With RGB Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500WV03A

Detail Information

Product Name: Positive Lcd Display Module Size: 120.7(W)×75.8(H)×3.0(T) Mm
Active Area: 108(W)×64.8(H) Mm Dot Pitch: 0.135(W)×0.135(H) Mm
Interface: RGB Operating Temperature: -20 ~ +70 ℃
Storage Temperature: -30 ~ +80 ℃
High Light:

RGB Interface Positive Lcd Display


800x480 Dots Positive Lcd Display


Positive 5Inch lcd screen module

Product Description

Positive Lcd Display 800x480 5 Inch Lcd Screen Module With Rgb Interface


1. Specification of rgb lcd monitor


Module Name CH500WV03A
Display type 5.0" Tft Lcd
Backlight tube 12 White LED In Serial
Brightness (cd/m²) 300
Backlight life (h) 30,000
Contrast 500:1
Viewing angle ( L/R/T/B) 12:00


2. Description of rgb lcd display


CH500WV03A is a 5 inch color Tft Lcd Module with 800*480 dots Resolution, including a tft lcd panel, a control IC, a backlight and an FPC. 12 pcs white LED is used as the backlight component of this lcd module, providing 300 cd/m2 Luminance for the display. The control IC is mounted on the glass and interconnected with other display components through the FPC. By inputting the RGB model to the control IC, the lcd Display module can display 16M colors. FPC can be modified and customized according to customer needs, including shape structure, interface definition, etc.

In addition, we also have rich experience in integrating touch screen Display Module into project components with covers. If your project needs to use touch technology, we can provide you with a suitable touch display solution for you.

RoHS Compliance & Halogen Free.



3. Drawings of tft monitor screen


(1) Display Type : 5.0 inch Tft
(2) Viewing Direction : 12:00
(3) Polarizer Mode : Transmission / Positive
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS


800x480 Dots Positive LCD Display 5 Inch LCD Screen Module With RGB Interface 0



4. Application of 5 inch tft display


800x480 Dots Positive LCD Display 5 Inch LCD Screen Module With RGB Interface 1




5. Our Service


1. We provide a one-year product warranty service.
2. The professional after-sales team is online 24 hours a day to answer your questions at any time.
3. Experienced engineers are ready to provide you with remote online support.
4. Our factory implements strict ISO9001 quality management system, all our products can provide European CE, ROHS certification.
5. Your satisfaction is the greatest support for us, if you are interested in our products, please contact us, we will reply you in the shortest time.
