480X480 Square LCD Display 3.95 Inch Negative Lcd Display Module With ST7701

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV19A

Detail Information

Product Name: Negative Lcd Display Resolution: 480*480 Dots
Display Mode: IPS/Normally Black Outline Dimension: 74.83(W)*78.98(H)*1.98(T) Mm
Display Area: 71.856(W)*70.176(H) Mm Luminace: 350 Cd/m2
Interface: SPI + RGB
High Light:

480X480 Square LCD Display

,

Negative Square LCD Display

,

3.95 Inch Negative Lcd Display Module

Product Description

480*480 Square Display 3.95 Inch Negative Lcd Display With ST7701



1. Specification of  Tft Lcd Monitor





Part No.

CH400WV19A

Size 3.95 inch
Resolution 480*480 dots
Outline Dimension 74.83(W)*78.98(H)*1.98(T)mm
Active Area 71.856(W)*70.176(H)mm
Working temperature -20°C ~ 70°C
Storage temperature -20°C ~ 70°C
Delivery Time 10 days



2. Description of Tft Lcd Screen



ChengHao Display model CH400WV19A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

This Tft Screen Module has a 3.95 (Square screen) inch diagonally measured active display area with 480*480 Resolution . At the same time, the whole module adopts SPI+RGB two communication interfaces, which supports a variety of connection methods. ST7701 is Used as the driver IC of this module, the TFT display can display 16.7M/262K/65K colors by inputting RGB signals to the Driver IC. The backlight unit contains 8 pcs While LED, which can make the backlight brightness of Tft Screen Module reach 350 cd/m2.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings of Tft Display Module



Notes:
(1) Display Type : 3.95"TFT
(2) Viewing Direction : all
(3) Lcd Drive IC : ST7701s
(4) Polarizer Mode : IPS/ Transmission / Normally Blcak
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

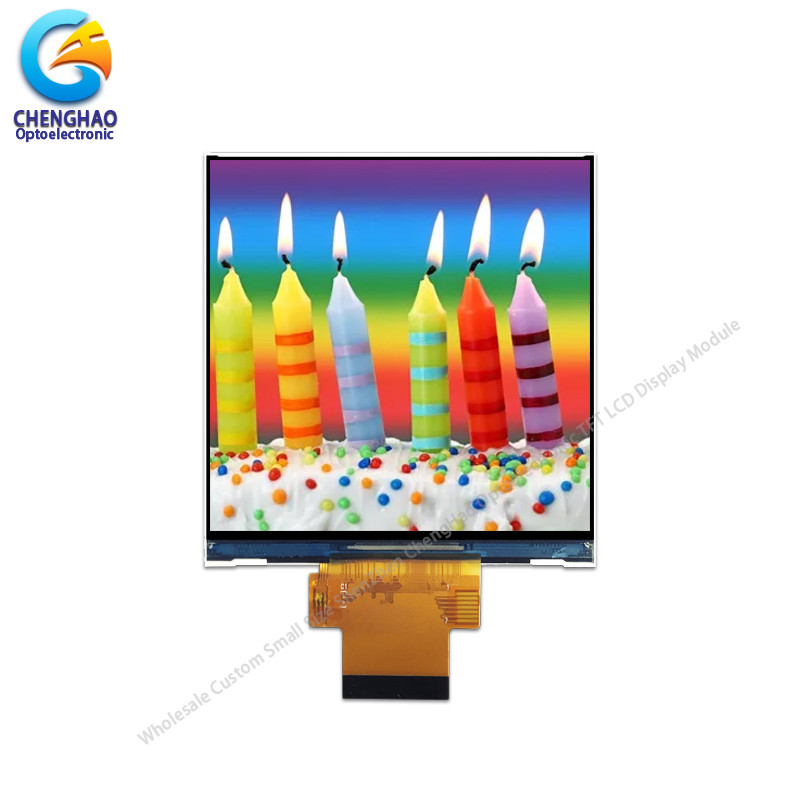

480X480 Square LCD Display 3.95 Inch Negative Lcd Display Module With ST7701 0

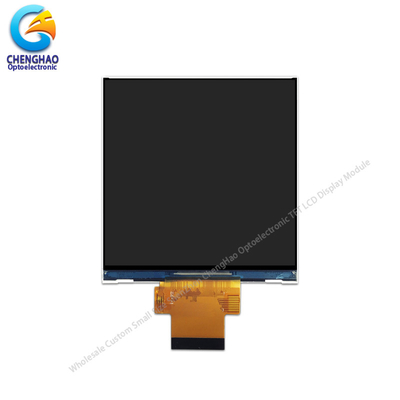

480X480 Square LCD Display 3.95 Inch Negative Lcd Display Module With ST7701 1



4. Quick Detail of Tft Display Module



* LCD name: 480*480 Square Display 3.95 Inch Negative Lcd Display With ST7701
* Part No.: CH400WV19A
* Size.: 3.95"

* With or without touch panel: No
* Support Touch Panel type: Capacitive or Resistive Touch Panel
* Display type: 3.95 inch TFT

* Color filter array: RGB vertical stripe
* Display colors: 65K / 262K /16.7M (optional)
* Resolution (pixels): 480*480
* Viewing direction: All
* Controller IC: ST7701
* Display mode: IPS / Transmission / Normally Black
* Overall size: 74.83*78.98*1.98 mm
* Active Area: 71.856*70.176 mm
* Luminance: 350 cd/m2
* Contrast: 800:1
* Interface type: SPI+RGB
* Pin NO.: 40
* Pin pitch: 0.35 mm
* Connecting type: Connector
* Backlight type : 8 White LED In Parallel
* LED Life span: 20000h

* Weight: TBD g

* Operating Temperature : -20~ +70 ℃

* Storage Temperature : -30~ +80 ℃






5. Application of  TFT SPI Display
